| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | galzed tile machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD13000-USD18000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Capacity: | 3-5m/min | Usage: | Construction |
|---|---|---|---|
| Main Frame: | 350H Steel | Shaft Material: | High Grade No.45 Forged |
| Warranty: | 12 Months,and Life Long Tracking Service | Dimension(l*w*h): | 5000*800*1200mm |
| Control System: | PLC Delta | Cutting Type: | Hydraulic Cutting |
| Profile: | Glazed Tile Roll Forming Machine | Weight: | 4.5tons |
| High Light: | 5m/Min Steel Tile Roll Forming Machine,Steel Tile Roll Forming Machine 235Mpa,3m/Min steel tile forming machine |
||
Steel automatic glazed tile roll forming machine roof sheet wall panel
1. Description of glazed tile roll forming machine:
This machine is convenient transportation, the finisehd sheet is beautifull,you can produce different varieties, specifications color steel roof tile, the user can easily select the products according to the market demand and avoid the market risks due to the single product.
Our factory is manufacturing high quality glazed tile roll forming machine, and regularly exported to South Africa, Zambia, Rwanda, Dubai, Poland, Saudi Arabia, Israel, Philippines, Thailand, Canada
2. Technical details of glazed tile machine:
| Machine Specifications | |
| Weight | About 4.5tons |
| Size | About 5000*800*1200mm(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 15 stations |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 3-5m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of glazed tile roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
About the company:
1. Our company has 25 years of production experience, which can guarantee the quality of the machine
2. Our company has 5 warehouses, which store raw materials separately, and will not delay delivery
3. Our company has professional after-sales service. If you don't know anything about the machine, you can find our after-sales service at any time.
About the machine:
1.CNC machine to produce the machine rollers, which can guarantee the quality of the machine wheels
2. The large frame is produced by our company and will not be deformed
3.Chain use 1.5 inch
6. Application
This machine is widely used in the production of the roof sheet and wall sheet and others.

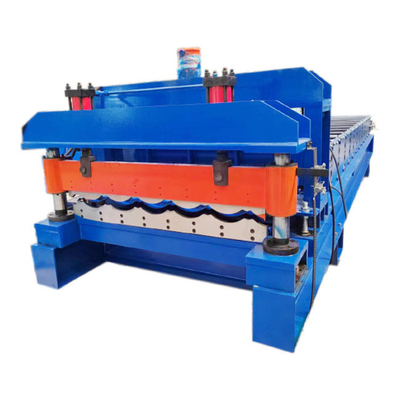

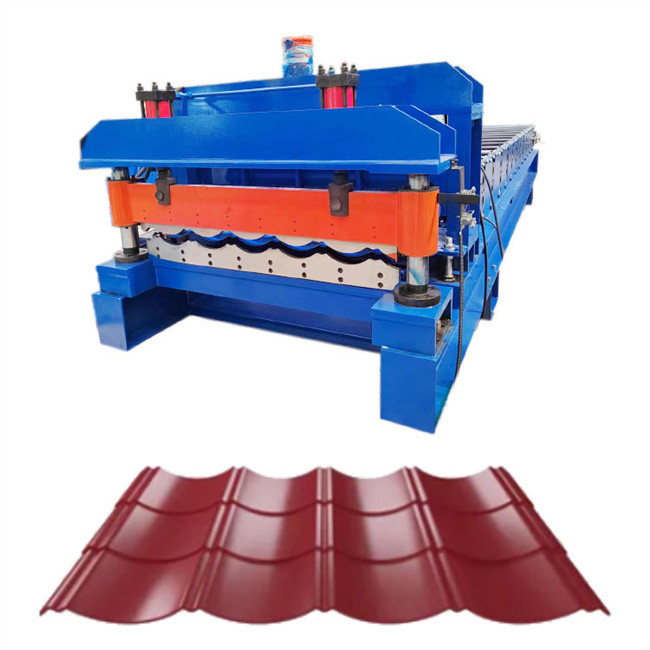

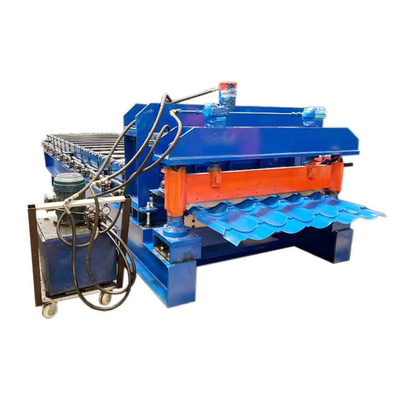

7. Product photo
8. FAQ
Q:Can you customized our profile?
A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q:What is your payment terms?
A:30% as the deposit by T/T in advance,70% T/T as balance after you inspect the machine before shipping.
We also accept 100% L/C at sight
We can accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you.
Q:When will you delivery thye machine after i place the order?
A: After we get down payment,we will arrange production.About 30-45 days for delivery.
Q:What will you do if the machine broken?
A:We provide 12 nonths free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair,we can send the new parts replace the broken parts freely.If it is beyond the warranty period,we can negotiable to solve theproblem,and we supply the technical support for the whole life of the machine
