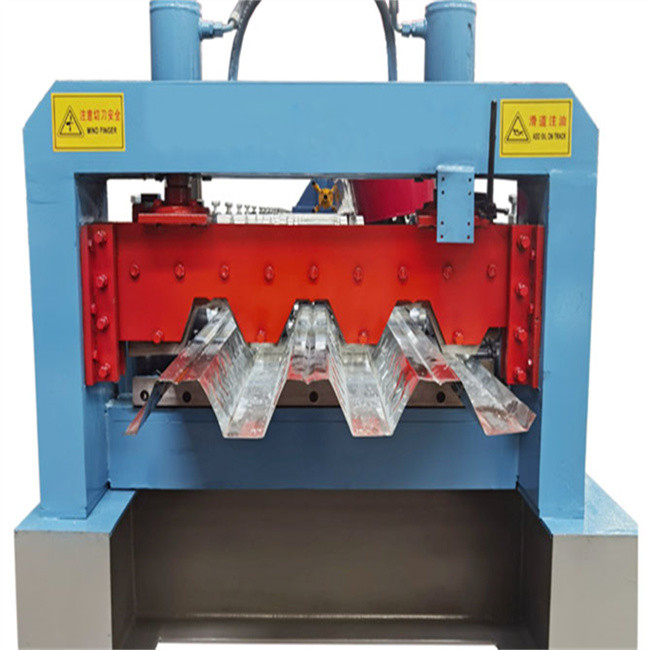

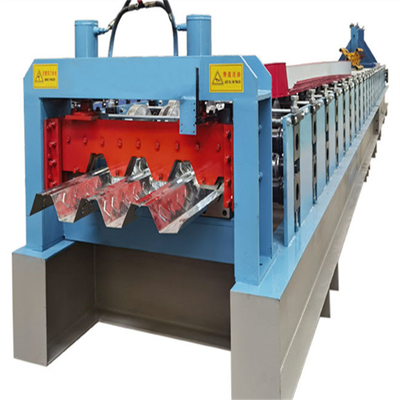

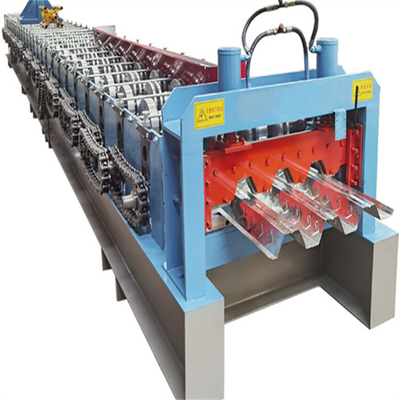

5kw Floor Deck Forming Machine For Roof Construction Material

5kw Floor Deck Forming Machine For Roof Construction Material

  • 5kw Floor Deck Forming Machine For Roof Construction Material
  • 5kw Floor Deck Forming Machine For Roof Construction Material
  • 5kw Floor Deck Forming Machine For Roof Construction Material
5kw Floor Deck Forming Machine For Roof Construction Material
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: floor deck roll forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD13000-USD18000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Floor Decking Forming Machine After-sales Service Provided: Onlin And Oversea
Cutting Type: Hydraulic System Cutting Blade Material: Cr12 Quenched
Shaft Material: High Grade No.45 Forged Warranty: 1 Year
Control Type: PLC System Machine Weight: 8 Tons
High Light:

5kw Floor Deck Forming Machine

,

Roof Construction Floor Deck Forming Machine

Color steel Automatically floor decking roll forming machine used for roof Construction Material





1. Description of floor decking roll forming machine:



. The floor deck machine rollers are processed by CNC machine ensure the accuracy of the rollers, and the finished floor deck sheet.

. Our cutting blade frame is good quality and we ensure not deformed during long-term production and makes the final product smooth.



Our factory is manufacturing high quality floor decking roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.







2. Technical details of floor decking roll forming machinery:



floor decking roll forming Machine Specifications
Weight About 8tons
Size About 8mx1.2mx1.3m(length x width x height)
Color Machine Main color: blue or can as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils,color steel
Thickness 0.8-1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 19stations
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement







3. Main components of floor decking roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5kw Floor Deck Forming Machine For Roof Construction Material 0





5. Advantages



  • Our factory have 5 engineers with more than 20 years experience
  • We have 30 professional technician
  • we have 20 sets advanced CNC production lines to produce the machine rollers
  • We have professional designers and professional training,and have  professional equipment, in this case we can provide professional machines.
  • We are very rigorous in every tiny detail,including raw material and making machines.

6. Application



This machine is widely used in the production of the roof and floor systems.



7. Product photo



5kw Floor Deck Forming Machine For Roof Construction Material 1





FAQ



Q2. Do you have after-sales support?

A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.







Q3. Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand components.





Welcome to inquiry.
