Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | Shutter door machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD7000-USD11500 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 30-40 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 SETS PER MONTH |
Product Name: | SHUTTER ROLL FORMING MACHINE ROLLING SHUTTER STRIP MAKING MACHINE | Voltage: | 380V 50Hz 3phases Or As Requrired |
---|---|---|---|
Condition: | New | Cutting Blade Material: | Cr12MOV Quenched |
Cutting: | Hydraulic Cutting | Name: | Galvanized Metal Sheet Roller Shutter Door Frame Roll Forming Machine |
Shaft Material: | High Grade No.45 Forged | Power(w): | 4 KW+3KW |
Warranty: | 15 Months,and Life Long Tracking Service | Dimension(l*w*h): | 4800*800*1200Mm |
Control System: | PLC Control System(brand As Requirement) | Tile Type: | Steel GALVANIZED |
Weight: | 2800KGS | ||
High Light: | Cr12MOV Rolling Shutter Strip Making Machine,Rolling Shutter Strip Making Machine Steel |
SHUTTER ROLL FORMING MACHINE ROLLING SHUTTER STRIP MAKING MACHINE
1. Description of SHUTTER ROLL FORMING MACHINE ROLLING SHUTTER STRIP MAKING MACHINE
We major in various steel roll forming machines for roofing, cu omega furring channel, cap, C/Z purlin, LGS FRAMING MACHINE. Floor deck etc.
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
For the rolling shutter strip making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.5-0.8mm and 0.8-1.5mm, the shutter door profile will be design by your demand.
We have shutter door machine with hydraulic cuting and flying saw cutting, two types. Tell me your requirement. let me help you better.
2. Technical details of SHUTTER ROLL FORMING MACHINE ROLLING SHUTTER STRIP MAKING MACHINE
SHUTTER ROLL FORMING MACHINE ROLLING SHUTTER STRIP MAKING MACHINE Specifications | |
Weight | About 2.5tons |
Size | About 4.8mx1.2mx1.3m(length x width x height) |
Color | Main color: blue or as your requirement |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.5-0.8mm or 0.8-1.5mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 11-12 steps |
Diameter of forming rollers shafts | 60mm |
Roll Forming Speed | 15-20m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 4kw |
Hydraulic unit motor power: 3kw | |
Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the door shutters.

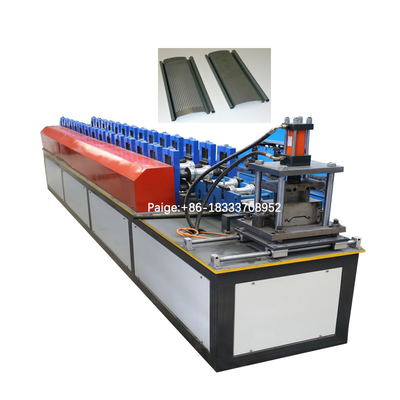

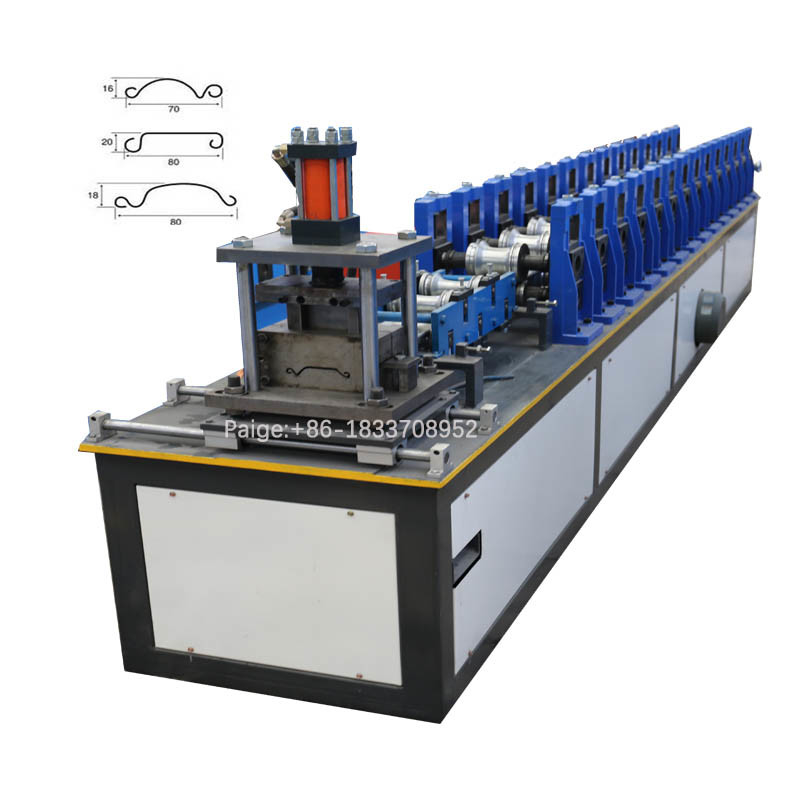

7. Product photo
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Contact Person: Audrey Xing
Tel: +86 15530763231
