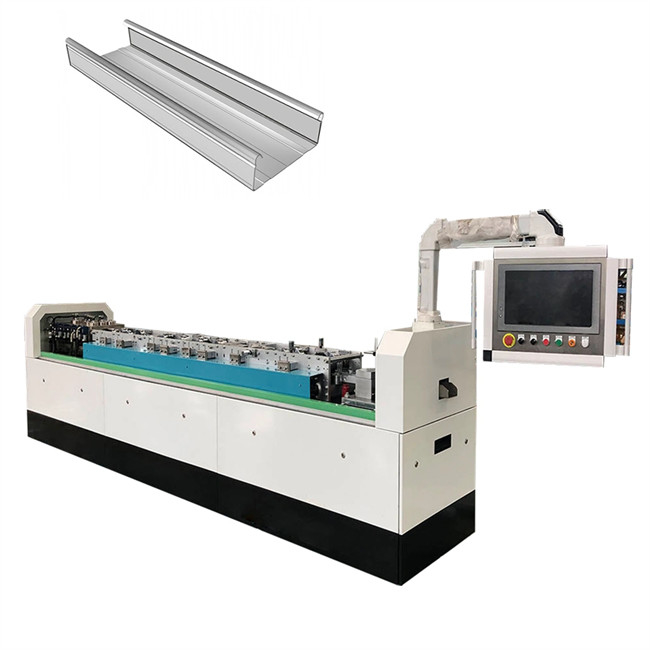

High Speed Prefab House Villa Construction Light Gauge Steel Framing Machine With Vertex BD

High Speed Prefab House Villa Construction Light Gauge Steel Framing Machine With Vertex BD

1. Description Of light gauge steel framing Machine

The popular type C89 C140 LGS Machine Light Gauge Machine with Vertex BD can meets the manufacture need of all frame keels of low-rise single family or conjoined building frames (including walls, floor Beams and roof trusses) with one click.
The frame keel system manufactured by it can be compatible with the existing brick-concrete structure, wood building and heavy steels structure. Light keel steel villa machine not only can be produced in your factory, but also can be produced in one container and transported to a remote construction site for onsite production.

VERTEX BD house design software
1. The wall, floor and roof structure is produced automatically, saving design time.
2. Automatic 3D molding, insure 100% accuracy.
3. With analysis project function, the software can calculate bearing capacity.
4. Create frame work 3D map and 3D decoration view.
5. The whole building frame can be resolve to independent unit drawing.
6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7. Create the processed data including the marked work piece, docking with the equipment.
8. Software maintenance and training fee.

2. Technical Details Of light gauge steel framing Machine

3. Main Components Of light gauge steel framing Machine

4. Production Flows Of LIGHT GAUGE STEEL FRAMING Machine

Uncoiling the sheet--Punching -Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages Of light gauge steel framing Machine

· More than 10 engineers and More than 10 designers with more than 10 years experience

· We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.

· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.

· Our machine adopts Taiwan Delta brand PLC control and touch screen, more durable and low failure rate.

· We more carefully to deal with the details. our rollers and shafts, we process 3 times.

6. Application Of The light gauge steel framing Machine

This machine is widely used in the production of the metal roof sheets and wall panel.villa,. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

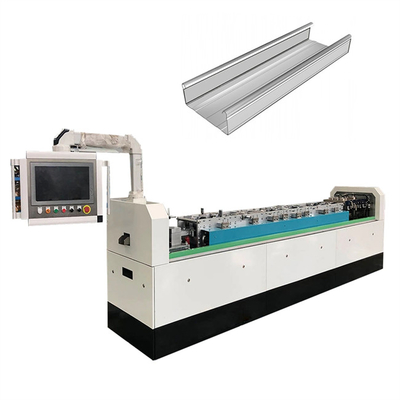

7. Product photos Our light gauge steel framing

FAQ

Q: What is your payment terms?
A: We accept 30% T/T as deposit and 70% T/T as balance before shipping.
    We accept 100% L/C at sight
    We accept Western Union payments.
    Other payment terms you want to pay, please let me know and i will check and reply you.

Q. What’s your standard trade terms ?

A: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for

competitive ocean freight.

Q:How can I trust you that machines pasted testing running before shipping?

A:1) We record the testing video for your reference.

2) We welcome you visit us and test machine by yourself in our factory.

Welcome to inquiry me.
