| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | CZ80-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD20000-USD32500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Machine Motor: | 22kw Hydraulic Motor | Name: | Automatic CZ Purlin Forming Machine |
|---|---|---|---|
| Production Capacity:: | 15-25m/min | Roller Material: | GCr15 Steel Treatment In Process |
| Roller Station: | 18 Stations Rollers To Roll Forming | Shaft Material: | 40Cr Steel , Special Treatment |
| Key Point: | C&z Purlin Forming Machine, C Channel Roll Forming Machine | Punch Hole: | According To Your Profile Drawing For Hole |
The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
2. Workflow:
De-coiler→Guide→Pre-Cutting→Roll Forming→Punching hole→Cutting→Receiving
3. Technical details of CZ Purlin roll forming machine:
4. Main components of CZ purlin roll forming machine
4.1 Manual Uncoiler: 1 Set
a). Coil inner diameter: 450mm-650mm
b). Maximum width of coiling: 500mm
c). Maximum weight of loading: 3 ton
4.2: Main of roll forming machine: 1 Set
4.3: Hydraulic motor station: 1 Set
It supplies the power for the hydraulic cutter
All hydraulic accessories all use Chinese famous brand products
4.4: Hydraulic Cutting device: 1 Set
a). Adopts post cutting, automatic
b). The cutting blade material is Cr12 with quenched treatment
c). Adopts welded frame for good rigidity
d). The cutting frame has been done heat treatment to avoid final product deformation.
e). The final product can be cut as per set length in the PLC controller, and the length is automatically measured by the encoder. When the final product reaches the set length, the machine will stop to cut the product automatically. Finish this action, the machine will run again continuously.
4.5: Support table: 1 Set
4.6: PLC control cabinet: 1 Set
a). This system uses the Mitsubishi PLC to control all the working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
b). Mitsubishi converter adjusts speed technology, realize the automatic production.
c). The touch screen is input and canceled the working data.
d). Friendly man-machine interface system can be set batches to work-piece, length, quantity, etc.
e). Encoder count, having function of count and measuring length.
f). Suitable power voltage: 380V/50Hz, 3 Phase

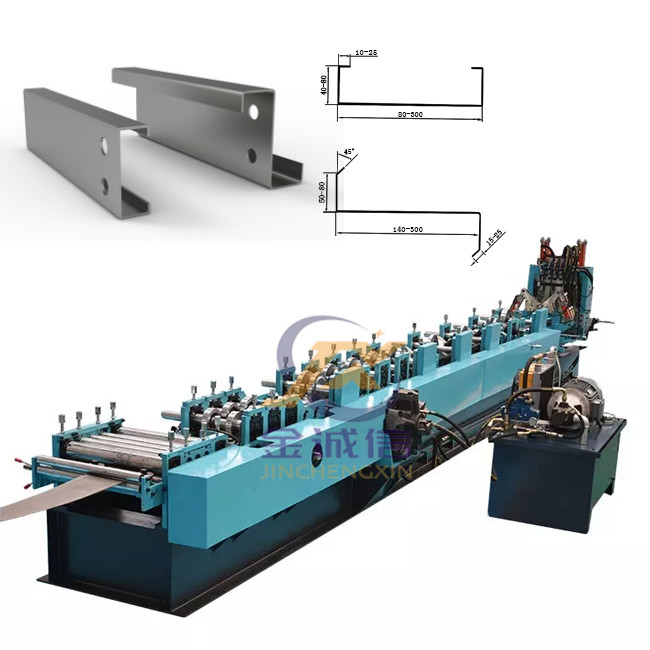

5. Description of CZ purlin roll forming machine:
The CZ profile produced by the CZ profile steel forming equipment is used as the profile produced by the steel structure purlin to be flat,
and the CZ profile forming equipment is cut by the CZ profile steel machine.
Our CZ purlin roll forming machine adopts imported high-precision computer control cabinet and imported electrical components.
It is convenient and easy for users from all countries to use this language. Different work data can be set according to customer needs.
Using frequency conversion speed regulation, good production stability. Save time, effort, and effort!
6. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
7. FAQ
1. who are we?
We are based in Hebei, China, start from 2018,sell to Eastern Asia(30.00%),Africa(30.00%),South America(30.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ROLL FORMING MACHINE,BENDING MACHINE,SANDWICH PANEL FORMING MACHINE,SHEARING MACHINE,SLITTING MACHINE
4. why should you buy from us not from other suppliers?
The company insist on the policy of ' quality first, credit first, reasonable price, best service ' supply the best competitive products, win the bigger market. Strict management, superior quality, stressing reputation and paying attention to service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
