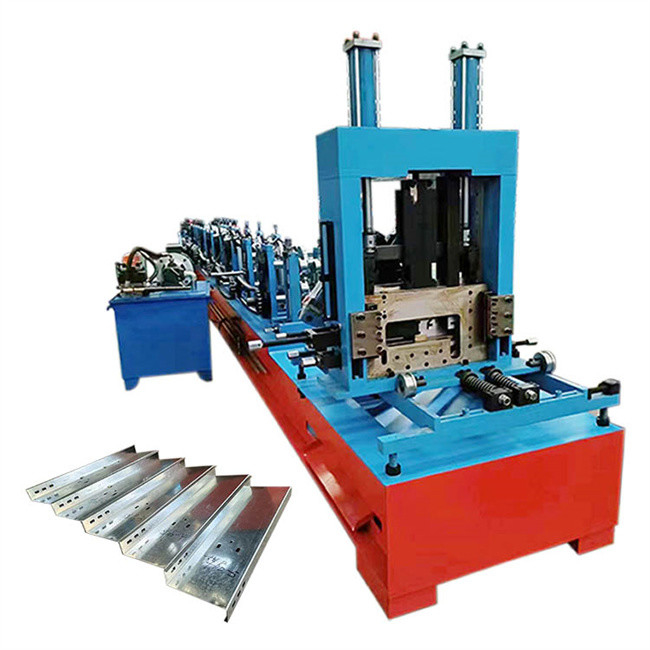

Hydraulic Cutting Cz Roll Forming Machine Galvanized Steel Coils 1-3mm Thickness

Quick Interchangeable Building Construction Automatic Channel Profile CZ Purlin Roll Forming Machine

1. Description of CZ purlin roll forming machine:

We are a manufacture of C Z purlin roll forming machine, C and Z purlin used as horizontal or wall for structural support in buildings, steel buidling. This machine also called CZ purlin forming machine, czpurlin making machinery, purlin roll forming machine, C purlin rolling forming machine, C channel forming machine, CZ purlin forming machine ,building construction CZ purlin ,automatic channel profile,steel cz purlin roll forming machine,building material c and z purlin forming machinery.

Quick Interchangeable zinc plated Automatic CZ Purlin Roll Forming Machine adopts special structure. The rollers for C changeable models are be changed by motorized /manual . One machine can produce all specifications of C purlins. Crimples are optional to increase rigidity of purlin. The roll former automatic controlled by PLC control with touch screen.

C/Z purlin machine roll former is the most common machine in building area. It is widely used for the roof and cladding support and fixing. We designed and developed the new type C purlin cold forming machine which have much better performance . The length and height can be adjusted automatic by the PLC control system. The valid material thickness, the width and the depth can be adjusted easily.

The forming process are mainly including:

Decoilel--- feeding guide ---leveling and straighten---hydraulic holepunching---hydraulic cutting ---roll forming---rectify
rollers---output table .

Raw material: Yield strength Q235 galvanized steel and hot rolled steel
Machine compositions:
* Decoiler for 5ton coils；
* Feeding guide & straighten device；
* Hydraulic hole punching;
* Cutting blade drove by hydraulic power；
* Roll forming machine with rectify rollers；
* Stacker for finished products(manual or automatic control)；
* PLC computer interface operate system

2. Technical details of CZ purlin roll forming machine:

3. Main components of CZ purlin roll forming machine

4. CZ purlin roll forming machine Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. CZ purlin roll forming machine Advantages

· Our design team use Germany COPRA software design

· Our factory have 5 engineers with more than 20 years experience

· We have 30 professional technician

· 20 sets advanced CNC production lines on site,these CNC machine is used for machine rollers process.

· Passionate Team

· Installation engineers can reach your factory within 6 days, if you need our engineers, please contact me in adwance.

· 12 month years maintenance and whole life technical support

6. CZ purlin roll forming machine Application

This machine is widely used in the production of the horizontal or wall for structural support in buildings, steel buidling.

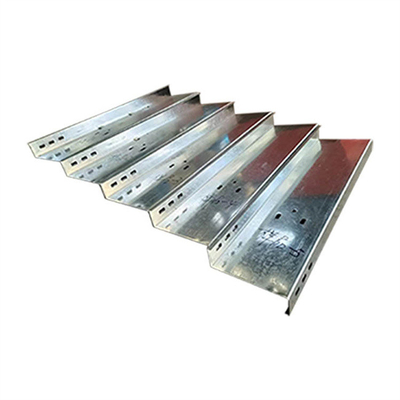

7. CZ purlin roll forming machine Product photo

8. FAQ

Q: If need technician to workshop to debug and teach, how to do?

A:We provide online instruction, or We sent technician to your factory. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.

Q. Can you provide OEM service for roll forming machine?
A: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
