JCX Automatic C Purlin Roll Forming Machine 25m/min high speed

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	80-300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	CZ Purlin Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	JCX Automatic C Purlin Roll Forming Machine , Automatic C Purlin Roll Forming Machine 25m/Min

JCX Automatic Quickly Change Steel Frame Channel Punch Holes C Z Purlin Roll Forming Machine

1. Description of roof ridge cover cap roll forming machine

This is a automatic CZ purlin roll forming machine, change C to Z controlled by PLC, change size by electric bottons. the advantage as bellows:
Produce different purlin size without changing rollers or spacers.

No need changing cutter for different size.

Easy operation, low maintenance cost

Infinite sizing(any size within machine range),help to save material

2. Technical details of door shutter roll forming machine:

Main motor power	22kw
Hydraulic motor power	4kw
Hydraulic Pressure	10-12MPa
Voltage	380V/50HZ/3Phase
Control System	PLC (Delta brand)
Feeding Material	Galvanized steel
Feeding Thickness	1.5-3.0mm
Speed	25m/min
Roller station	18 rows
Shaft diameter	80mm
Shaft material	45# steel
Roller material	45# steel
Cutter material	Cr12 quenched
Dimension	1150012001500mm
Weight	about 13000 kg

3. Main components of door shutter roll forming machine

CZ Purlin roll forming machine configuration components
Name	Quantity	Units
3T hydraulic uncoiler	1	Set
Adjustable feeding platform	1	Set
Roll forming system	1	Set
Servo non-stop cutting	1	Set
Hydraulic system	1	Set
Delta PLC electronic control system	1	Set
Finished product receiving platform	1	Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

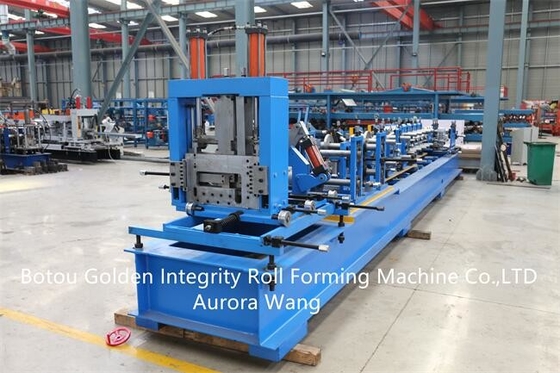

JCX Automatic C Purlin Roll Forming Machine 25m/min high speed 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

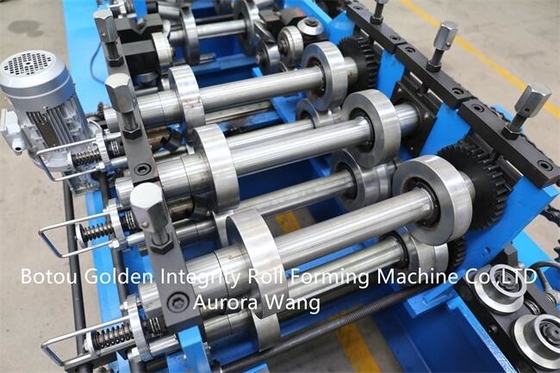

JCX Automatic C Purlin Roll Forming Machine 25m/min high speed 1

JCX Automatic C Purlin Roll Forming Machine 25m/min high speed 2

7. Product photo

JCX Automatic C Purlin Roll Forming Machine 25m/min high speed 3

JCX Automatic C Purlin Roll Forming Machine 25m/min high speed 4
