Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | glazed tile forming machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD11000-USD16000 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 SETS PER MONTH |
Name: | Step Tile Forming Machine | The Weight: | 5tons |
---|---|---|---|
Our Warranty: | 12 Month | Operate Type: | Touching Screen And Button |
Decoiler Capacity: | 5T Manual | Need Container: | 1*20 Feet |
Suitable To Process: | Metal Sheet Thickess | Roller Material: | 0.05mm Hard Chrome Plating |
Customized Aluminum Colored Glaze Steel Metal Sheet Glazed Tile Making Roll Forming Machine
1. Description of glazed tile roll forming machine:
This step tile machinery is produce glazed tile sheet,it is popular in all over the world,the raw material thickness is 0.3-0.8mm, if you need the thin, we also can customize for you,the machine speed is 3-5m/min.This machien is durable and long service life, the host is equipped with a reinforced indenter and a universal pressure plate, which can easily change different main tile molds and special-shaped tile molds. It is suitable for producing various types of cement tiles and pavement bricks.
Because the thickness of the working material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a metal corrugated roof roll forming machine, please send me your profile drawing, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.
2. Technical details of glazed tilel roll forming machine:
Machine Specifications | |
Weight | About 5tons |
Size | About 1.5m*1.5m*1.3m(length x width x height) |
Color | Main color: blue or as your requirement |
Warning color: your requirement | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.3-0.8mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 18 |
Diameter of forming rollers shafts | 70mm |
Roll Forming Speed | 3-5m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 5kw |
Hydraulic unit motor power: 4kw | |
Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.

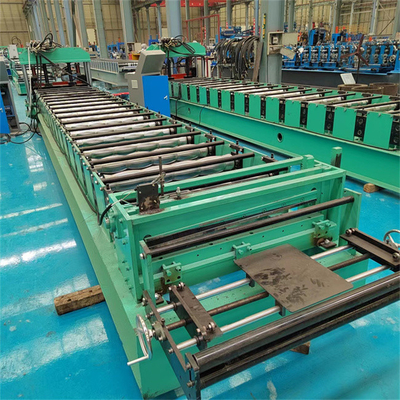

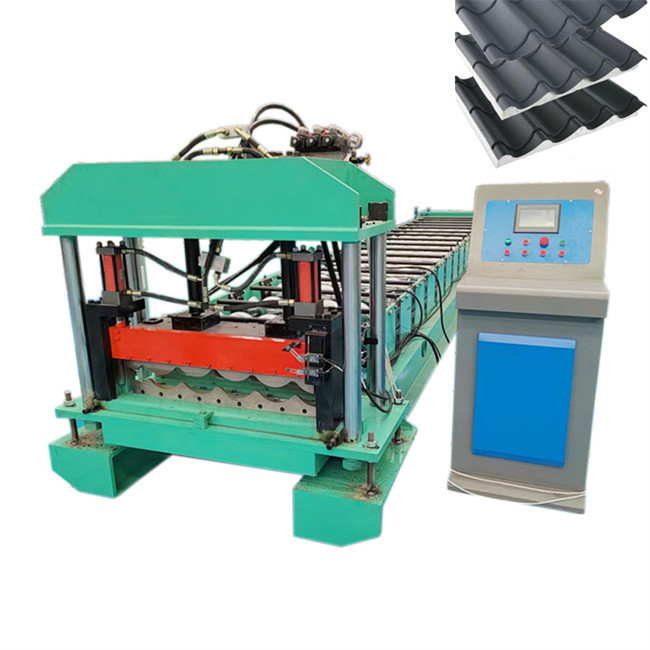

7. Product photo
8. FAQ
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 12 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q. Why are your prices higher than others?
A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
