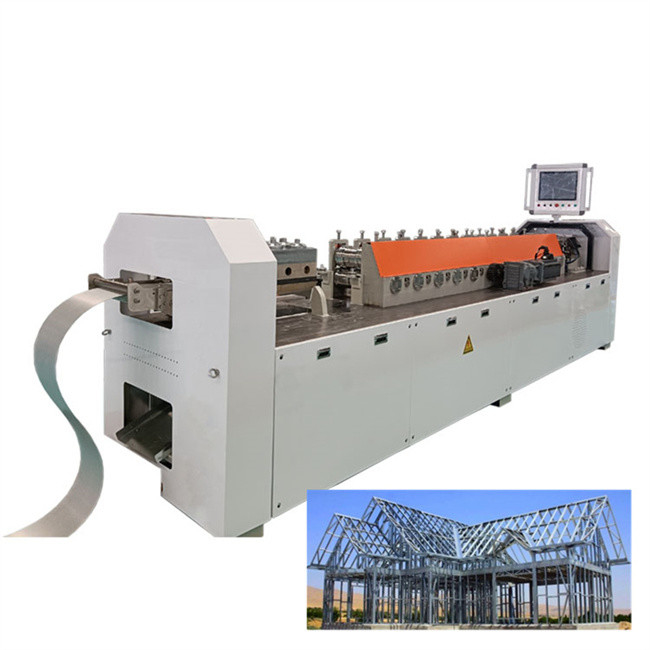

Vertex BD Light Gauge Steel Framing Machine Cr12 with Heat Treatment

Vertex BD High Speed Light Gauge Steel Framing Machine LGS Machine For Villa House Structure

1. Description Of light gauge steel framing Machine

This LGS steel frame machine have two size very popular in all the world, C89 and C140, our machine have high speed production, 50-60m/min.The raw material thickness from 0.6 to 1.2mm G550 and G320.

LGS steel frame machine has ability to read Vertex BD, it's very easy to operate, can save your time.

Our factory can provide you the solution of light gauge steel framing machine.

If you are interest, please contact me.

VERTEX BD house design software
1. The wall, floor and roof structure is produced automatically, saving design time.
2. Automatic 3D molding, insure 100% accuracy.
3. With analysis project function, the software can calculate bearing capacity.
4. Create frame work 3D map and 3D decoration view.
5. The whole building frame can be resolve to independent unit drawing.
6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7. Create the processed data including the marked work piece, docking with the equipment.
8. Software maintenance and training fee.


2. Technical Details Of light gauge steel framing Machine

3. Main Components Of light gauge steel framing Machine

4. Production Flows Of LIGHT GAUGE STEEL FRAMING Machine

Uncoiling the sheet--Punching -Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages Of light gauge steel framing Machine

· More than 10 engineers and More than 10 designers with more than 10 years experience

· We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.

· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.

· Our machine adopts Taiwan Delta brand PLC control and touch screen, more durable and low failure rate.

· We more carefully to deal with the details. our rollers and shafts, we process 3 times.

6. Application Of The light gauge steel framing Machine

This machine is widely used in the production of the metal roof sheets and wall panel.villa,. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

7. Product photos Our light gauge steel framing

FAQ

Q: What's your payment terms and delivery time?

A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.

Q. How to get a quotation?

A: 1. Give me the profile drawing and the thickness of your material it is very important.

2. If you have requirements for production speed, power, voltage and brand, please explain in advance.

3. If you don't have your own profile drawing, we can recommend some models according to your local market standard.

Q: If need technician to workshop to debug and teach, how to do?

A:We provide online instruction, or We sent technician to your factory. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
