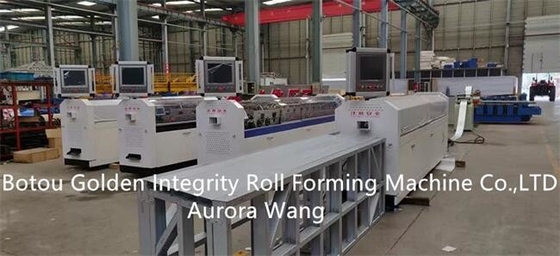

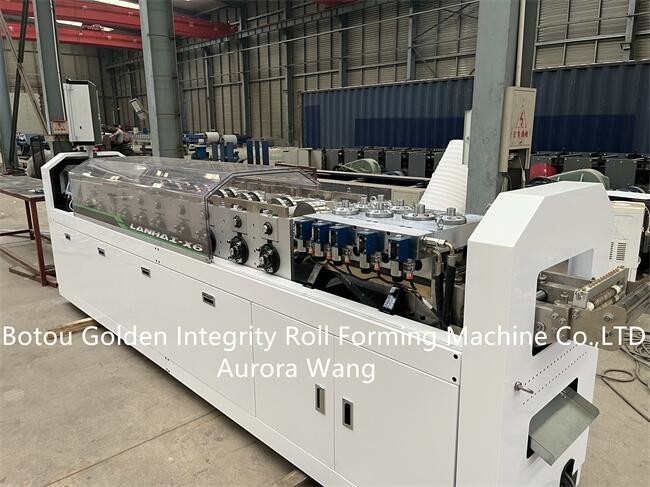

JCX Villa Light Gauge Steel Framing Machine Automatic Operation

JCX Low Price Popular Light Gauge Steel Framing Building Frame Light Steel Villa Roll Forming Machines with Good Service

1. Description of roof ridge cover cap roll forming machine:

Technical Parameters

(1)Sectional Dimension: 89*41mm

(2)Material Thickness: 0.75-1.2mm,G300-G550Galvanize

(3)Material Width: 182mm

(4)Capacity of Decoiler: 2000kg

(5)Working Speed: 300-700m/h(Max. 15000m/h)

(6)Main Power: 7.5kw

(7)Hydraulic Power: 5.5kw

(8)Product Precision: ±0.5mm

(9)Capacity of oil: 100L

(10)Power Supply: 380V, 50HZ, 3Phase

(11)Machine Dimension: 4900*1000*1500mm

(12)Machine Weight: 5000kg

Working Flow

decoiler-leveling-punching-roll forming-code printing-hydraulic cutting-profile

Decription

the light steel frame roll forming machine is for light steel building matereial-C channel C75, C89, C140 and other profiles manufacturing. C75 could make roof structure, inner structure, C89 could make 2-3 floors steel house, C140 could make 5 floors houses.Prefabricated steel panel could be finished without any weather influence, then finish all assembling one wall by one wall, with other PC structure, heavy steel structure building methods.

2. Technical details of door shutter roll forming machine:

3. Main components of door shutter roll forming machine

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

7. Product photo

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
