| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | galzed tile machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD13000-USD18000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| After-sales Service Provided: | Online Or Door To Door | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Cutting Blade Material: | Cr12 Quenched | Shaft Material: | High Grade No.45 Forged |
| Warranty: | 12 Months,and Life Long Tracking Service | Dimension(l*w*h): | 5000*800*1200mm |
| Control System: | PLC Delta | Tile Type: | Color Steel |
| Use: | Glazed Tile Roll Forming Machine | Weight: | 4.5tons |
Iron 3-5m/min Glazed Tile Roll Forming Machine hydraulic shear for roof wall
1. Description of glazed tile roll forming machine:
1. The machine consists of two parts: shearing and pressing, and the resulting sheet is very beautiful
2. Widely used in garden, hotel, family, road construction
3. Machine used color steel, aluminum plate, iron plate, widely used, easy operation of the machine, PLC setting length, more accurate length, more convenient installation
Our factory is manufacturing high quality glazed tile roll forming machine, and regularly exported to Australia, USA, Thailand, Canada, Colombia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of glazed tile machine:
| Machine Specifications | |
| Weight | About 4.5tons |
| Size | About 5000*800*1200mm(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 15 stations |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |

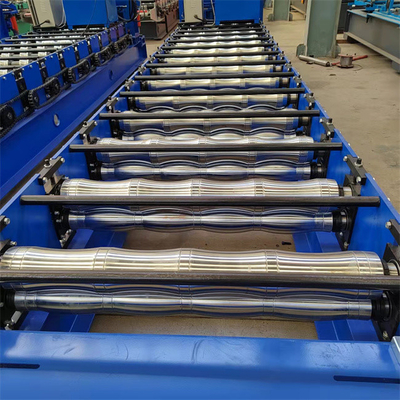

| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
·1. A professional design team has undergone professional theoretical and production standardization training, which is the guarantee for the accuracy of the design machine
2. The production team has a high level, and we have professional production leaders to do practical training for the workers
3. We have professional equipment to produce the machine, the machine frame uses gantry milling, and the wheels use cnc machine to ensure the accuracy of the important parts of the machine
6. Application
This machine is widely used in the production of the roof and wall and others.

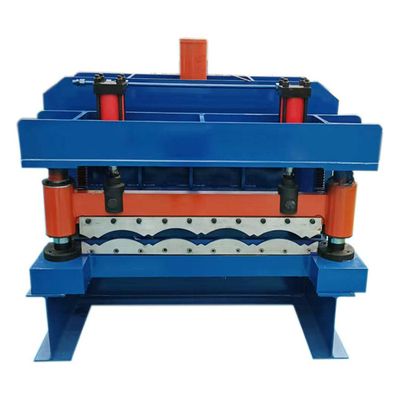

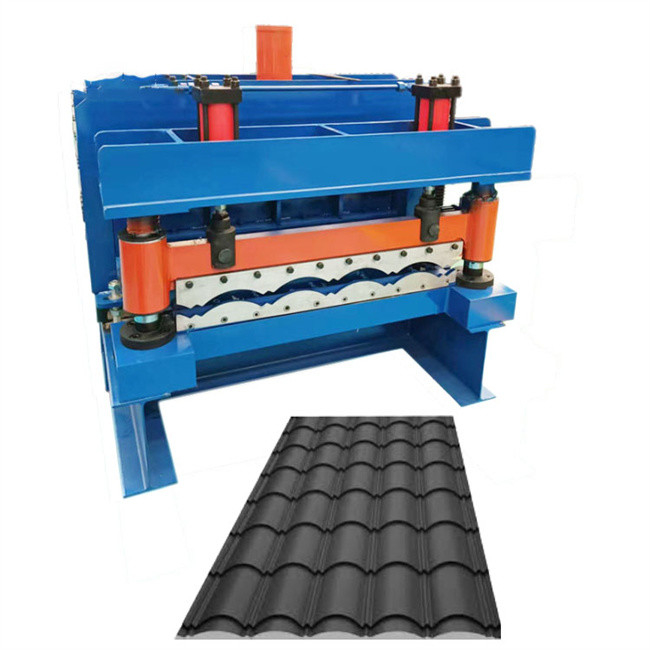

7. Product photo
8. FAQ
Q:Can you customized our profile?
A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q:What is your payment terms?
A:30% as the deposit by T/T in advance,70% T/T as balance after you inspect the machine before shipping.
We also accept 100% L/C at sight
We can accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you.
Q:When will you delivery thye machine after i place the order?
A: After we get down payment,we will arrange production.About 30-45 days for delivery.
Q:What will you do if the machine broken?
A:We provide 12 nonths free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair,we can send the new parts replace the broken parts freely.If it is beyond the warranty period,we can negotiable to solve theproblem,and we supply the technical support for the whole life of the machine
