50m/Min Metal Steel Cut To Length Line Machine 0.3-1.5MM Thickness

50M/MIN AUTOMATIC METAL STEEL CUT TO LENGTH MACHINE STEEL CUT TO LENGTH MACHINES

1. Description of 50M/MIN AUTOMATIC METAL STEEL CUT TO LENGTH MACHINE STEEL CUT TO LENGTH MACHINES:

Our cut to lenght line adopt auto hydraulic decoiler by 5tons, 7tons, 10 tons, 15 tons or more--Auto leveling machine--Auto shearing machine--and auto stacker to make receive the ready sheets.

Botou Golden Integrity major in such steel cut to lenght line and slitting line for over 13 years, with rich experiance to meet customs different requests for speed, coil width and thickness.

We also have other products like: steel roofing, floor deck, lgs framing for vailla house with software, rolling shutter door etc, If you have any other inquiries, welcome to contact us freely.

2 Main components of high speed cut to length line

3. Technical details of  automatic steel cut to length line:

1.1 Raw material :

Material: Cold rolled sheet, galvanized sheet, color coil, hot coil

Thickness: 1.0-3.0mm

Coil width: 600-1250mm

Coil ID: Φ508/Φ600mm

Coil OD: ≤Φ1500mm

Coil weight: max 10T

1.2 Finished sheet parameters:

Auto stacker length: 500～3000mm

length accuracy± 0.5mm/2m

Diagonal accuracy 1.0mm/2m

Sheet flatness 1.5mm/m2

1.3 Other parameters:

Speed:

Steel thickness over 1.5mm, speed is about 0-30m/min.

Thickness below 1.5mm, speed is about 0-50m/min

Steel thickness is 3mm, speed is about 0-20m/min.

• Control Electrical System:

• Drive: The variable frequency controller drives the unwinding motor and the leveling motor. Hydraulic shear. ²
• The whole line adopts PLC centralized control.
• With length setting, cutting count, speed adjustment, fault diagnosis, status display, system protection function.

• Hydraulic system:

• Hydraulic system adopts integrated pump station.
• Oil pumps and valves adopt Beijing Huade brand.
• Other parts adopt High level products from China

• Cutting machine

Function:Cut-to-length sheets while the sheets are running continuously

Structure:

• Shearing direction: from top to bottom.
• Dual hydraulic cylinders

Working direction As per customer’s requirement

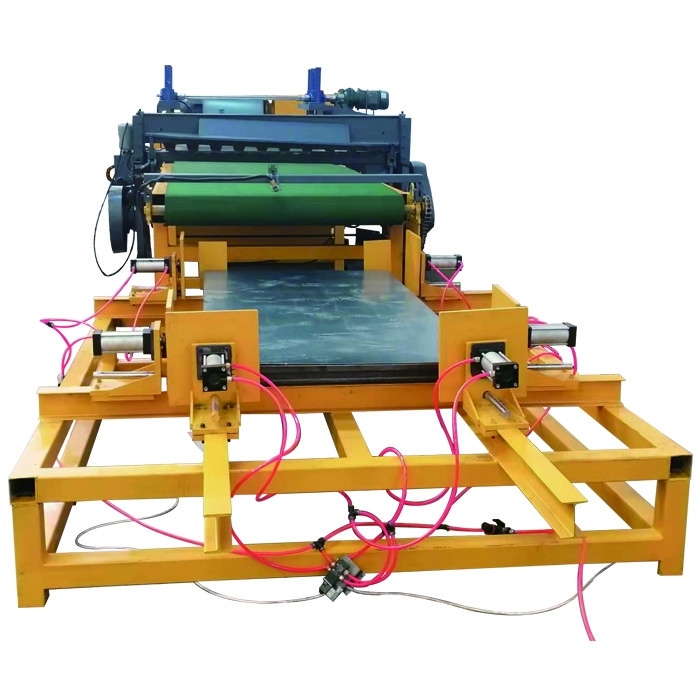

4. Production Flow and cut to length line pictures:  Videos please ask me freely.

6. FAQ

FAQ

Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .

Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.

Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.

Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

How can I trust you that machines pasted testing running before shipping?

A:1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.

Q: Do you sell only standard machines?

A: No. Most machines are made to order.

Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).

We join Alibaba Trade Assurance.

Q:What should I provide if I`d love to customized my machine?

A: To customize machine, we`d love to know:

1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
