Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel

Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel

  • Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel
  • Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel
  • Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel
Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: step tile forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD11000-USD16000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Name: Glazed Rolling Former Machine Dimension: 1.8m*1.3m*1.1m
The Machine Speed: 3-5m/min After-sales: Lifetime
Warranty Time: 12 Month Raw Material: PPGI,PPGL,GL,GI,steel
Feeding Width: 914mm-1450mm Thickness: 0.3mm-0.8mm

Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel





1. Description of glazed tile roll forming machine:



We can design the glazed tile profile as your request.

  • This glazed tile roll forming machine includes decolier,feeding section,roll forming section ,cut blade,oil station,received table,and pressing part.
  • Cutting without burrs

Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to United States, Canada, Mexico, Colombia, South Africa, Chile, Peru, Zambia, Indonesia, Philippines, Thailand, etc.





2. Technical details of glazed tilel roll forming machine:

Glazed tile Machine Specifications
machine Weight About 5tons
machine Size About 1.5m*1.5m*1.3m(length x width x height)
machine Color Main color: blue or as your requirement
Warning color: your requirement
Suitable Raw Material
Raw Material Galvanized Steel Coils
Raw Thickness 0.3-0.8mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20
Diameter of forming rollers shafts 70mm
Roll Forming Speed 3-5m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement







3. Main components of glazed tile roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

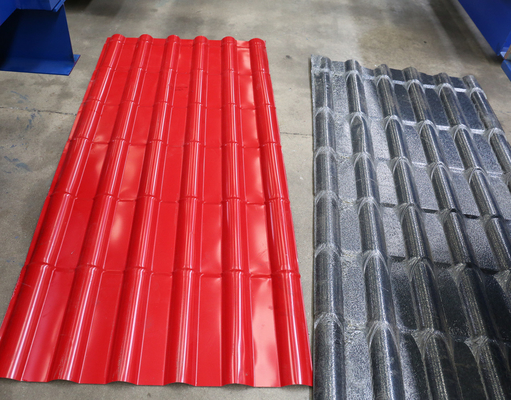

Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel 0





5. Advantages

​​

  • We have CE and ISO international certificates, we can ensure the machine quality,  it meets all over the world  import standards.
  • we have 5 professional designers to design molding solutions
  • about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
  • the machine produce the finished sheet is very beautiful



6. Application



This machine is widely used in the production of the roof wall steel construction and so on.



7. Product photo

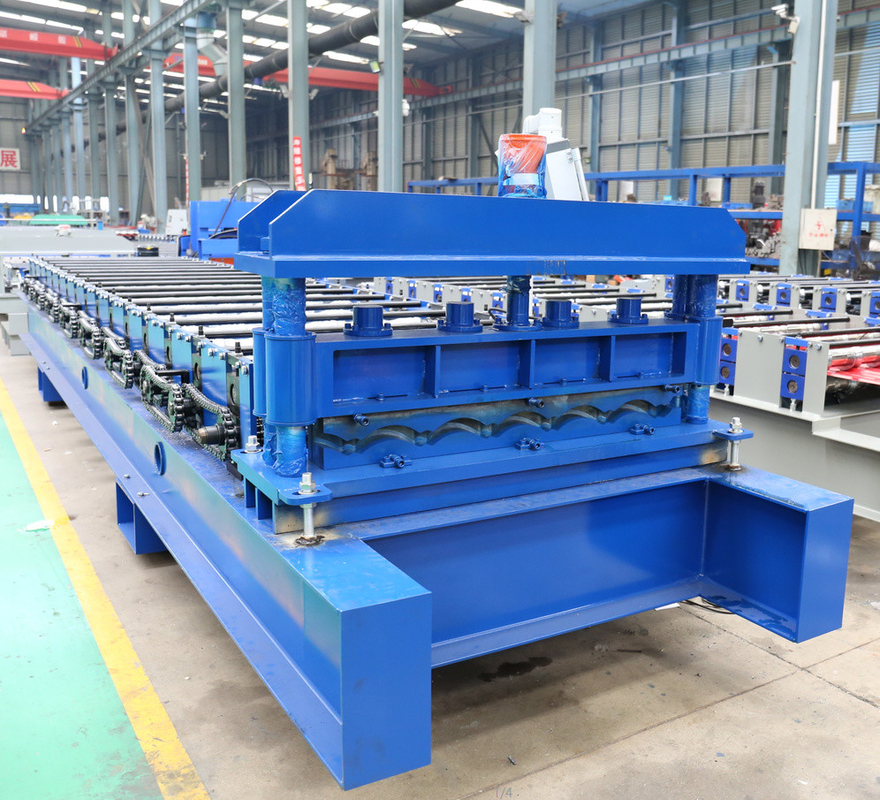

Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel 1

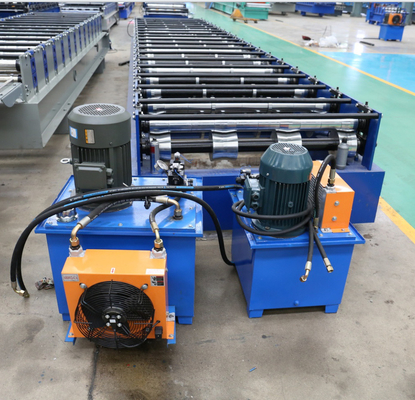

Roof panel glazed tile roll forming machine 0.3-0.8mm high speed color steel 2





8. FAQ



Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.





Q:How to visit your company?

Our factory located in Botou city Hebei province.
A: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.




Welcome to visit us!
