Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | glazed roll forming machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD11000-USD16000 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 SETS PER MONTH |
Machine Name: | Step Tile Forming Machine | Feature: | Easy Installation |
---|---|---|---|
Coil Width Before Rolling: | 914mm-1450mm | Our Warranty: | 12 Month |
Raw Material: | PPGI,PPGL,GL,GI,color Steel | Material Type: | GI PPGI Aluminum |
Used: | Roof Wall House Building | Main Frame: | 400H Steel |
Customized glazed tile roll forming machine fully automatic hydraulic cutting
1. Description of glazed tile roll forming machine:
We can design the glazed tile profile drawing as your request,if you don't know the profile ,you only need tell me the feeding width that you need ,we have professional designers design a suitable profile for you.
The machine speed:3-5m/min
Machine rollers material:45#steel Hard Chrome Coated
If you have any question ,contact me please
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of glazed tilel roll forming machine:
Machine Specifications | |
Weight | About 5tons |
Size | About 1.5m*1.5m*1.3m(length x width x height) |
Color | Main color: blue or as your requirement |
Warning color: your requirement | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.3-0.8mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 18 |
Diameter of forming rollers shafts | 70mm |
Roll Forming Speed | 3-5m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 5kw |
Hydraulic unit motor power: 4kw | |
Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.

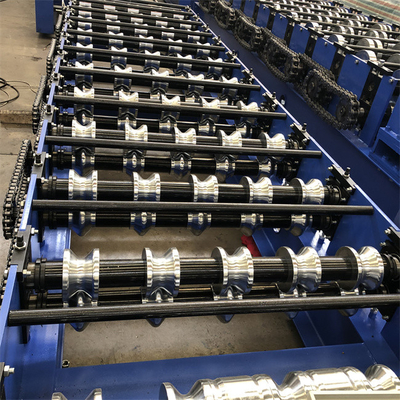

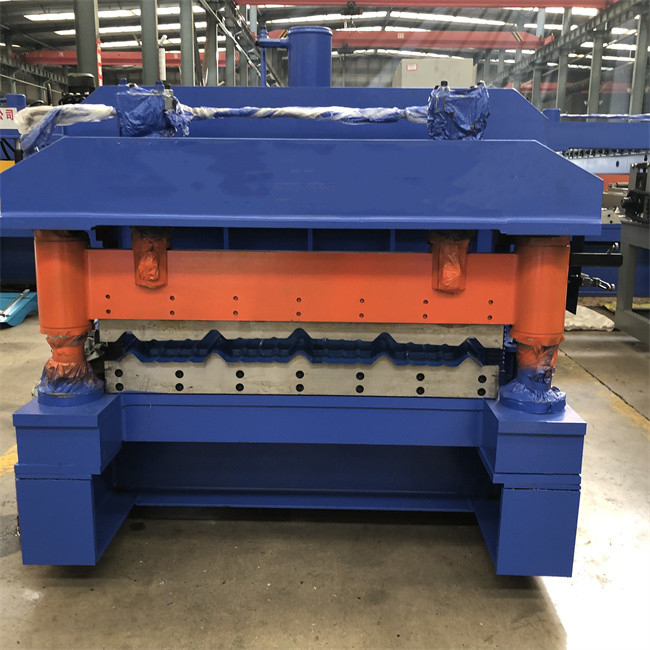

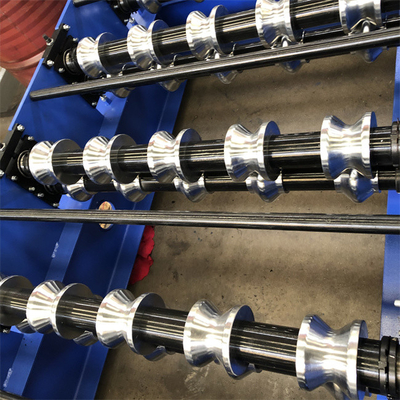

7. Product photo
8. FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
Q:I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A:Yes,of course, If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food, from departure from our factory, until we are back to our factory.
Contact Person: Eileen Sun
Tel: +86 17331704660
