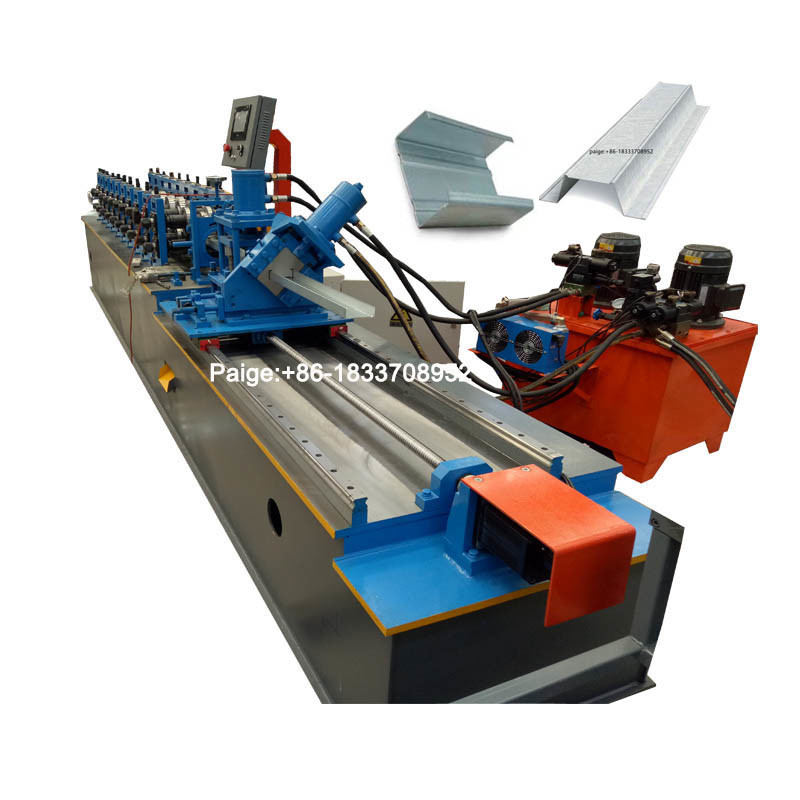

Drywall Channel 415V Stud And Track Machine 45-50m/min fast speed

CU OMEGA L SHAPE METAL DRYWALL STUD AND TRACK ROLL FORMING MACHINE METAL STUD ROLL FORMING MACHINE

1. Description Of CU/Omega metal drywall profile channel roll forming machine

Our CU/Omega furring channel roll forming machine adopt flying cutting( non-stop cutting control by servo motor).

Speed is fast: 45-50m/min without punching.

You can select punch or not.

Main structure adopt independent hard column structure by 30mm thickness but not wall panel welded, with is with higher precision.

Forming rollers adopt high grade Cr12 but not GCR15 and 45# which gain more higher quality

2. Technical Details Of Metal Stud And Track Roll Forming Machine(CU/Omega or L type)

3. Main Components Of Metal Stud And Track Roll Forming Machine

4. Production Flows Of Metal Stud And Track Roll Forming Machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages Of Our Metal Stud And Track Roll Forming Machine

· More than 10 engineers and More than 10 designers with more than 10 years experience

· We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.

· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.

·

6. Application Of The Metal Stud And Track Roll Forming Machine

This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

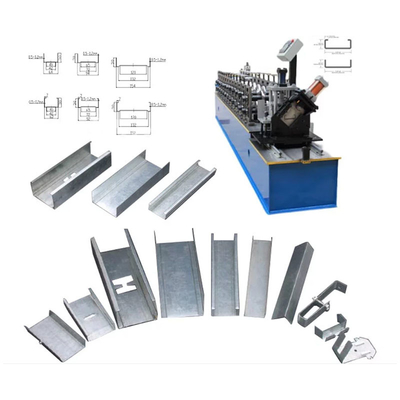

7. Product photos Our Metal Stud And Track Roll Forming Machine

8. FAQ

Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Q. How to get a quotation?

A: 1. Give me the profile drawing and the thickness of your material it is very important.

2. If you have requirements for production speed, power, voltage and brand, please explain in advance.

3. If you don't have your own profile drawing, we can recommend some models according to your local market standard.

Q. What's your payment terms and delivery time?

A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
