5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System

5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System

5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System
5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System
5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: glazed tile forming machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD11000-USD16000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Weight: About 5tons Warranty: 15 Month And Long Life Techinical Support
Operate Style: Full Automatic Or Manual Decoiler: Manual Decoiler Or Hydraulic Decoiler
Raw Material Thickness: 0.4mm-0.8mm Machine Speed: 8-12m/min
Machine Cutter Material: Cr12 Steel,quenched Treatment Material Of Rollers: 45# Steel Quenched, Coated Chrome

Blue Color Glazed Tile Roll Forming Machine Siemens PLC Control Full Automatic





1. Description of glazed tile roll forming machine:



Color steel tile is made by using the color steel plate after the rolling, become the steel plates with various kinds of wave shapes.



It is suit for the industrial and civilian constructions, warehouses, the big cross-beam structure houses’ roof, metope and the inner/outer metope’s decoration.



It has the good characteristics, such as light weight, high strength, colorful, easy installation, anti-seismic, fire-proofing, rain-proof, long service life, maintenance free, etc. Now, it is widely popularized and used.



5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System 0



2. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System 1





3. Main components of roof panel roll forming machine



Manual Decoiler 1 Set
Feeding guiding device 1 Set
Leveling System 1 Set
Roll Forming System 1 Set
Hydraulic Cutting System 1 Set
PLC control box 1 Set
Hydraulic Unit 1 Set
Receiving Tables 1 Set































4. Technical details of glazed tilel roll forming machine:



1). Suitable Raw Material

Material PPGI and PPGL Coils, Hot rolled & Cold rolled coil
Thickness 0.3-0.8mm
Coil width 1000mm, 1220mm, 1450mm
Yield Strength 235Mpa-550Mpa



2). Main Technical Parameters

Quantity of forming rollers stations 20
Diameter of forming rollers shafts 70 mm
Roll Forming Speed 10-16m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mold steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5 KW
Electric voltage 380V 50HZ 3 Phase (or custom)



5. Application



This machine is widely used in the production of the roof wall steel construction and so on.



5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System 2



6. Advantages

​​

  • We have CE and ISO international certificates, we can ensure the machine quality,  it meets all over the world  import standards.
  • we have 5 professional designers to design molding solutions
  • about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
  • We have 5 warehouse ,we have storage area for raw material ,we can make sure stock is always enough, we can ensure the delivery time.
  • Our factory has more than 20000 squre meters

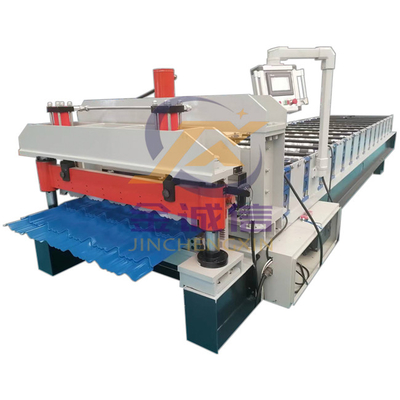

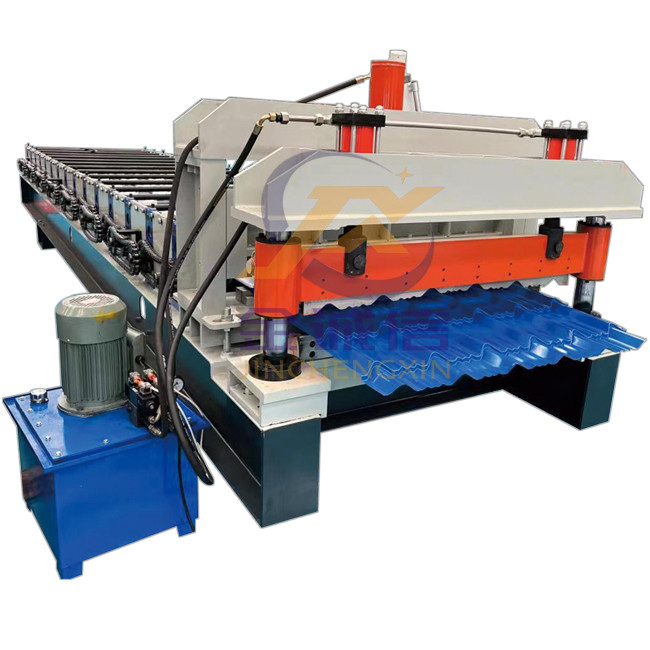

7.Machine picture

5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System 3



5.5kW Glazed Tile Making Machine Low Noise PLC And Converter Controlling System 4









8. FAQ



Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.

Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.



Q:How long can the machine be finished?

A:The machine takes about 30-40 days to complete, if you are in a hurry to use the machine , we can make it urgently, because we have enough raw material.



Q:Do you have a designer to design my profile drawing?

A:yes, or designers adopt European concepts, have 10 years of design experience, and are praised by our customers.




Welcome to visit us!
