| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | corrugated forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Product Name: | Rolling Forming Corrugated Machine | After-sales Service Provided: | Provide Overseas Services |
|---|---|---|---|
| Voltage: | 380V 50Hz | Cutting Blade Material: | Cr12 Quenched |
| Shaft Material: | High Grade No.45 Forged | Power(w): | 5.5KW+4kw |
| Warranty: | 12 Months,and Life Long Tracking Service | Control System: | PLC Control System(brand As Requirement) |

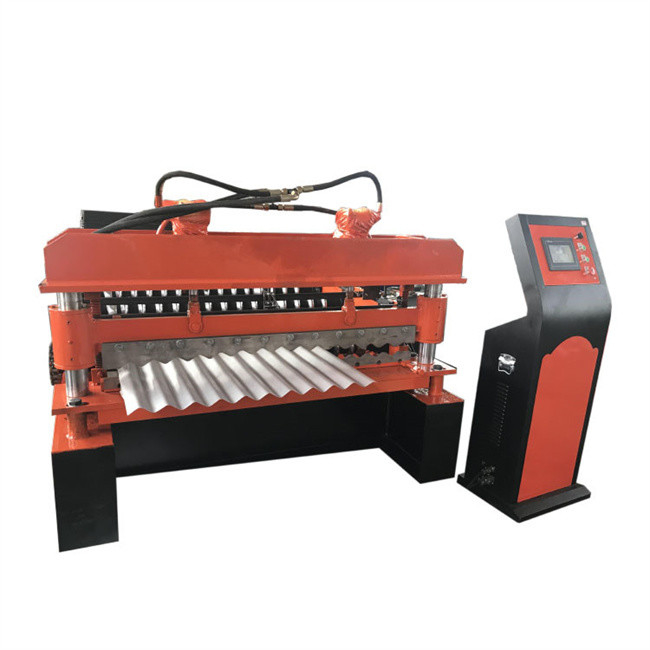

Color steel metal roof panel corrugated sheet roll forming machine in China
1. Description of corrugated roll forming machine:
For the corrugated sheet roll forming machine, it is a machine will make corrugated sheets, Our machine can do thickness for 0.3mm-0.8mm, the corrugated sheet profile will be design by your demand.
Our factory is manufacturing high quality roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of corrugated roll forming machine:
| Machine Specifications | |
| Weight | About 3.5tons |
| Size | About 3.4mx1.2mx1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 11-12 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of corrugated roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
6. Application
This machine is widely used in the production of the roof and wall ,ect.

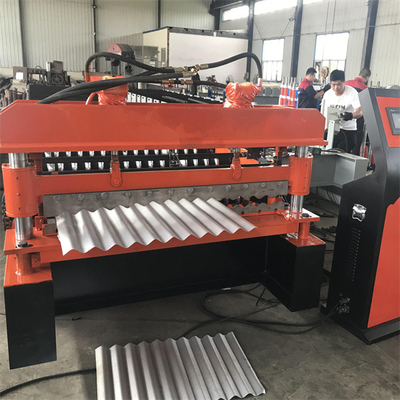

7. Product photo
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer.
Q: Does your company provide installing and training overseas?
A: Yes,we have. Overseas machine install and worker training services are optional
Q: How about your company after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
