| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | corrugated tile forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Product Name: | Corrugated Making Machine | Cutting Type: | Hydraulic |
|---|---|---|---|
| Cutting Blade Material: | Cr12 Quenched | Name: | Corrugated Roofing Sheet Machine |
| Warranty: | 1 Year | Control Type: | PLC System |
| Machine Weight: | 4.6tons | Usage: | Roof Wall Panel |

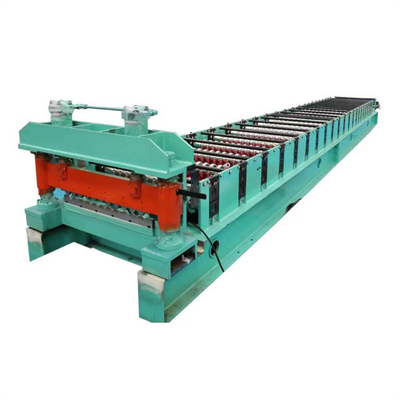

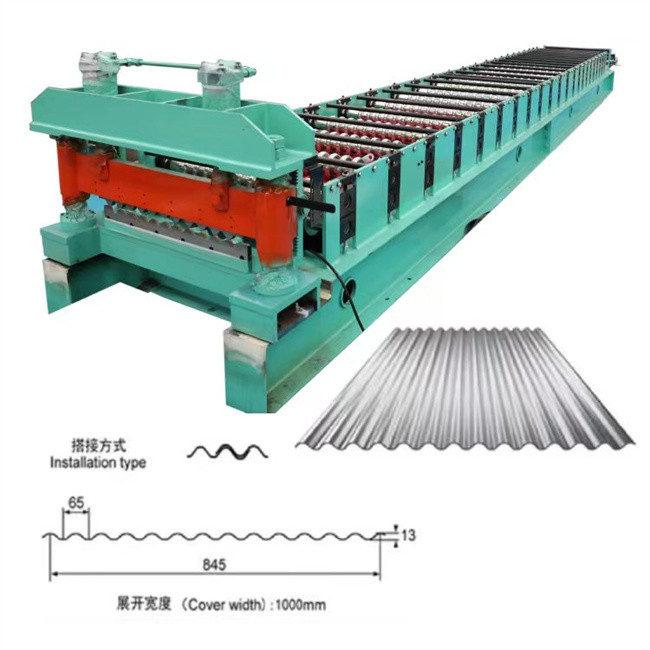

Roof wall panel corrugated sheet roll forming machine high speed 0.3-0.8mm 30m/min
1. Description of corrugated sheet roll forming machine:
The machine speed is 30m/min,efficient, the machine can make corrugated sheets,the raw material thickness is 0.3mm-0.8mm,if you want produce thicker raw materials, we alco can customize.Then please tell me the raw matwrial thickness.
This machine also named:Automatic corrugated roof sheet making machine, color steel corrugated roll forming machine.
Our factory is manufacturing high quality corrugated sheet roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of corrugated sheet roll forming machinery:
| Corrugated sheet roll forming Machine Specifications | |
| Weight | About 3.5tons |
| Size | About 3.4mx1.2mx1.3m(length x width x height) |
| Color | Machine Main color: blue or can as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 13 stations |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 30m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of corrugated sheet roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
6. Application
This machine is widely used in the production of the roof and wall ,ect.

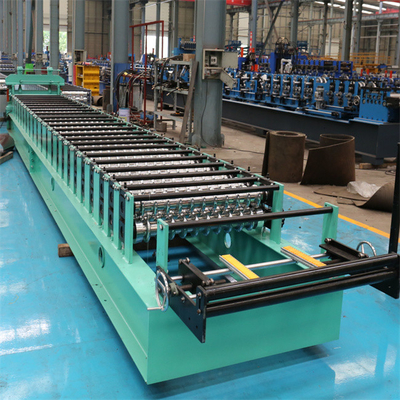

7. Product photo
Omron Counter Wheel Counts the corrugated Sheets Length
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer.
Q: Does your company provide installing and training overseas?
A: Yes,we have. Overseas machine install and worker training services are optional
Q:Does your factory provide customized?
A:Yes. We can design the machine according to you.We are a professional sheet metal forming machine designer and factory.
Q:Do you have any other service?
A: We manufacture, design, test the machine and lap the finished sheet.
It is free to train your workers through many ways,including video call ,we can send our engineers to your factory, live broadcast broast
Q:How long can the machine be built?
A:The machine takes about 30-40 days to complete, if you are in a hurry to use the machine , we can make it urgently, because we have enough raw material.
Welcome to inquiry.
Contact Person: Eileen Sun
Tel: +86 17331704660
