| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | barrel corrugated roof sheet machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Product Name: | Barrel Corrugated 0.1-0.5mm Metal Sheet Roof Roll Forming Machine Corrugated Roofing Sheet Making Machine | After-sales Service Provided: | Onlin And Oversea |
|---|---|---|---|
| Cutting Type: | Hydraulic System | Cutting Blade Material: | Cr12 Quenched |
| Shaft Material: | High Grade No.45 Forged | Warranty: | 1 Year |
| Control Type: | PLC System | Machine Weight: | 4.6tons |
| Highlight: | Barrel Corrugated Sheet Roll Forming Machine,Corrugated Sheet Roll Forming Machine 0.5mm |
||

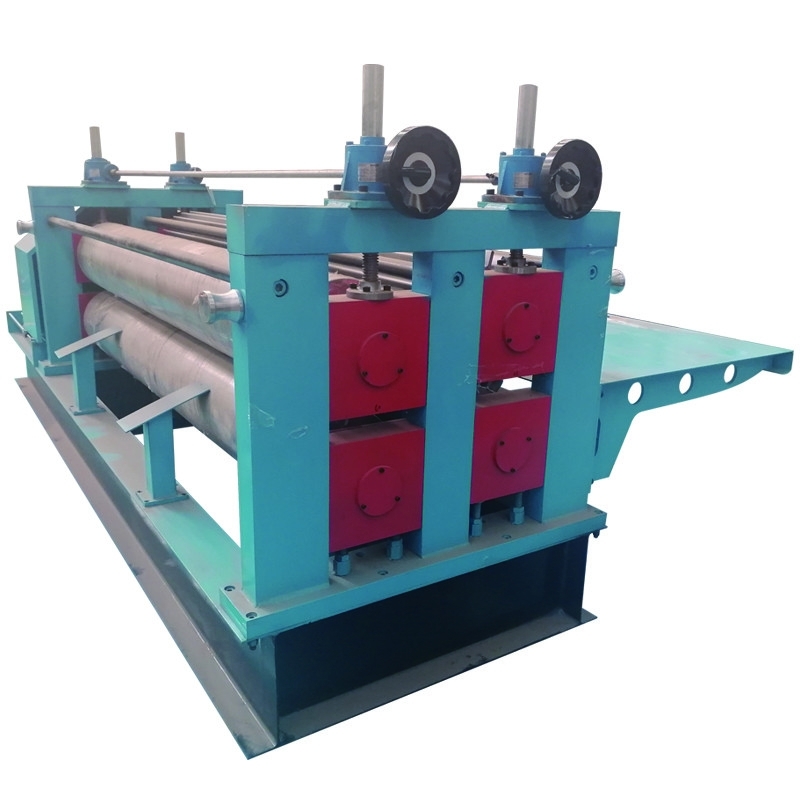

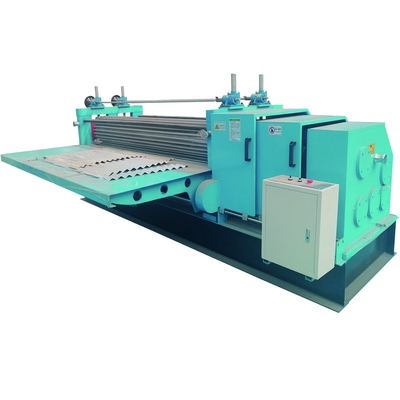

Barrel corrugated 0.1-0.5mm metal sheet roof roll forming machine corrugated roofing sheet making machine
1. Description of Barrel corrugated 0.1-0.5mm metal sheet roof roll forming machine corrugated roofing sheet making machine:
Our Barrel corrugated roofing sheet roll forming machine is designed for thin coil from 0.1-0.5mm thin steel coil, especially for South Afica Market.
It's fast, production can be 2-4tons per h. and works for 600-1250mm various width coil.
it can make several pcs at one time. Easy to operate.
2. Parametes of Barrel corrugated roofing sheet roll forming machine
| Appearance dimension of machine: | 2.5*5.0m*1.5m |
| Width/coil length: | within 3.2m |
| Steel fixed length shaft: | &340*1 set |
| Forming shaft: | &380*1 set welded |
| Suitable steel thickness: | 0.125mm-0.50mm (no more than 0.6mm at one time), |
| Material : | G550 full hard coil |
| Production: | 2-4tons/h |
| Auto feeding , raw material width: | 750-1200mm |
| Working speed: | 10-15pcs/min |
| Frame: | 100mm steel welded |
| Power: | 11kw, Driving method: gear and chain, Frequency converter adjust speed |
| Voltage : | as per customized |
Our service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
Welcome your inquiry!
Contact Person: Audrey Xing
Tel: +86 15530763231
