| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Silo corrugated sheet forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD45,990-USD56,990 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |

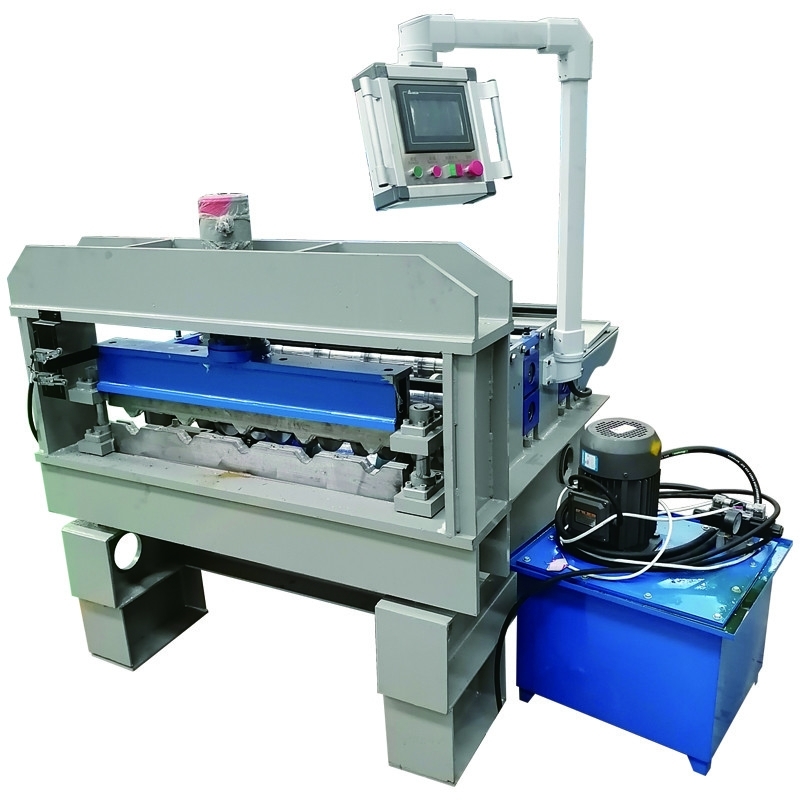

| Product Name: | Silo Sheet Corrugated Sheet Forming Machines Water Tank Corrugated Sheet Corrugated Sheet Machine | After-sales Service Provided: | Onlin And Oversea |
|---|---|---|---|
| Cutting Type: | Hydraulic System | Cutting Blade Material: | Cr12 Quenched |
| Shaft Material: | High Grade No.45 Forged | Warranty: | 1 Year |
| Control Type: | PLC System | Machine Weight: | 4.6tons |
| Highlight: | Silo Sheet Corrugated Sheet Roll Forming Machine,Corrugated Sheet Roll Forming Machine 18.5kw |
||
Silo Sheet Corrugated Sheet Forming Machines Water Tank Corrugated Sheet Corrugated Sheet Machine
1. Description of Silo Sheet Corrugated Sheet Forming Machines Water Tank Corrugated Sheet Corrugated Sheet Machine
2. Technical details of Silo Sheet Corrugated Sheet Forming Machines Water Tank Corrugated Sheet Corrugated
Sheet Machine:
| Configurations | Descriptions |
| Processing Material | Aluminium,PPGI, GI Sheet/Coil (Q235MPA) |
| Material Thickness | 2-3 mm (can be customized) |
| Feeding Width | 1200mm |
| Effective Width | As per design |
| Steps/shaft | Forming needs about 18main stations, main shaft is 115mm , 45#steel,quenched, all solid |
| Roller | Rollers adopt Bearing steel(GCr15),surface chrome 0.03-0.05mm, Hard chrome mirror polishing, ensure roller smooth. Spacers must lathe inner holes, and do Chrome plating, spacer thickness 4mm. |
| Chain | Transfer method adopts double line 1.2 inch chains, chain heat treatment |
| Speed | Design forming speed is 1-3m/min(with punching) |
| Servo motor | 18.5kw, INVT brand |
| punching | Side hole punching device 2sets, middle hole punching device 1sets. |
| Oil cylinder: diameter 80mm & 100mm | |
| Motor | 5.5 KW motor for cutting |
| PLC | Delta PLC from Taiwan |
| Transducer | Delta |
| Power | 380V, 3Phase, 50Hz |
| Touch Screen | 1. Delta touch screen |
| 2. First page of touch screen will show Buyer’s company information, can input 20 sets production data | |
| Language | All operation, instruction text adopt English,Russia |
| Appearance | All solder joints need to be polished smoothly, and the paint must be applied after scraping the mud to ensure a beautiful appearance. |
| Encoder | Omron From Japan |
3. Main components of corrugated sheet roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Auto punching system | 1 set |
| Auto curving system | 1 set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
5. Advantages
We are very rigorous in every tiny detail,including raw material and making machines.
6. Application
This machine is widely used in the production of the roof and wall Construction Material ,ect.
7. Product photo
Welcome to inquiry.
