| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | glazed tile forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD11000-USD16000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Cutter Material: | High Temperature Carburizing Cr12 | Cutting System: | Hydraulic Automatic Cutter |
|---|---|---|---|
| Color: | Yellow Or Other Colors | Need Container: | 20 Foot Container |
| Roller Material: | Hard Chrome Coated | Raw Material: | PPGI,PPGL,GL,GI,color Steel |
| Machine Forming Speed: | 3m-5m/min | Control Box Language: | 5 Languages |
| Machine Frame: | 350H Steel | Control System: | Delta PLC |

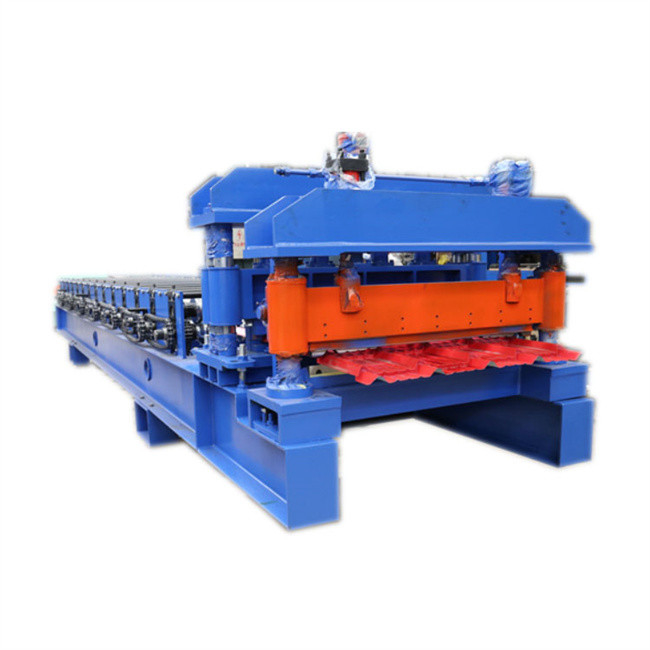

Color Steel Metal Glazed Tile Sheets Roll Forming Making Machine For 0.3mm-0.8mm Roof Panel
1. Description of glazed tile roll forming machine:
We are a professional Metal glazed tile Roll Forming Machine manufacturer, Metal glazed tile roll forming machine can produce different shapes of steel roof glazed tile, This kind of metal glazed tile is very popular. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
When you use this machine to produce, check whether the equipment and electrical connections are intact.When the glazed tile roll forming machine working, can’t inserted others objects into the machine.
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of glazed tilel roll forming machine:
| Machine Specifications | |
| Weight | About 5tons |
| Size | About 1.5m*1.5m*1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: your requirement | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 3-5m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.

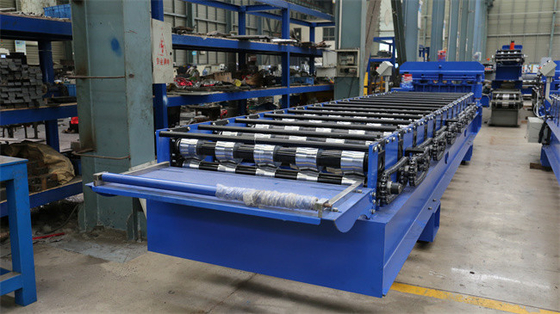

7. Product photo
8. FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: What can you do if the machine broken?
A: Our machine is warranted for 12 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
Contact Person: Audrey Xing
Tel: +86 15530763231
