Gear Drive Corrugated Roll Making Machine 12m/Min Coloe Steel Material

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO
Model Number:	barrel forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD15000-USD20000 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	30-45 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Barrel Roll Forming Machine	After-sales Service Provided:	Onlin And Oversea
Sheet Max Length:	8 Meters	Drive:	Gear
Thickness:	0.1mm-0.8mm	Raw Material:	PPGI,Coloe Steel ,GI,PPGL
Motor:	7.5KW	Speed:	Max 12/min
Highlight:	Corrugated Roll Making Machine 12m/Min , Gear Drive Corrugated Roll Making Machine

High speed barrel corrugator forming machine color steel in China

1. Description of corrugated sheet roll forming machine:

The barrel corrugator roll forming machine is specially designed to corrugate super thin coil sheet(thickness:0.1mm-0.4mm).Different with roll forming machine ,the corrugated machine rolls coil sheet in transversely,which the product width coule be 3-8 meters.

Our factory is manufacturing high quality corrugated sheet roll forming machine, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.

2. Technical details of corrugated sheet roll forming machinery:

Corrugated sheet roll forming Machine Specifications
Weight	About 5.5tons
Size	According to your sheet meters
Color	Machine Main color: blue or can as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.1mm-0.6mmmm
Yield Strength	235Mpa
Main Technical Parameters
Roll Forming Speed	max 12/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 7.5Kw
Electric voltage	According to customer’s requirement

3. Main components of corrugated sheet roll forming machine

Decoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

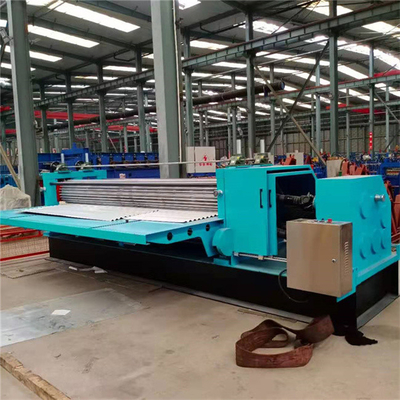

Gear Drive Corrugated Roll Making Machine 12m/Min Coloe Steel Material 0

5. Advantages

Our factory have 5 engineers with more than 20 years experience
We have 30 professional technician
we have 20 sets advanced CNC production lines to produce the machine rollers
We have sales team, after-sales team, production team, etc., passionate Team.
Our supply system is divided into raw materials and semi-finished products in order to ensure the machine quality.
We have a professional design team. Our designers have passed professional theoretical and production standardization training
We can provide the profiles according to you.

6. Application

This machine is widely used in the production of the roof and wall Construction Material ,ect.

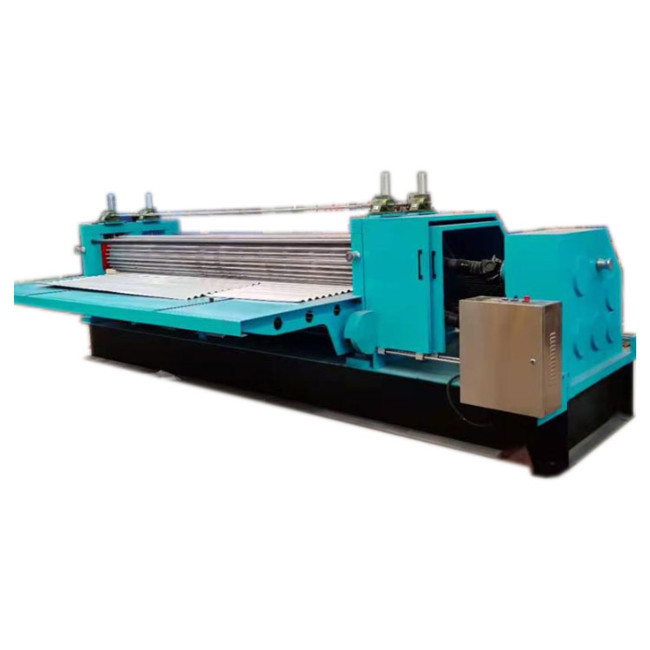

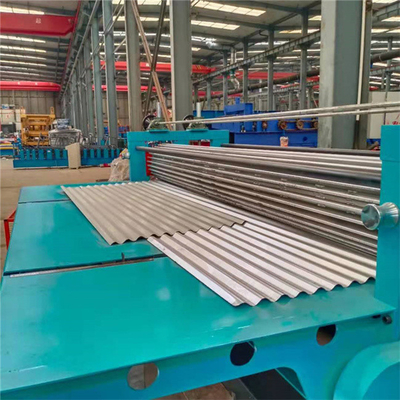

7. Product photo

Gear Drive Corrugated Roll Making Machine 12m/Min Coloe Steel Material 1

Gear Drive Corrugated Roll Making Machine 12m/Min Coloe Steel Material 2

8. FAQ

Q: Are you manufacturer or trading company?

A: We are manufacturer.

Q: Does your company provide installing and training overseas?

A: Yes,we have. Overseas machine install and worker training services are optional

Q:How can I trust you that machines pasted testing running before shipping?

A:1) We record the testing video for your reference. Or,
