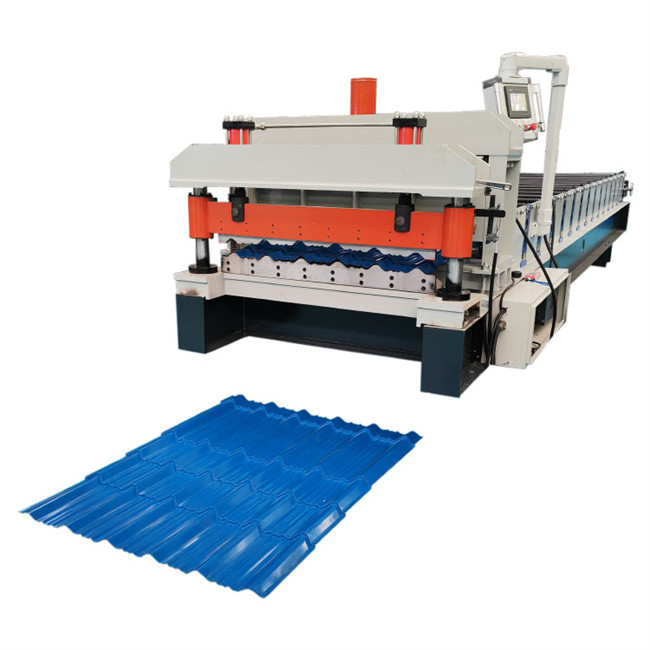

Galvanized Steel Roof Tile Roll Former 380V 50Hz Plc Control System

Galvanized Steel Roof Tile Roll Former 380V 50Hz Plc Control System

  • Galvanized Steel Roof Tile Roll Former 380V 50Hz Plc Control System
  • Galvanized Steel Roof Tile Roll Former 380V 50Hz Plc Control System
Galvanized Steel Roof Tile Roll Former 380V 50Hz Plc Control System
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: galzed tile machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD10000-USD12000 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS PER MONTH
Contact Now
Detailed Product Description
After-sales Service Provided: Online Or Door To Door Voltage: 380V 50Hz 3phases
Cutting Blade Material: Cr12 Quenched Shaft Material: High Grade No.45 Forged
Warranty: 12 Months,and Life Long Tracking Service Dimension(l*w*h): 5000*800*1200mm
Control System: PLC Delta Tile Type: Color Steel
Use: Glazed Tile Roll Forming Machine Weight: 4.5tons
Highlight:

Galvanized Steel Roof Tile Roll Former

,

Roof Tile Roll Former 380V

Metal Color Coated Glazed Tile Roll Forming Machine For Roof Panel Making Machine





1. Description of glazed tile roll forming machine:



Glazed tile roll forming machine popular sell in many countries, Coil width before rolling is 1000mm / 1200mm /1220mm / 1250mm.
Material common is PPGI material, material thickness common between 0.3-0.8 mm. The components of the glazed tile roll forming machine include: manual decoiler/ electric decoiler/ hydraulic decoiler, main roll forming machine, electric/ hydraulic cutting, plc control system, main motor, pump station, receving table.



Different roof panel roll forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.​



2. Technical details of glazed tile  machine:



Machine Specifications
Weight About 4.5tons
Size About 5000*800*1200mm(length x width x height)
Color Main color: blue or as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.3-0.8mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 15 stations
Diameter of forming rollers shafts 80mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 4kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement







3. Main components of door shutter roll forming machine



Decoiler 1 Set
Guiding Equipment 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Galvanized Steel Roof Tile Roll Former 380V 50Hz Plc Control System 0





5. Advantages



·1. A professional design team has undergone professional theoretical and production standardization training, which is the guarantee for the accuracy of the design machine
2. The production team has a high level, and we have professional production leaders to do practical training for the workers
3. We have professional equipment to produce the machine, the machine frame uses gantry milling, and the wheels use cnc machine to ensure the accuracy of the important parts of the machine





6. Application



This machine is widely used in the production of the roof and wall and others.



7. Product photo



Galvanized Steel Roof Tile Roll Former 380V 50Hz Plc Control System 1Galvanized Steel Roof Tile Roll Former 380V 50Hz Plc Control System 2



8. FAQ



Q:Can you customized our profile?

A:Yes dear.Our company have more than 10 years exoerience,5 engineers with more than 20 years experience design your profile.



Q1. What's your payment terms and delivery time?

A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.


Welcome to visit us!
