JCX Glazed Tile Cold Roll Forming Machine Aluminium Delta PLC Control

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Glazed Tile Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Glazed Tile Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	JCX Glazed Tile Cold Roll Forming Machine , Glazed Tile Cold Roll Forming Machine Aluminium

JCX hot sale Africa glazed tile aluminium roofing panel making roll forming machine

1. Glazed steel roll forming machine

Glazed steel roll forming steel glazed roof tile making machine  is mainly used to produce various types of metal tile required for factory, stadiums, bus stations, exihibitiom pavilions and other urban buildings. This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished steel plate after rolling is smooth without burrs and not easily deformed.

2. Technical details of glazed steel roll forming machine

No	Item	Parameter
1	Raw material	Color steel
2	Thickness of raw material	0.3-0.7mm
3	Raw material width	According to the profile drawing
4	Middle plate	16mm
5	Forming Speed	1-3 m/min
6	Forming station	Around 14-18 stations as profile drawing
7	Total Power	5.5kw(main machine power)+4kw(hydraulic pump station power)
8	Machine frame	350H Steel Welding
9	Voltage	380v,50hz,3p or as your requirement
10	Diameter of shaft	70mm solid shaft
11	Chain size	1.0 inch chain
12	Cutting type	Hydraulic Single Guide Pillar Cutting
13	Material of Forming Shaft	45# steel with grinding process,fine finishing
14	Material of Forming Roller	45# steel with hard chrome coating,heat treatment
15	Material of Cutting Blade	Cr12, fine finishing, with heat treatment
16	Control System	Delta PLC& transducer, others are SCHENIDER etc.
17	Motor brand	HEB China quality brand
18	Encoder brand	Omron brand, with aluminum alloy encoder bracket
19	Machine size (approximately)	L5.85mW1.35mH1.4m
20	Machine weight (approximately)	About 4.5 tons
21	Bearing	China quality brand
22	Chain	China quality brand with heat treatment
23	Hydraulic parts	HUADE VALVE

3. Main components of glazed steel roll forming machine

No.	Name	Qty
1	De-coiler	1 Set
2	Roll Forming Machine	1 Set
3	Hydraulic Cutting Devic	1 Set
4	PLC Control Box	1 Set
5	Output table	1 Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

JCX Glazed Tile Cold Roll Forming Machine Aluminium Delta PLC Control 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the roof.

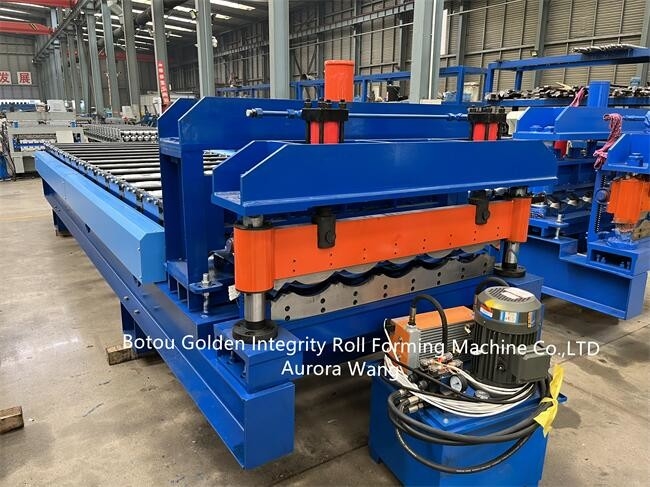

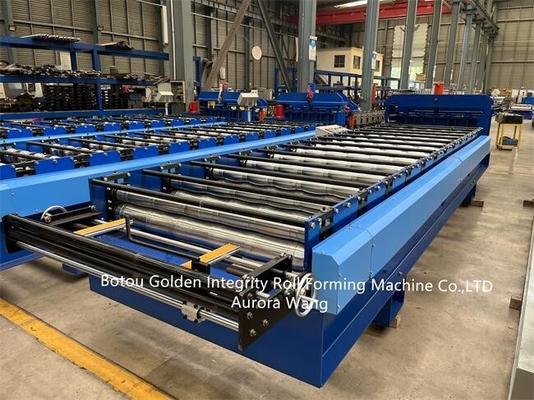

7. Product photo

JCX Glazed Tile Cold Roll Forming Machine Aluminium Delta PLC Control 1

JCX Glazed Tile Cold Roll Forming Machine Aluminium Delta PLC Control 2
