Metal Profile Glazed Tile Roll Forming Machine ISO9001 CE Brick Making Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Glazed Tile Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Glazed Tile Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	Metal Profile Glazed Tile Roll Forming Machine , Glazed Tile Roll Forming Machine ISO9001 , CE Brick Making Machine

JCX 2022 Year Popular Sell Automatic Roll Forming Color Steel Metal Profile Glazed Brick Roof Tile Making Machine

1. Glazed steel roll forming machine

We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.you need provide panel drawing,feeding width,effective width,and materials thickness,then we can send you more machine details.please feel free contact me.

2. Technical details of glazed steel roll forming machine

o.	Glazed roofing Tile Roll Forming Machine,can design as customer's request
1	Suitable material	PPGI/Aluminium sheet/galvanized sheet/various sheet plates
2	Thickness of coil sheet	0.3-0.8mm
3	Coil width	1000mm/ 1200mm/1250
4	Effective width	828/950 ( one machine can make one design)
5	Material of main frame	350H steel structure, strong and durable
6	Diameter of Soild shaft	80mm, high grade 45# steel
7	Roller	High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05mm
8	Thickness of middle plate	steel side plate
9	Forming station	13-18 rows as design
10	Drive type	By chain(1.0 inch), link bearing model 6210
11	Power of main motor	5.5 kw, Lichao, Shanghai, with reducer
12	Sidewall connection bar	20mm, zinc plated
13	Forming speed	About 3-5m/min
14	Hydraulic pump station	4 kw, 40# hydraulic oil
16	Material of razor blades	Cr 12 mov, quenching 58-62℃

3. Main components of glazed steel roll forming machine

No.	Name	Unit	Qty.
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Output table	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

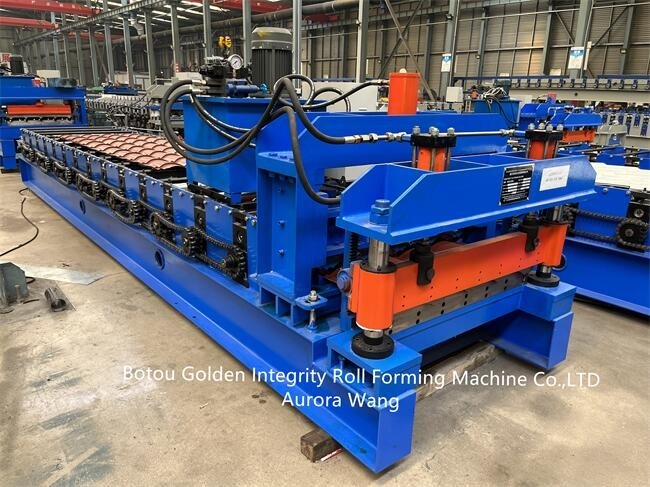

Metal Profile Glazed Tile Roll Forming Machine ISO9001 CE Brick Making Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

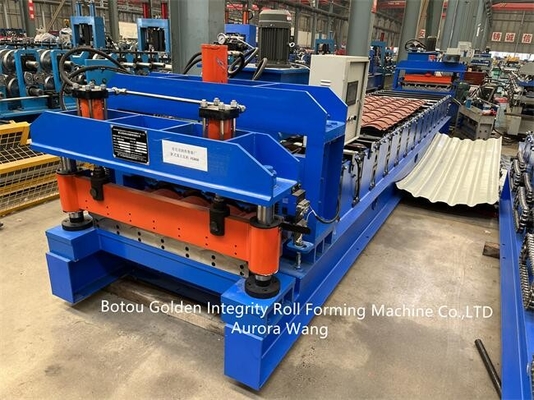

Metal Profile Glazed Tile Roll Forming Machine ISO9001 CE Brick Making Machine 1

7. Product photo

Metal Profile Glazed Tile Roll Forming Machine ISO9001 CE Brick Making Machine 2

Metal Profile Glazed Tile Roll Forming Machine ISO9001 CE Brick Making Machine 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
