W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves

W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves

  • W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves
W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves
Product Details:
Place of Origin: Hebei Province China
Brand Name: JCX
Certification: CE ISO
Model Number: Highway Guardrail Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 41,999-68,999USD/SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 40'gp container
Delivery Time: about 50-60 working days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: TWO WAVES THREE WAVES HIGHWAYGUARDRAIL FORMING MACHINE GUARD RAIL BENDING MACHINE Electric Voltage: 380V 50Hz 3phases Or Customized
Control System: Famous Brand PLC Control System Raw Material: Galvanized Steel With 2-4mm Thickness
Roller Material: GCr15 Steel Machine Weight: 12.5T
Dimension(l*w*h): About 15M*1.5M*1.6M Machine Framing: 400H Steel
High Light:

W Profile Highway Guardrail Roll Forming Machine

,

Highway Guardrail Roll Forming Machine 380v

W Profile Forming Machine Highway Safety Fence Highway Guardrail Making Machine



Highway guardrail is the main form of semi-rigid guardrail, which is a continuous structure with corrugated steel guardrails spliced to each other and supported by main columns. The role of the vehicle in absorbing energy when it collides is not easy to be crashed, and at the same time, it can play a very good role in protecting the vehicle and the driver and passengers.



Highway guardrail forming machine is a guardrail machine used to produce highway industry, and the finished product is highway guardrail. It is mostly used in safety guardrails on highways, national roads, provincial roads, urban roads, rural roads and other motor vehicle lanes.







1. Description Of Highway Guardrail Forming Machine



Our High Speed Cold Steel Two waves Three Waves Highway Guardrail Roll Forming Machine produce high quality w beam guardrail, one product machine can produce products of a wide rang of specifiations. highway 2 wave and 3 wave guardrail are the most popular.



We are a professional highway guardrail roll forming machine manufacturer, It’s also named Crash guardrail Forming Machine,

highway guardrail roll forming machine steel production line.

Highway guardrail







W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves 0

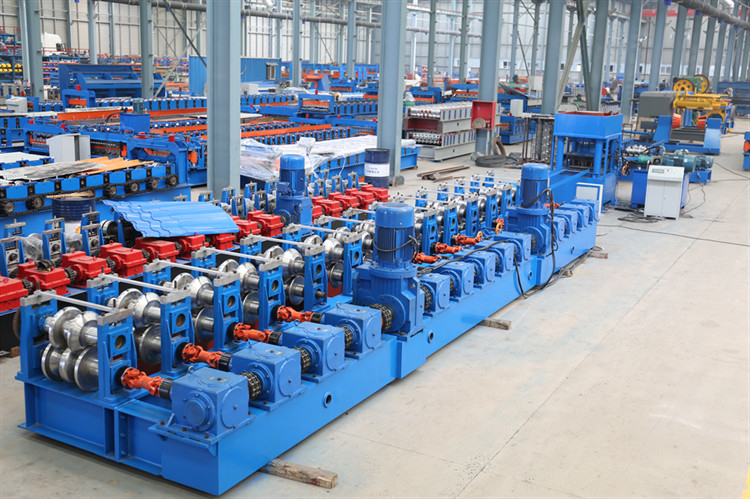

2. Highway guardrail forming machine pictures:

W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves 1W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves 2



3. Technical Details Of Highway Guardrail Roll Forming Machine



Material: Steel Strips
Equipment operation Automatically
Voltage AC380/50Hz or at buyer’s requirement.
Thickness of sheet(mm) Within4mm
Productivity 8-9m/min
Diameter of shaft 95mm

Dimension of main structure(mm)

Theoretical data for design

13500mm*1600mm*2000mm
Weight 24000 KGS
Material of rollers GCR15, quenching and chroming
Total power(kw) 66KW
Power of hydraulic system 22KW
Power of main molding core 22kw+22KW(cycloidal planetary gear speed reducer)





4.Main Components Of Highway Guardrail Roll Forming Machine



Manual Decoiler 1 Set
Feeding Table 1 Set
Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set







5. Production Flows Of Highway Guardrail Roll Forming Machine



Decoiler → feeding table (sheet metal is put by guiding platform) → main forming machine → Hydraulic cutting system → Receiving table







W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves 3







6.Our Highway Guardrail Roll Forming Machine



· More than 10 engineers and More than 10 designers with more than 10 years experience



· We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.



· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.



· We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.



7 Application Of The Highway Guardrail Roll Forming Machine



This machine is widely used in the production of the metal roof sheets and wall panel.



Our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.



W Profile Highway Guardrail Roll Forming Machine 380v 50hz Two Waves Three Waves 4



8. FAQ



Q. Will i receive a good machine ? Same with my wanted ?
A: Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.



Q. What will you do if the machine is broken?

A: We provide 18 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.



Q. What is your payment terms?
A: 1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
2 : We accept 100% L/C at sight
3: We accept Western Union payments.
4: Other payment terms you want to pay, please let me know and i will check and reply you.
