Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Glazed Tile Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Glazed Tile Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	Galvanized Steel Glazed Roll Forming Machine , Glazed Roll Forming Machine 300H Steel

JCX 2022 Year popular sell 828 glazed roof tile roll forming construction machine tile making machinery

1. Glazed steel roll forming machine

Tile making machine is used in building constructions, which can using in roof and wall of Housing Construction ,Villa ,Factory, Warehouse, Theater, Hangar, Gymnasium, Exhibition hall.

2. Technical details of glazed steel roll forming machine

No.	Item 1 customized one	Description
1	Suitable Material	Color steel/Galvanized steel
2	Input Width	914mm
3	Effective width	762/609mm
4	Material Thickness	0.3-0.8mm
5	Forming speed	0-15m/min
6	Roller Stations	12row
7	Frame	300H steel weld
8	Middle plate	14mm
9	Spacer	seamless steel tube processing
10	Material of Roller	45# steel forged
11	Material of Shaft	70mm, 45#steel forged
12	Driven Motor +Hydraulic Station Power	3kw+3kw
13	Voltage	415v/50hz, three phraze
14	Oil Pump	Gear pump
15	Driving Mode	single chain 1 inch
16	Material of Cutter	Cr12
17	Heat treatment	HRC58-60℃
18	Cutting accuracy	±1 mm
19	Weight and size	LWH 6.5m 1.5m 1.6m 3000KGS

3. Main components of glazed steel roll forming machine

No.	Name	Unit	Qty.
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Output table	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

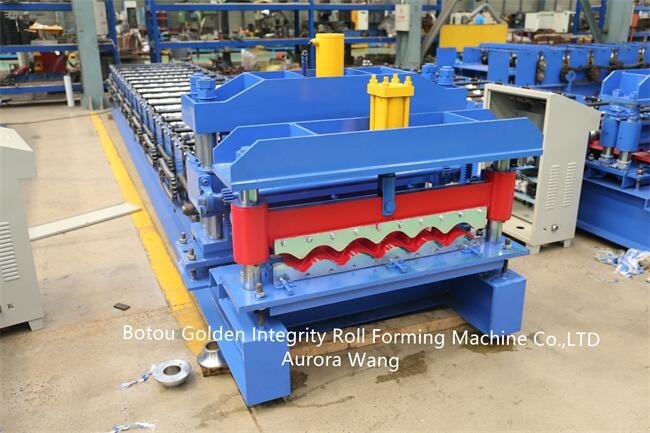

Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

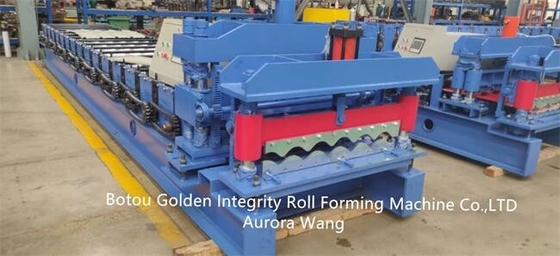

Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame 1

7. Product photo

Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame 2

Galvanized Steel Glazed Roll Forming Machine 300H Steel Weld Frame 3
