Building Material Metal Glazed Tile Machine 5-6m/Min High Speed

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Glazed Tile Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Glazed Tile Roll Forming Machine	After Warranty Service:	Line Support Video
After-sales Service Provided:	Online Support Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	Building Material Metal Glazed Tile Machine , Metal Glazed Tile Machine 6m/Min

JCX 2022 Year Popular Sell Tile Making Machine Construction Building Material Metal Glazed Tile Roll Forming Machinery

1. Glazed steel roll forming machine

Metropole aluminium roof tile roll forming machine is a kind of Metal Roll Forming Machine . Because of its shape is like the metropole , in Nigeria , people call it metropole roll forming machine .
Compared with the IBR roof roll forming machine , it has a hydraulic press part which is used to make the metropole type . For this Roof And Wall Panel Roll Forming Machine , there is a front cutting .
When you want to change the coil , you can cut it directly by the front cutting . To imporve the quality of the machine , we have updated many details of the machine , for example the oil tube .

2. Technical details of glazed steel roll forming machine

Suitable material	Aluminium or PPGI coils
	Thickness:0.5-0.6mm
	Yelid Strength:235-300mpa
Working speed	About 5-6m/min,2880m per shift one day(8 hours)
Step distance	Adjustable according to requirement (>=250mm)
Power Requirement	Main motor power: 5.5 Kw(Depend on final design)
Power Requirement	Hydraulic station power: 5.5Kw(Depend on final design)
Material of forming rollers	No.45 steel, plated with chrome on surface.
Material of cutter,pressing die	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel, Dia. is 72mm.
Control system	Mitsubishi PLC & converter
Machine weight	About 10Tons
Machine's layout size	About 9.5m×1.65m× 1.5m (Depend on final design)

3. Main components of glazed steel roll forming machine

1	Manual decoiler	1 pc (Capacity:5 tons)
2	Guiding Equipment	1 set
3	Covering film device	1 set
4	Roll Forming Equipment	1 set
5	Pressing equipment	1 set
6	Post-cutting Equipment	1 set
7	Hydraulic Station	1 pc
8	PLC Control Panel	1 pc
9	Supporter Table	1 set (Two pieces, 1.5m/piece)
10	Tool Box	1 pc

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

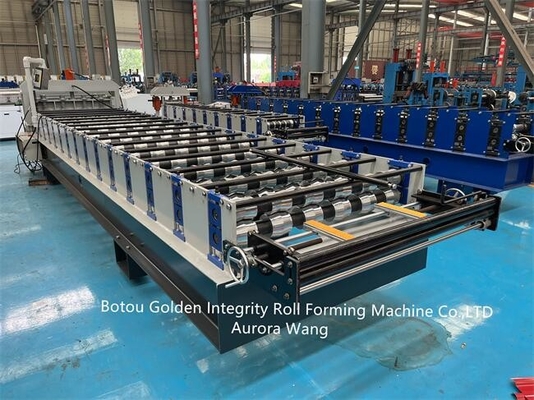

Building Material Metal Glazed Tile Machine 5-6m/Min High Speed 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

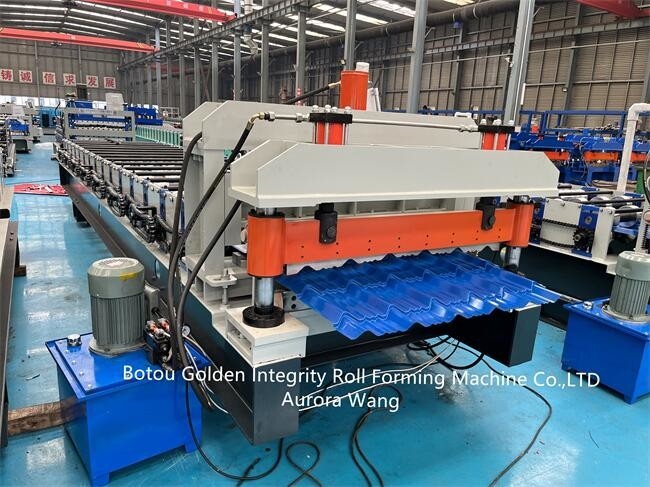

Building Material Metal Glazed Tile Machine 5-6m/Min High Speed 1

7. Product photo

Building Material Metal Glazed Tile Machine 5-6m/Min High Speed 2

Building Material Metal Glazed Tile Machine 5-6m/Min High Speed 3
