JCX Glazed Roof Tile Roll Forming Machine 380v 50hz PPGI GI material

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Glazed Tile Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Glazed Tile Roll Forming Machine
After Warranty Service:	Line Support Video	After-sales Service Provided:	Online Support Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	Glazed Roof Tile Roll Forming Machine 380v , Glazed Roof Tile Roll Forming Machine PPGI

JCX 2022 Year Popular Sell Metal Roof Panel Making Machine Bamboo Glazed Tile Roll Forming Machine With Best Priceice

1. Glazed steel roll forming machine

Bamboo glazed tile machine Glazed 800 tile press floor metal roof tile making forming machine for sale south africa.

Tile making machine is used in building constructions, which can using in roof and wall of Housing Construction ,Villa ,Factory, Warehouse, Theater, Hangar, Gymnasium, Exhibition hall.

2. Technical details of glazed steel roll forming machine

No	TYPE		SPECIFICATION
1	Raw material	material	PPGI GI
		Feeding width	as drawing
		thickness	0.3-0.8mm
2	Decoiler	operate	manual
		weight capacity	5ton
3	Roll forming machine	roller station	12
		Diameter of shaft	80mm
		Roller material	45# with 0.05mm chrome
		Frame	steel sheet welding
		Frame thickness	18mm
		Cutting Material	Cr 12
		Operation	automatic cutting
		Working speed	15-20m/minute
4	Power	Driving way	chain
		Main motor	5.5kw
		Voltage	380v 50hz
5	Control systerm	Electric box	PLC control system, inventer
		PLC brand	delta
		Inverter brand	delta
		Language	chinese and english

3. Main components of glazed steel roll forming machine

1	Manual decoiler	1 pc (Capacity:5 tons)
2	Guiding Equipment	1 set
3	Covering film device	1 set
4	Roll Forming Equipment	1 set
5	Pressing equipment	1 set
6	Post-cutting Equipment	1 set
7	Hydraulic Station	1 pc
8	PLC Control Panel	1 pc
9	Supporter Table	1 set (Two pieces, 1.5m/piece)
10	Tool Box	1 pc

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

JCX Glazed Roof Tile Roll Forming Machine 380v 50hz PPGI GI material 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

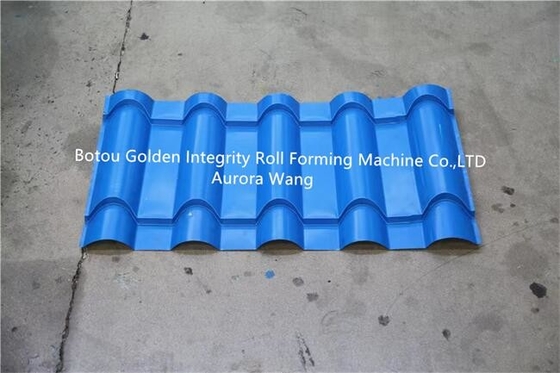

JCX Glazed Roof Tile Roll Forming Machine 380v 50hz PPGI GI material 1

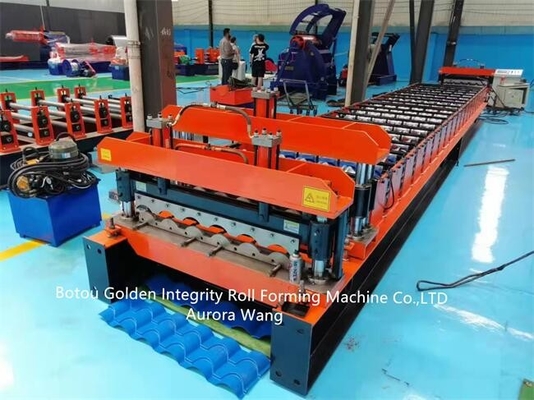

7. Product photo

JCX Glazed Roof Tile Roll Forming Machine 380v 50hz PPGI GI material 2

JCX Glazed Roof Tile Roll Forming Machine 380v 50hz PPGI GI material 3
