15m/Min Glazed Tile Roll Forming Machine 415v Metal Roof Tile Making Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Glazed Tile Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Glazed Tile Roll Forming Machine
After Warranty Service:	Line Support Video	After-sales Service Provided:	Online Support Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	15m/Min Glazed Tile Roll Forming Machine , Glazed Tile Roll Forming Machine 415v , 415v Metal Roof Tile Making Machine

JCX 2022 Year Popular Sell Bamboo Glazed Tile Machine Glazed Tile Press Metal Roof Tile Making Machine With Best Price

1. Glazed steel roll forming machine

The tile press is a machine composed of unwinding, forming, post-forming and cutting. The main components of the tile press include: color steel tile press machine, PLC computer control system, hydraulic pump station system, and automatic post-shearing system . Color profiled steel plate is a profiled plate that adopts color coating steel plate and is rolled and cold-formed into various wave shapes. It is suitable for industrial and civil buildings, warehouse special buildings, and large-span steel structure houses. Wall decoration, etc., has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free. It has been widely promoted and applied.

2. Technical details of glazed steel roll forming machine

No.	Item 1 customized one	Description
1	Suitable Material	Color steel/Galvanized steel
2	Input Width	914mm
3	Effective width	762/609mm
4	Material Thickness	0.3-0.8mm
5	Forming speed	0-15m/min
6	Roller Stations	12row
7	Frame	300H steel weld
8	Middle plate	14mm
9	Spacer	seamless steel tube processing
10	Material of Roller	45# steel forged
11	Material of Shaft	70mm, 45#steel forged
12	Driven Motor +Hydraulic Station Power	3kw+3kw
13	Voltage	415v/50hz, three phraze
14	Oil Pump	Gear pump
15	Driving Mode	single chain 1 inch
16	Material of Cutter	Cr12
17	Heat treatment	HRC58-60℃
18	Cutting accuracy	±1 mm
19	Weight and size	LWH 6.5m 1.5m 1.6m 3000KGS

3. Main components of glazed steel roll forming machine

1	Manual decoiler	1 pc (Capacity:5 tons)
2	Guiding Equipment	1 set
3	Covering film device	1 set
4	Roll Forming Equipment	1 set
5	Pressing equipment	1 set
6	Post-cutting Equipment	1 set
7	Hydraulic Station	1 pc
8	PLC Control Panel	1 pc
9	Supporter Table	1 set (Two pieces, 1.5m/piece)
10	Tool Box	1 pc

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

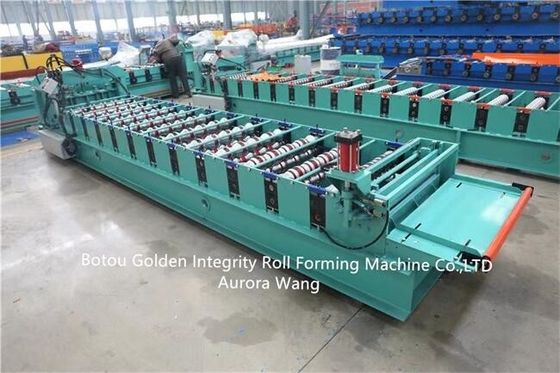

15m/Min Glazed Tile Roll Forming Machine 415v Metal Roof Tile Making Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

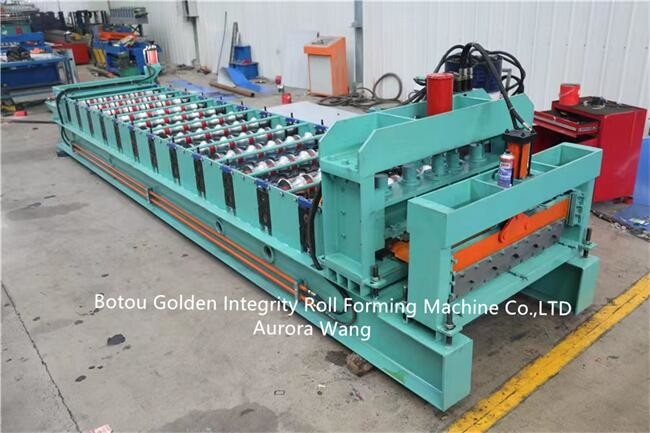

15m/Min Glazed Tile Roll Forming Machine 415v Metal Roof Tile Making Machine 1

7. Product photo

15m/Min Glazed Tile Roll Forming Machine 415v Metal Roof Tile Making Machine 2

15m/Min Glazed Tile Roll Forming Machine 415v Metal Roof Tile Making Machine 3
