Place of Origin: | Hebei |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | Roof ridge cap roll forming machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 8794-USD 11000 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 30-40 work day |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
Supply Ability: | 50 sets/month |
Machine Type: | Tile Forming | Speed: | 15-20m/min |
---|---|---|---|
Voltage: | 380V,50HZ,3 Phase Or As Your Request | Raw Material: | Color Steel Ppgi |
Roller Material: | 45#steel Chrome Plated | Condition: | New |
Weight: | About 3 Tons | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Highlight: | Ppgi Ridge Forming Machine,Ridge Forming Machine 20m/Min |

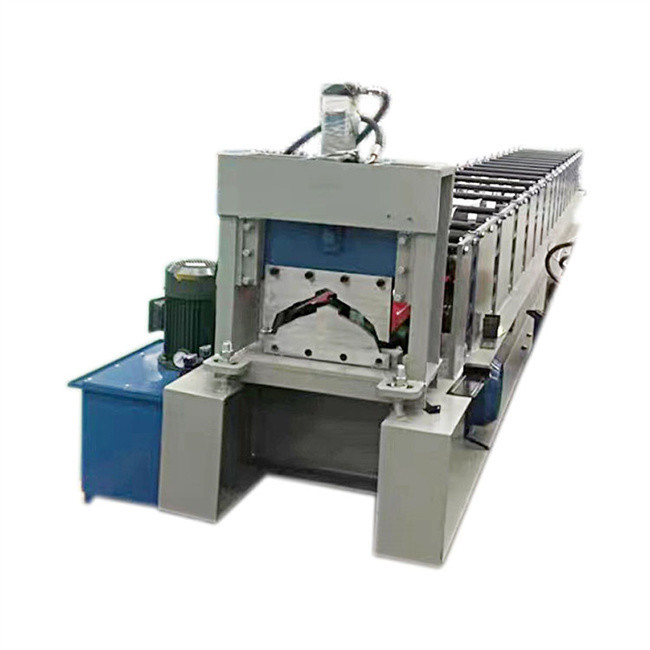

Automatic Color Steel Metal Tile Ridge Cap Roll Forming Machine Used For Roof Panel
Roof Ridge Cap Roll Forming Machine Description
Ridge Caps are metal objects that cap the ridge of the roof. Ridge Caps help to cover the peak of the roof, where the two angles meet. They are important to help keep rain and snow from leaking into the house and through an otherwise penetrable portion of the roof. Ridge Caps are a critical support measure to buttress and fortify your roofing design.
Ridge cap also referred to as ridge rolls or ridge flashings.
Ridge Caps are available in standard style options: 3″, 4″, 5″.
The series of ridge cap roll forming machines are mainly used to make ridge cap roof sheets, ridge cap roof sheets is a critical part of the structure of a roof, ridge cap roof sheets are paced along the peak of a roof to cover where the roof sheets meet, roll top ridge cap roof sheets are rolled product that are made to specific dimensions and cut to requested lengths, we manufacture both standard size ridge cap roof sheets roll forming machine and customized roll forming machine,
Roof Ridge Cap Roll Forming Machine Specification
power | 5.5KW+4kw |
warraty | 1 year |
core selling point |
Long Service Life |
feeding width | 610mm-1220mm |
Roller material | 45# Steel |
Shaft material | 45# Steel |
Cutting bladematerial | Cr12 Frequency |
cutting blade | hydraulic system |
Decoiler | 5 tons |

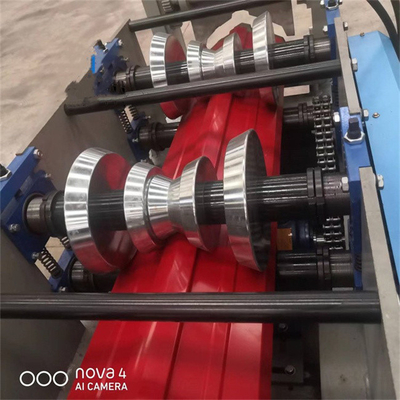

roller steps | 12 rollers |
Keywords | Roof Panel Roll Forming Machine |
weight | 3 tons |
size | 5m*1.5m*1.6m |
material | gi,ppgi,gl,ppgl,color steel |
machine frame | 300 H steel |
profile | Roof Ridge Cap |
Roof Panel Roll Forming Machine Main components
Decolier | 1 set |
Forming part | 1 set |
PLC control system | 1 set |
Cutting system | 1 set |
Hydraulic Station | 1 set |
Out put table | 1 set |
Roof Panel Roll Forming Machine Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
Roof Panel Roll Forming Machine Feature Advantage:
Roof Panel Roll Forming Machine Application
The finished sheet elegant and noble.The sheet widly can used for the roof of garden,factory,hotel,exhibition center and villa,etc.It is widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction
Roof Ridge Cap Roll Forming Machine
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.
