| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | C89 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 8000-13999USD |
| Packaging Details: | 20GP SEA worthy package or pack by wooden box if LCL with other goods |
| Delivery Time: | 30-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 set/year |
| After-sales Service Provided: | SUPPLY Online Technical Support | Roller Material: | DC53 |
|---|---|---|---|
| Shaft Material: | Cr40 Steel | PLC Brand: | Mitsubishi Or Customized As Customer Request |
| Color: | As Customer Customized | Machine Application: | Villa House For Complete House Frame Struture |
| Cutting Type: | Hydraulic Cutting System | ||
| Highlight: | Villa Light Gauge Steel Framing Machine,Light Gauge Steel Framing Machine Cr40 |
||
The light gauge steel structure is able to shape itself to any form and can be clad and insulated with a wide range of materials.
The light gauge steel structure is easy to change or modify this construction at any point in its lifespan.
There is a great range of systems and products catering to this type of construction.
Light gauge steel structures are non-combustible, which is a code requirement for some types of structures. Since steel loses its strength in fire quite easily, it must be protected from fire with fire-rated sheeting.
Light gauge steel structures do not rot, shrink, warp, or decompose like wood structures, and can be used in areas where there is a probability of termite attack.
This Light Gauge Steel Framing Machine is for producing the studs and tracks which are used in light gauge steel structure buildings.
2. Machine picture of Light guage steel framing machine pictures:
|

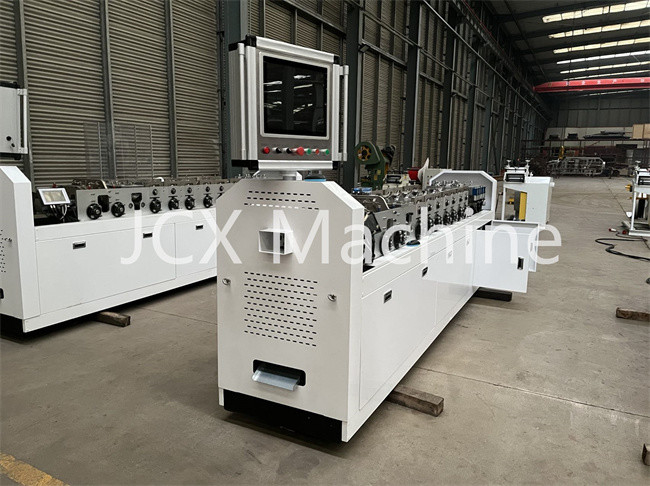

C89 Light Gauge Steel Villa Frame Roll Forming Machine
|
|||
|

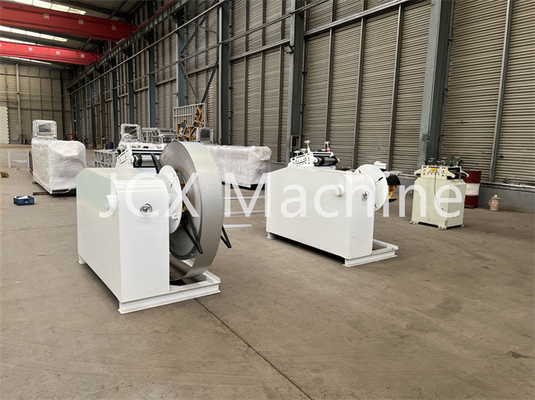

Decoiler
|
double head decoiler
|
Optional hydraulic decoiler
|
|
|
Main forming machine
|
forming steps
|
13 stations(9 sets of spindle roll forming, 4 sets of fine roll forming)
|
|
|
rollers
|
imported material, DC53. CNC center machining, hrc58-62, fine grinding
|
||
|
shafts:
|
40Cr after conditioning processing, fine grinding
|
||
|

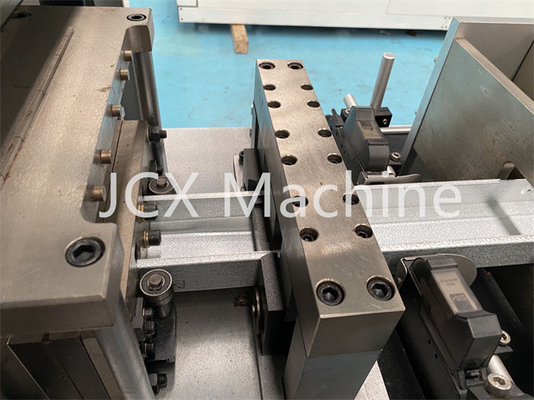

Cutting system
|
Cutter blade
|
Tungsten steel
|
|
|
Control system
|
PLC
|
Panasonic |
|
|
Servo motor
|
INVT,7.5 Kw servo motor,Self-locking function
|
||
|
Touch Screen
|
19 inch touch computer
|
||
|
Power
|
380V, 3Phase, 50Hz or as required
|
||

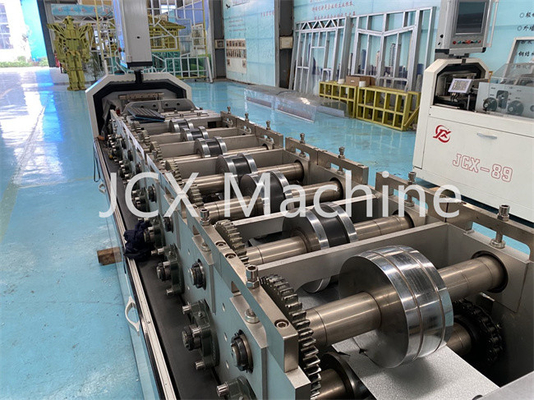

Main forming system. Rollers adopt imported material, DC53. CNC center machining, hrc58-62, fine grinding.
Contact Person: Celina Li
Tel: +8615128751166
