| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Double layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Double Layer Roofing Tile Roll Forming Machine | After-sales Service Provided: | 24 Hours Video Technical Support |
|---|---|---|---|
| Machine Warranty: | 12 Months And Life Long Tracking Service | Machine Color: | Client's Request |
| Control Box Language: | English Or Add Customer Request Language | Control System: | PLC(detla) System Or As Customer Request |
| Export Port: | Tianjin Port Or Other Chinese Port | Need Container: | 1*40 Feet Container |
| Highlight: | IBR Sheet Double Layer Roll Forming Machine,1220mm Double Layer Roll Forming Machine |
||
Blue Full Automatic Roll Forming Machine For IBR Sheet And Corrugated Sheet
1. Double layer roll forming machine
The Double layer roll forming machine can roll forming two different types of roofing sheets, no need to change anything tools. The double layer roll forming machine has two layers. The upper layer and the lower layer. It can roll-forming different sheets. The double layer roll forming machine is the popular and wise choice for both new entrepreneurs and established metal building manufacturers
The double layer forming machine can make two different types of wall and roof panels in one machine, including glazed roof tile, roof/wall panel style.
This design of the double layer roll forming machine could increase your productivity and save space, and save the costs. The machine max roll speed can reach to 45m/min. This is very popular abroad due to its high efficiency. It can work automatically.
2. Technical details of double layer roll forming machine
| 1 | Coil Width | 1220mm max |
| 2 | Rolling Speed | 10-16m/min |
| 3 | Thickness | 0.3-0.8mm |
| 4 | Control System | PLC (Panasonic) |
| 5 | Uncoiler | Manual uncoiler |
| 6 | Pre-cutting | Pre-cutting install after feeding for customer change coil only |
| 7 | Roller Stations |
Up layer: 24stations Down layer: 22 stations |
| 8 | Roller Material | 45# steel with chrome plated surface |
| 9 | Shaft Material | Dia 76mm, material:45#, quenching and tempering, coated with hard chrome |
| 10 | Post cutting | The machine adopts hydraulic cutting system |
| 11 | Material Of Cutting | Cr12 steel, 58-62 HRC |
| 12 | Maim Motor Power | 11 KW |
| 13 | Hydraulic Station Power | 7.5 KW |
| 14 | Hydraulic Pressure | 12-16Mpa adjustable |
| 15 | Structure Of The Stations | Guide pillar |
| 16 | Tolerance | 3m+-1.5mm |
| 17 | Voltage | 380V, 50HZ,3 phase |
| 18 | Drive Method | By gear chain |
3. Main components of double layer roll forming machine
|
Double layer roll forming machine
|
||
|
Name
|
Quantity
|
Units
|
|
5T manual uncoiler (Hydraulic uncoiler)
|
1
|
Set
|
|
Adjustable feeding platform
|
1
|
Set
|
|
Roll forming system
|
1
|
Set
|
|
Plc cut to length
|
1
|
Set
|
|
Hydraulic system
|
1
|
Set
|
|
Delta Electronic Control System
|
1
|
Set
|
|
Supporter/Automatic Stacker
|
1
|
Set
|
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

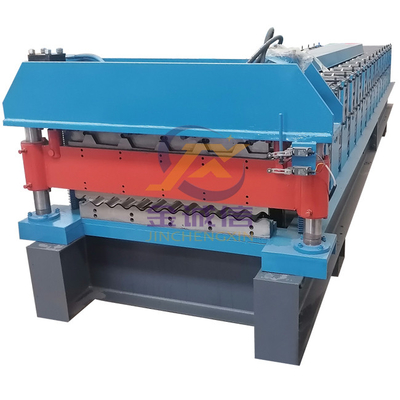

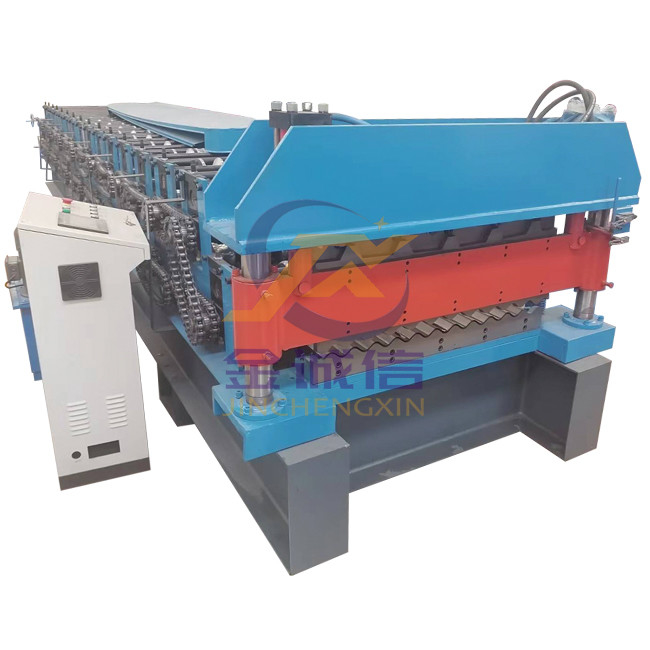

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
