| Place of Origin: | Hebei Province China |
| Brand Name: | JCX |
| Model Number: | South Africa 686&762 double layer roof machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD13,500-USD21,500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp/40feet container |
| Delivery Time: | about 30-35 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 40 SETS PER MONTH |
| Certification: | CE/ISO | Product Name: | South Africa 686&762 Double Layer Roof Machine |
|---|---|---|---|
| Voltage: | 380V Or As Your Request | Control System: | Delta PLC Control System |
| Raw Material: | PPGI, GI, GL, PPGL | Weight: | 4.7T |
| Dimension(l*w*h): | About 7.1M*1.3M*1.2M | Shaft Material: | 45# Steel |
| Export Port: | Tianjin Port As Your Need | PLC Electronic Control System: | Brand : DELTA |
| Main Frame: | 350H Steel Plate Welded | Side Panel Thickness: | 18mm |
| High Light: | Double Layers Roof Panel Roll Forming Machine,762 Roof Panel Roll Forming Machine,double roll forming machine 380V |
||
South Africa 686 and 762 double layers corrugated and IBR roofing sheet roll forming machine
Trapezoidal 686 and Corrugated 762 designs are very popular in South Africa market. It's forming by 925mm or 950mm coil.
Thickness from 0.2-0.7mm.

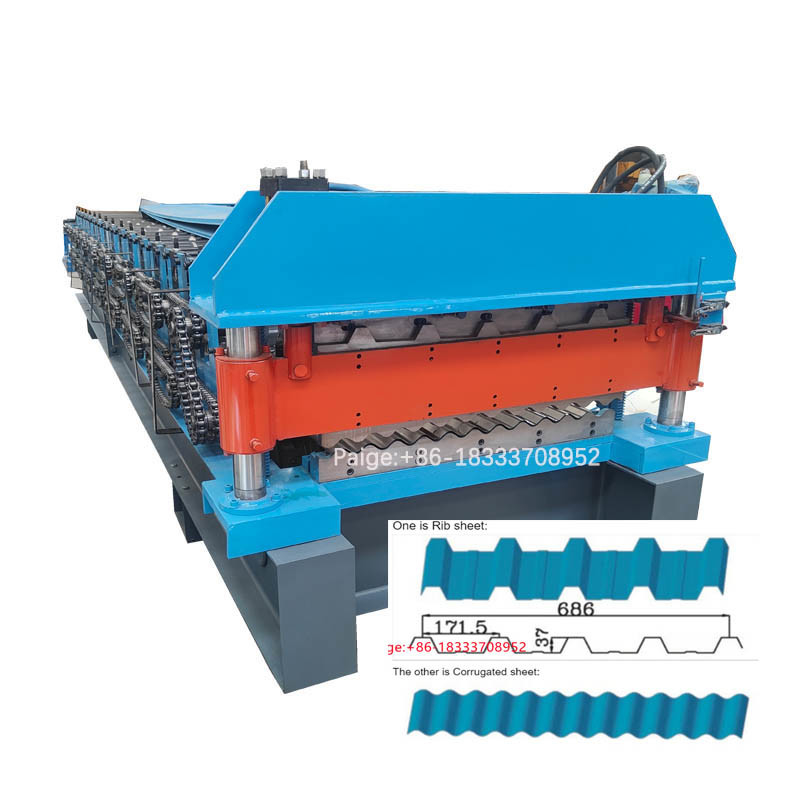

1. Design of South Africa double layer roof sheet machines:

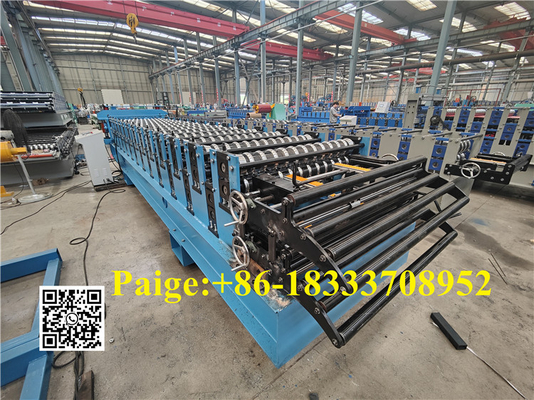

2. Double layer roof machine pictures:
3. Technical Details Of Steel Roof Roll Forming Machine
| No | Item | Parameter |
| 1 | Forming Speed | About 10-18 m/min not including cutting time |
| 2 | Material |
Color steel sheet; galvanized steel sheet, Galvalume sheet, Strength of coil: Q235 |
| 3 | Thickness | 0.3-0.8mm |
| 4 | Forming station | 16+18 stands |
| 5 | Frame | 350H steel , BY blasting |
| 6 | Machine Type | 16-18mm Separate middle plate |
| 7 | Diameter of shaft | 75 mm , 45# steel with grinding process |
| 8 | Rollers | High grade 45# steel with heat treatment and hard chrome coating 0.04-0.05 |
| 9 | Cutting Type | hydraulic cutting. Guide pillars type |
| 10 | Cutting Blade | Cr12MOV with hard treatment, HRC52-68 |
| 11 | Transmission | By chain 1’ single |
| 12 | Control System | Delta PLC,Touch screen, Frequency converter |
| 13 | Measuring accuracy | Precision +/-1.5mm,with frequency converter |
| 14 | Main motor | 5.5kw/7.5kw |
| 15 | Hydraulic station | 4kw |
| 16 | Voltage | 380v,50hz,3p |
| 17 | Safety cover | One set |
| 18 | Machine color | Green or as per customized |
| 19 | Installation Size | About8.5 * 1.7 *1.6M |
| 20 | Weight | About 6,500KGS |
3. Main Components Of Steel Roof Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Roof Panel Roll Forming Machine
Decoiler → feeding table (sheet metal is put by guiding platform) → main forming machine → Hydraulic cutting system → Receiving table
5. Advantages Of Our Cladding Wall Panel Customized Liner Panel Wall Panel Roll Forming Machine
· More than 10 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
· We have professional engineer to check the quality of all parts. we do every step carefully to make sure the quality.
6. Application Of Cladding Wall Panel Customized Liner Panel Wall Panel Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.
7. Product photos Our Cladding Wall Panel Customized Liner Panel Wall Panel Roll Forming Machine
8. FAQ
Q. How long can the machine be built?
Generally the machine takes about 30 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for more than 10 years, and we provide lifetime after-sales service.
