| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Corrugated Sheet Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8,000-USD12,500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-40 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Corrugated Iron Sheet Making Machine Corrugated Steel Panel Roll Forming Machine | After Warranty Service: | Line Support |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support | Warranty: | 12 Months,and Life Long Tracking Service |
| Advantage: | Automatic Operation CNC | Certification: | ISO9001 CE |
| Color: | Client's Request | Control System: | PLC(detla) System |
| Export Port: | Tianjin Port | Need Container: | 1*40 Feet |
| Highlight: | 380v Corrugated Sheet Roll Forming Machine,Corrugated Sheet Roll Forming Machine 18m/Min,18m/Min Corrugated Iron Sheet Making Machine |
||
1.Corrugated steel panel roll forming machine
The corruagted roof panel sheet machine, raw material coil common between 0.3-0.8mm, material most adopt PPGI GI, or GL.
Some market may use 0.18-0.5mm, the thiner. the machie needs more forming stations.

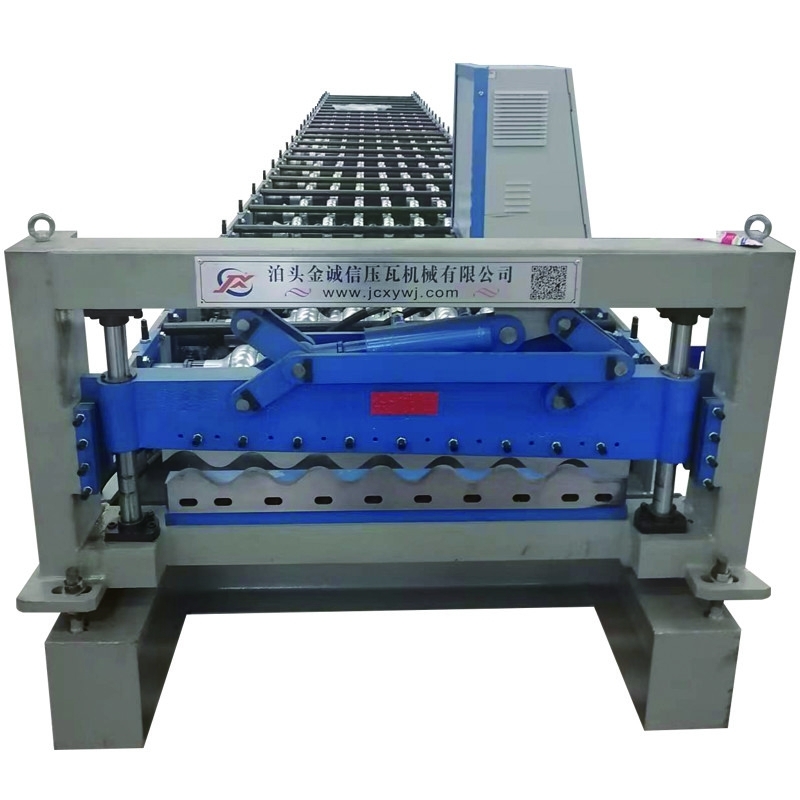

2. Pictures of Corrugated steel panel roll forming machine:
3.Technical details of corrugated sheet roll forming machine
| item | Descrition |
| Decoiler | 5 Ton passive uncoiler |
| Coil width | 900/1250mm |
| Raw Material Thickness | 0.2-0.8mm |
| Type | Corrugated roof sheet Tile Forming Machine |
| Tile Type | Corrugated |
| Use | roof or wall |
| Production Capacity | 10-18 m/min |
| Warranty | 1 Year |
| Key Selling Points | Easy to Operate |
| Rolling thinckness | 0.3-0.8mm |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Bearing, Pump, Gearbox, PLC |
| Shaft material | High Grade Forged 45# Steel with 1st Rough Finishe |
| Material of rollers | High Quality Cr12 Quenched HRC58-62 |
| Roller stations | 13-18 Stations |
| Control system | PLC/INVERTER |
| Voltage | 380v 50Hz, 3 phase |
| size | 6800mm*1600mm*1450mm |
| weight | 4800kg |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Audrey Xing
Tel: +86 15530763231
