| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | barrel forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD15000-USD20000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Product Name: | Barrel Roll Forming Machine | After-sales Service Provided: | Onlin And Oversea |
|---|---|---|---|
| Sheet Max Length: | 8 Meters | Drive: | Gear |
| Thickness: | 0.1mm-0.6mm | Raw Material: | PPGI,Coloe Steel ,GI,PPGL |
| Motor: | 7.5KW | Speed: | Max 12/min |
| Highlight: | G550 Corrugated Sheet Rolling Machine,Corrugated Sheet Rolling Machine 11kw,11kw Corrugated Roll Forming Machine |
||
Full Hard G550 MPA Galvanized Steel Corrugated Barrel Corrugation Roof Sheet Roll Forming Machine
The barrel corrugator roll forming machine is specially designed to corrugate super thin coil sheet(thickness:0.1mm-0.4mm).Different with roll forming machine ,the corrugated machine rolls coil sheet in transversely,which the product width coule be 3-8 meters.
1. Description of corrugated sheet roll forming machine:
The barrel corrugated forming machine is mainly driven by gear,the thickness is 0.1mm-0.6mm,it can produce the thin raw material ,is very popular in all the world.
2. Technical details of corrugated sheet roll forming machinery:
| Auto feeding , raw material width: | 750-1200mm |
| Working speed: | 10-15pcs/min |
| Frame: | 100mm steel welded |
| Power: | 11kw, Driving method: gear and chain, Frequency converter adjust speed |
| Voltage : | as per customized |
| Appearance dimension of machine: | 2.5*5.0m*1.5m |
| Width/coil length: | within 3.2m |
| Steel fixed length shaft: | &340*1 set |
| Forming shaft: | &380*1 set welded |
| Suitable steel thickness: | 0.125mm-0.50mm (no more than 0.6mm at one time), |
| Material : | G550 full hard coil |
| Production: | 2-4tons/h |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
machine solution according to your situation
We have completed production system. We have more than 20 sets of CNC machines which can support the machine rollers quality.
Our sellers have amny rich experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience.
6. Application
This machine is widely used in the production of the roof and wall Construction Material ,ect.

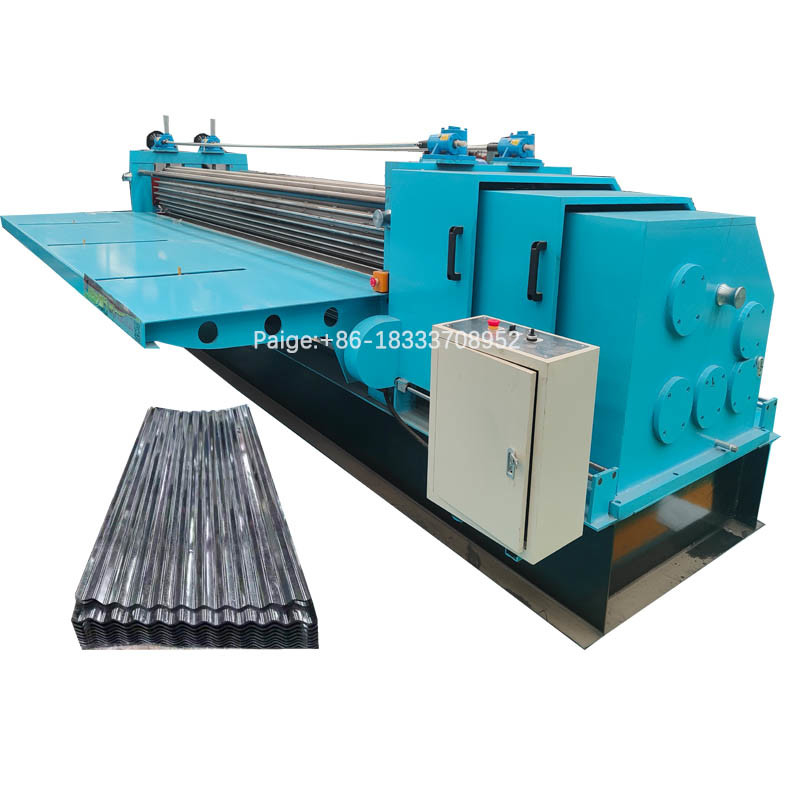

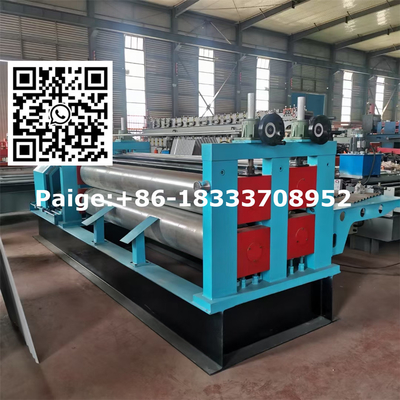

7. Product photo
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer.
Q: Does your company provide installing and training overseas?
A: Yes,we have. Overseas machine install and worker training services are optional
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Welcome to inquiry.
Contact Person: Eileen Sun
Tel: +86 17331704660
