20m/min Corrugated Sheet Roll Forming Machine CE Corrugated Sheet Manufacturing Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Corrugated Sheet Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Corrugated Sheet Roll Forming Machine
After Warranty Service:	Line Support	After-sales Service Provided:	Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	20m/Min Corrugated Sheet Roll Forming Machine , 20m/Min Corrugated Sheet Manufacturing Machine , CE Corrugated Sheet Manufacturing Machine

836/850/988 roof and wall panel roll forming corrugated roof sheet making machine

Name: 20m/min Corrugated Sheet Roll Forming Machine CE Corrugated Sheet Manufacturing Machine
Brand: JCX
SKU: Corrugated Sheet Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.9 (200 reviews)

1.Corrugated sheet roll forming machine

Corrugated roll forming machine popular sell in many countries. Product thickness common between 0.3-0.8mm, material use PPGI or GI.Machine work speed reach 10-20 m/min.

2. Technical details of corrugated sheet roll forming machine

Product Name	Item	Description
Corrugated Sheet Roll Forming Machine	Production Material(mm)	1250×(0.3~1.0)×L, PPGI
	Forming speed	20 m/min
	Number of stations	18 stations
	Roller stations type	Side Wall
	Main motor power	7.5KW
	Power of hydraulic station	3.0KW
	Roller material	high-quality GCr15 forged steel with hard chrome-plated hardware HRC 58-62
	Shaft diameter	76mm
	Shaft material	high-quality steel 45 quenched and tempered after finishing treatment
	Hydraulic station pressure	10~15 Mpa
	Cutter material	Cr12 quenched
	Decoiler	10 Ton Automatic decoiler with loading car
	Electronic controlling system	Full-frequency PLC controlling system, error of cutting length ≤ 2mm
	Stacker	8 meters Auto stacker
	Cutting	Post cutting with hydraulic driving

3.Main components of corrugated sheet roll forming machine

TECHNICAL PARAMETERS FOR CORRUGATED PANEL ROLL FORMING MACHINE
Serial Number	Item	Parameters	Remark
Applicable material	Type	GI/PPGI
	Thickness	0.25-0.6MM
	Yield strength(Mpa)	G245-G550
Main performance parameters	Forming speed(M/MIN)	12-20M/MIN
	Machine size(L×W×H)	91.52	Refer to the machine
	Power supply(KW)	7.5+3.0	Motor and Hydraulic Motor
MACHINE COMPONENTS FOR CORRUGATED PANEL ROLL FORMING MACHINE
Name	Model/name	Quantity	Technical description
1.Decoiling system	Hydraulic decoiler	1 set	Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine	Material Guiding System	1 set	For feeding in a right position no Deviation.
	Precutting Device	1 set	Prevent the profile being unbeautiful because of the rough material.
	Main Roll Forming Machine	1 set	About 22 steps, motor driving and chain transmission. Wall plate structure.
3.Cutting system	Hydraulic Cutting Device		Precutting and postcutting both.
4.Hydraulic system	Hydraulic Station	1 set	Providing the power of cutting.
5.Control system	PLC Control System	1 set	PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
6.Racking system	Exit rack	3 PC	no power.

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

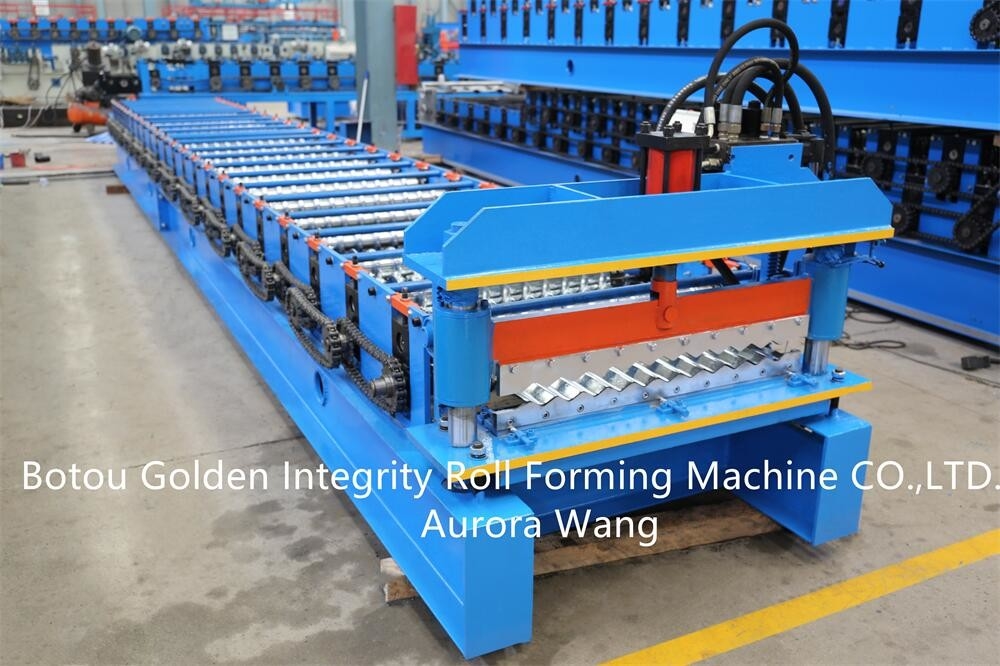

20m/min Corrugated Sheet Roll Forming Machine CE Corrugated Sheet Manufacturing Machine 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

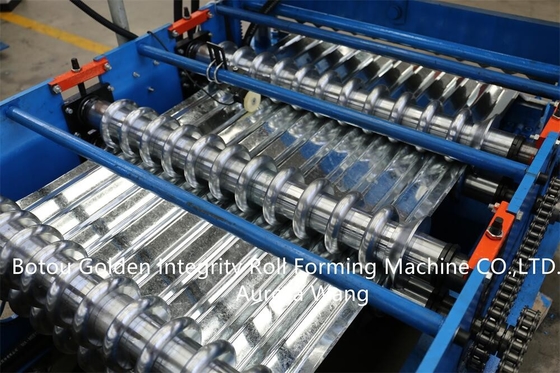

20m/min Corrugated Sheet Roll Forming Machine CE Corrugated Sheet Manufacturing Machine 1

7. Product photo

20m/min Corrugated Sheet Roll Forming Machine CE Corrugated Sheet Manufacturing Machine 2

20m/min Corrugated Sheet Roll Forming Machine CE Corrugated Sheet Manufacturing Machine 3
