| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE |
| Model Number: | roll forming machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 10000 |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Color: | Blue | Voltage: | 50HZ |
|---|---|---|---|
| Weight: | 5ton | After-sales Service Provided: | Overseas Service Center Available |
| Condition: | New | Tile Type: | Colored Steel |
| Use: | Roof/wall | Control System: | PLC |
| Power(w): | 5.5kw | Cutting Blade Material: | Cr12 Mould Steel |
| Type: | Roll Forming Machine | Production Capacity: | 8-12m/min |

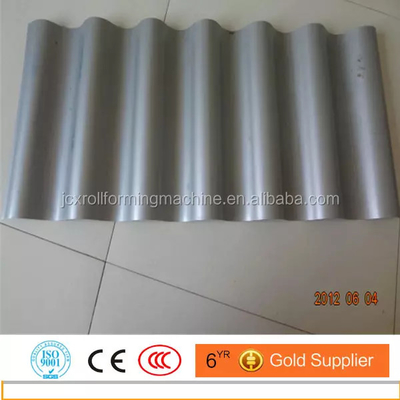

New Corrugated Aluminum Iron Roofing Sheets Making Machine With New Technology
Botou Golden Integrity machinery has been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China. We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Boad panelmachine ,Shutter Door forming machine , Downspout machine, Decorated gusset...
| Place of Origin | Hebei, China (Mainland) |
| Brand Name | JCX |
| Model Number | Color coated roll forming machine |
| Type | Roll Forming Machine |
| Tile Type | Colored Steel |
| Use | Roof |
| Dimensions | 6500*1500*1500mm |
| Large frame | 350H steel |
| Middle plate | 16-20 mm |
| Diameter of roller | 75mm |
| Kind of drive | Driving with 1 inch chain |
| Rolling wheel | Forging 45# steel |
| Main power | 4 kw with reducer |
| Pump station | 4 kw |
| Rolling thickness | 0.3-0.8mm |
| Rolling speed | 10-15m/min |
| Minimum Order Quantity: | 1 Set/Sets nothing |
| Port: | Tianjin new port |
| Packaging Details: | Put it in the container or as the client's order |
| Delivery Time: | 30 days after getting advanced payment |
| Payment Terms: | T/T |
| Supply Ability: | 30 Set/Sets per Month |
| Pump station | 3kw |
| PLC | Panasonnic |
| Transducer | Twiwan"Delta" |
| Encoder | Wuxi's "REP"or "XINYA" |
| Switch | "CHINT" or "DELIXI" |

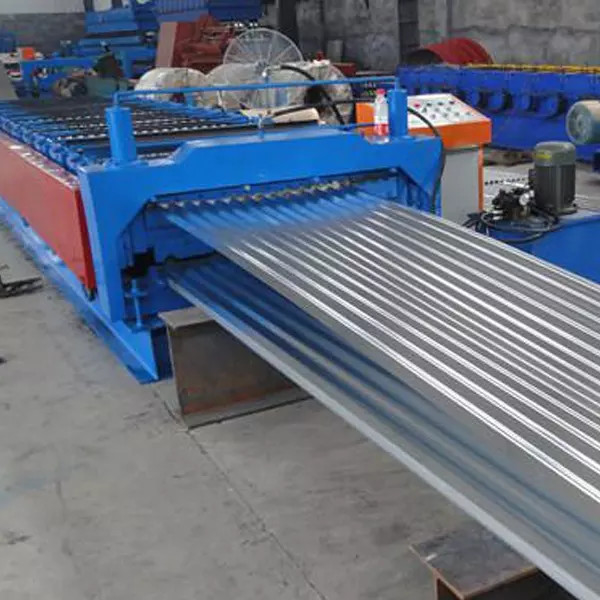

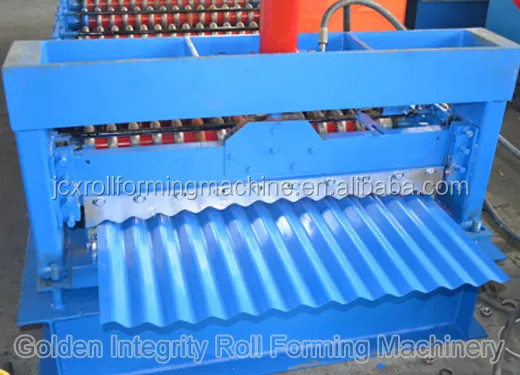

2. some pictures for your reference
Hydraulic system
Spare Parts(Free)
Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details
For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line)
For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing)
For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe
Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
Contact person : Cindy Yin
Mob : +8613931151859 (whatsapp)
skype : zd-cindy
Contact Person: Harry Yang
Tel: 0086 15128741111
