| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE |
| Model Number: | roll forming machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 7000 |
| Delivery Time: | 45days |
| Supply Ability: | 1000 |
| Certification: | CE | Tile Type: | Colored Steel |
|---|---|---|---|
| Use: | Roof,roof /wall Tile | Condition: | New |
| Weight: | 5 Tons | Control System: | PLC |
| Color: | Customized | Thickness: | 0.3-0.7mm |
1" 1 3/4" Standing Seam Metal Snap Lock Roofing Panel Making Roll Forming Machine is used to make unexposed screw roof sheet.

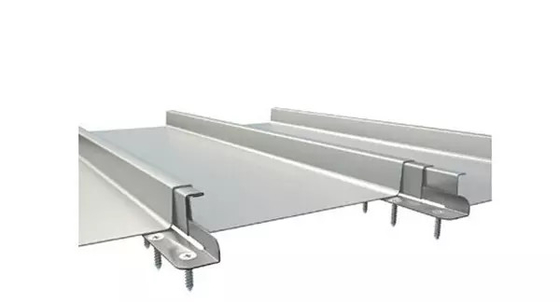

Firstly, the standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then folding or interlocking them. In this way, the seaming or fixing parts are invisible, and therefore sometimes we called the panels concealed fixing panels!
The material thickness varies from 0.4-0.9mm,in some places such as USA,they use copper as raw material. But some other concealed fix standing seam roofing, likebemo roof sheet are thicker from 0.8-1.2mm.
Product Pictures:

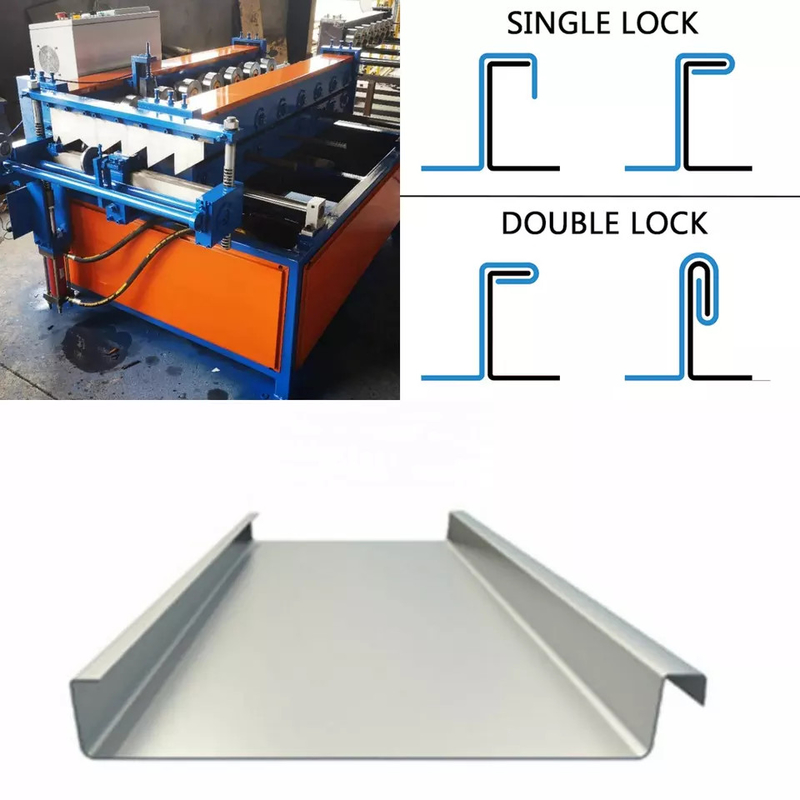

(1" 1 3/4" Standing Seam Metal Snap Lock Roofing Panel Making Roll Forming Machine)
Machine Pictures of 1" 1 3/4" Standing Seam Metal Snap Lock Roofing Panel Making Roll Forming Machine:
Related Accessories:
Auto seaming machine:
other types of machine:
2. Technical Parameters of 1" 1 3/4" Standing Seam Metal Snap Lock Roofing Panel Making Roll Forming Machine:
| Technical Datas clicklock standing seam roof machine | ||
| 1 | Material Width | 290-600mm |
| 2 | Effective Width | 220-530mm |
| 3 | Thickness of Coil | 0.5-0.8mm |
| 4 | Application | standing seam roof panel |
| 5 | Estimated Dimension | 1500mmX1100mmX1200mm |
| 6 | Total Weight | 1.9 Tons |
| 7 | Main Power | 1.5KW |
| 8 | Decoiler | Manual or Hydraulic Decoiler |
| 9 | Inner Diameter | 508mm |
| 10 | Outer Diameter | 600 |
| 11 | Loading Weight | 4-5T |
| 12 | Forming Speed | 0-11m/min |
| 13 | Forming Station | 6 stations |
| 14 | Bracket | Welded with 36 # I-steel |
| 15 | Material of Shaft |
High Grade forged 45# Steel with 1st Rough Finished and then 2th Refined Finished |
| 16 | Diameter of the Roll | 60mm
|
| 17 | Material of Roller |
High Quality Cr12 Quenched HRC58-62 ° |
| 18 | Processing Technology | Rough Processing ---Refined Processing--Hard Chromium Plating. |
| 19 | Material of Rack |
Complete Welded Structure of A3 Steel Plate 20 mm Thickness |
| 20 | Transmission | Chain driving |
| 21 | Material of cutting blade | Cr12 with Quenched Treatment 60-62 ° |
| 22 | Cutting system | Hydraulic Stop or Tracking Cutting |
| 23 | Voltage | 380V/50HZ/3 Phase or as Customer Require |
3. Profiles of 1" 1 3/4" Standing Seam Metal Snap Lock Roofing Panel Making Roll Forming Machine:
Decoiler→Flating→Feeding →Forming→Cut to length→Colletion(finish goods)
3. Curving/Bending Machine of Price of Clip Lock Snap Lock Standing Seam roof sheet making machine roll forming machine:
Package
1). Container packing of the line suitable for overseas shipping
2). The subjects can be loaded in one 20’ container.
3). Package style: Covered by plastic film, spare parts and some small parts packed in carton box.
1. We provide the technical support for whole life of self lock standing seam roof roll forming machine.
2. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
3. When need the technician to go abroad, we will arrange the technician.
Contact Person: Harry Yang
Tel: 0086 15128741111
