| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | roof panel roll forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000-USD15000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Voltage: | 380V 50Hz 3phases | Cutting Blade Material: | Cr12 Quenched |
|---|---|---|---|
| Cutting Method: | Hydraulic | Weight: | 3tons |
| Shaft Material: | No.45 Forged | Power(w): | 9.5KW |
| Warranty: | 12 Months And Life Long Tracking Service | Dimension(l*w*h): | 3600*1200*1200mm |
| Control System: | Delta PLC | Machine Type: | Tile Forming |
Galvalume trapezoidal sheet roll forming machine automatic rib roll forming machine
1. Description of Roof Panel Roll Forming Machine:
This machine is used for roof and wall panel sheet, the sheet raw material thickness is 0.3-0.8mm, the feeding width can different,we can adjustable the width according to your requiment,we can customize the machine to you.
Our machines sold all over the world, Dubai, America, Chile, Peru, Thailand, Philippines, South Africa, Malaysia and so on
2. Technical details of Roof Panel Roll Forming Machine:
| Machine Specifications | |
| Weight | About 3tons |
| Size | About 3600*1200*1200mm(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3mm-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 16 stations |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Roof Panel Roll Forming Machine Production flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· 1.The qualityinspection team has more than 8 years of experience. The department adopts the standard to strictly test the quality of the machine parts, and the machine is also tested after the assembly is completed.
2.we also have construction team.Can save you time and energy.
3.Our machine frame,shaft and rollers raw material all come from China famouse brand
6. Application
This machine is widely used in the production of the roof and wall.

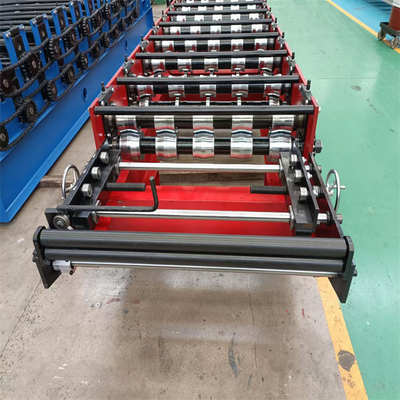

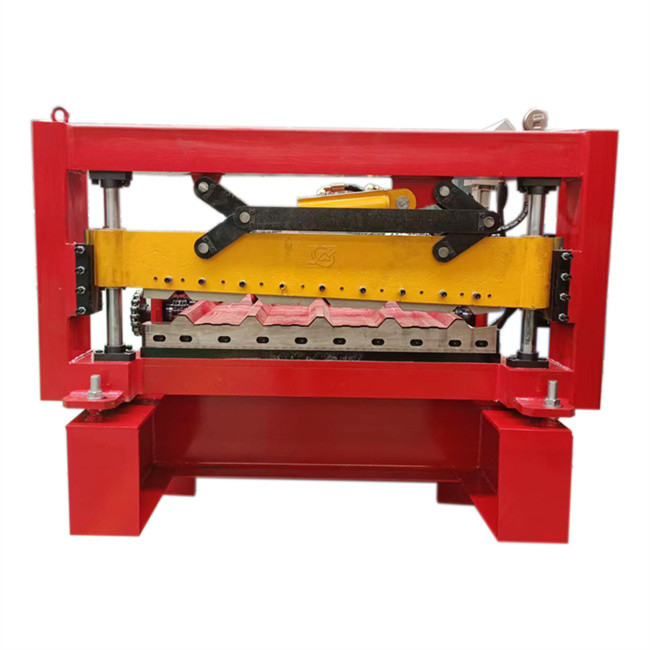

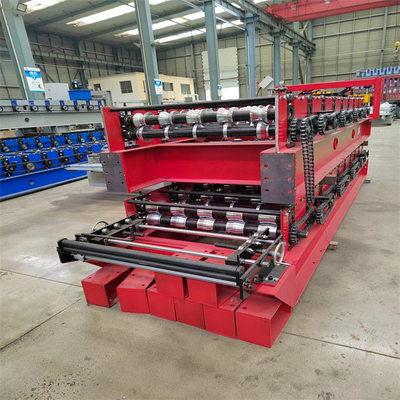

7. Product photo
8. FAQ
Q:Can you customized our profile?
A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q:What is your payment terms?
A:30% as the deposit by T/T in advance,70% T/T as balance after you inspect the machine before shipping.
We also accept 100% L/C at sight
We can accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you.
Q:When will you delivery thye machine after i place the order?
A: After we get down payment,we will arrange production.About 30-45 days for delivery.
Q:What will you do if the machine broken?
A:We provide 12 nonths free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair,we can send the new parts replace the broken parts freely.If it is beyond the warranty period,we can negotiable to solve theproblem,and we supply the technical support for the whole life of the machine
Contact Person: Eileen Sun
Tel: +86 17331704660
