Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE |
Model Number: | Standing Seam Roll Forming Machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD7000-USD8500 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 SETS PER MONTH |
Product Name: | Standing Seam Roll Forming Machine | Condition: | New |
---|---|---|---|
Cutting: | Hydraulic Cutting | Name: | Full Automatic Aluminum Click Lock Staining Seam Roof Panel Roll Forming Machine IN USA |
Usage: | Roofing Panel Building | Power(w): | 2.2KW |
Dimension(l*w*h): | 2.7M* 1.4 M*1.4M | Weight: | 1.2T |
Voltage: | 380V 50Hz 3Phases Or As Your Requirment | Roller Material: | High Grade NO.45 Forged Steel With 0.05mm Hard Chrome Plating |
Cutting Blade Material: | Cr12 With Quenched Treatment | Raw Material: | PPGI/Galvanized Sheet |
Color: | Client's Request |
Full Automatic Aluminum Click Lock Staining seam Roof Panel Roll Forming Machine IN USA

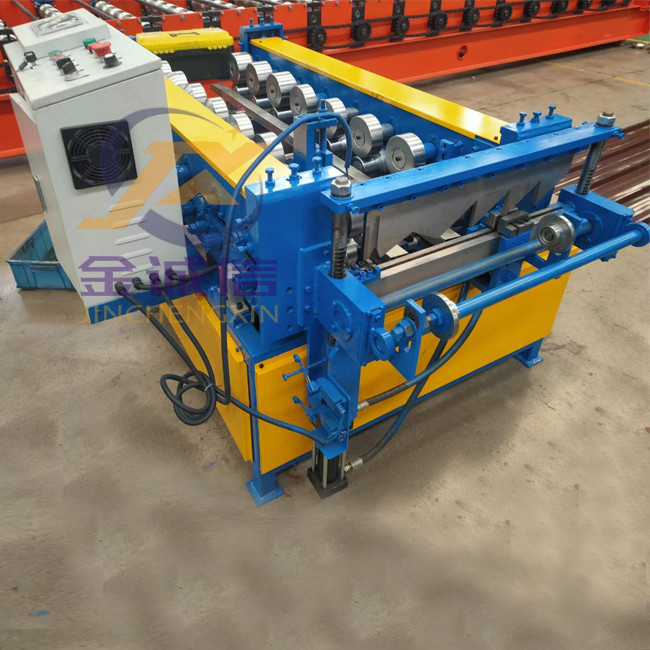

1.Machine Photo
2.Description of Aluminum Click Lock Staining seam Roof Panel Roll Forming Machine:
Snap Lock Standing Seam Roof Panel Roll Forming Machinery manufactures the finest portable standing seam roof panel machine in the industry. With an easy to use and versatile line of panel machines, Snap Lock Standing Seam Roof Panel Roll Forming machines are the go to machine for the serious metal roofing contractor.
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
3.Profile drawing of Aluminum Click Lock Staining seam Roof Panel Roll Forming Machine
4.Workflow of Aluminum Click Lock Staining seam Roof Panel Roll Forming Machine
5. Main components of Aluminum Click Lock Staining seam Roof Panel Roll Forming Machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
6. Technical details of Aluminum Click Lock Staining seam Roof Panel Roll Forming Machine
Machine Specifications | |
Weight | About 1.25tons |
Size | About 2.7mx1.4mx1.4m(length x width x height) |
Color | Main color: blue or as your requirement |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.3-0.8mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 8 |
Diameter of forming rollers shafts | 70mm |
Roll Forming Speed | 15-20m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 2.2kw |
Electric voltage | According to customer’s requirement |
7. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
8. Application

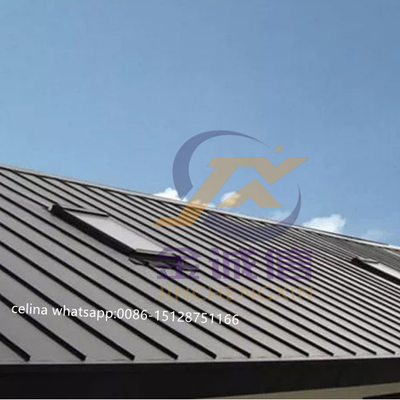

This machine is widely used in the production of the roofing panel building.
9.Certifacation and export country
10. FAQ
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep
your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need
pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for
the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality.
