| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | roof panel roll forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD13000-USD18000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Condition: | New | Tile Type: | Roll Forming Machine/building Material Machinery |
|---|---|---|---|
| Use: | Roof/wall | Product Name: | Roofin Sheet Forming Machine |
| Raw Material: | Galvanized Sheet | Cutting Blade Material: | Cr12 Mould Steel |
| Production Capacity: | 10-15m/min | Weight: | 5ton |
| Highlight: | Color Steel Trapezoidal Roll Forming Machine,Roof Trapezoidal Roll Forming Machine |
||
Color steel trapezoidal roof sheet roll forming machine Fully automatic 0.3-0.8mm
1. Description of roof panel roll forming machine:
Roof panel Roll Forming Machine is designed to produce roof panel sheets,it's popular in all over the world.Roof panel sheet has enjoyed great popularity for use as side cladding or roofing material in commercial, industrial and residential buildings.
Our factory is manufacturing high quality roof panel roll forming machine, and regularly exported to Australia, USA, Thailand, Canada, Colombia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of roof panel roll forming machine:
| Machine Specifications | |
| Weight | About 4.5tons |
| Size | About 5000*800*1200mm(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 15 stations |
| Diameter of forming rollers shafts | 80mm |
| Roll Forming Speed | 3-5m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
1. We will carry out the lap test for the finished sheet . If there is any problem with the quality of the machine, we will solve it in the factory.
2. We record the whole process through video and photos during the we test the lap,when you want to it ,you can check it at any time.
3.We will collect customer feedback regularly,follow local practices and customize problem solutions.
6. Application
This machine is widely used in the production of the roof wall,farm,home decoration industry,agriculture ans animal husbandry and other.

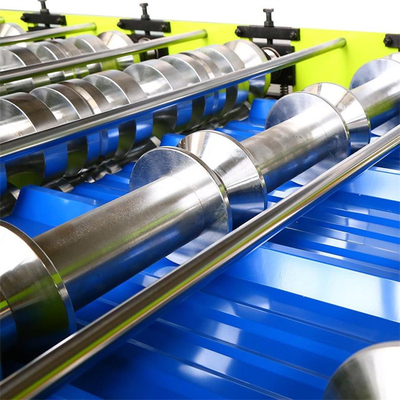

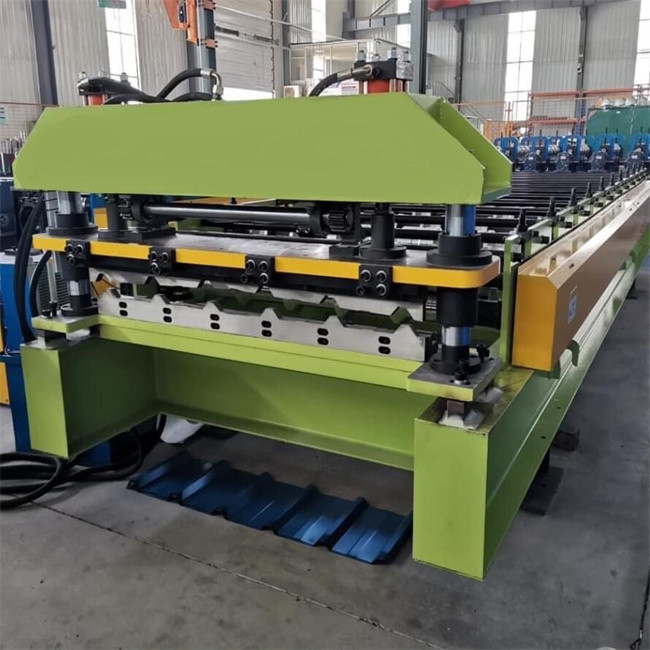

7. Product photo
8. FAQ
Q:Can you customized our profile?
A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q:What is your payment terms?
A:30% as the deposit by T/T in advance,70% T/T as balance after you inspect the machine before shipping.
We also accept 100% L/C at sight
We can accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you.
Q:When will you delivery thye machine after i place the order?
A: After we get down payment,we will arrange production.About 30-45 days for delivery.
Q:What will you do if the machine broken?
A:We provide 12 nonths free warranty and free technical support for the whole life of any machine.
If the broken parts can’t repair,we can send the new parts replace the broken parts freely.If it is beyond the warranty period,we can negotiable to solve theproblem,and we supply the technical support for the whole life of the machine
