| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE |
| Model Number: | Shutter door machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Product Name: | Roofing Sheet Roll Forming Machine | Condition: | New |
|---|---|---|---|
| Dimension(l*w*h): | 1500mm*1500mm*1300mm | Control System: | Delta PLC Control System |
| Color: | Customized | Power(w): | 5.5KW+4kw |
| Cutting Blade Material: | Cr12 With Quenched Treatment | Production Capacity: | 10-15m/min |
Color steel 15-20m/min roof panel roll forming machine fully automatic 0.3-0.8mm
1. Description of roof panel roll forming machine:
Roof panel roll Forming Machine is a roof/wall panel roll forming machine for continuous rolling and cold-forming on color steel sheet. This machine adopts coil steel as the raw material and coil car to feed the coil sheets to the decoiler. Through decoiler, continuous rolling and cold-forming, the raw material are automatically cut to the size and specification required by PLC. We also have stacking ,you don’t need manul to receive the finished sheet.
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of roof panel roll forming machine:
| Machine Specifications | |
| Weight | About 3.5tons |
| Size | About 5.6mx1.2mx1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 13 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
Germany COPRA software design
5 engineers with more than 20 years experience
30 professional technician
20 sets advanced CNC production lines on site
If you without visit our factory ,we can send you video to teach you how to operate the machine
If you need our technician to go to you local factory ,you can arrange board and lodging and other necessary things.
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.

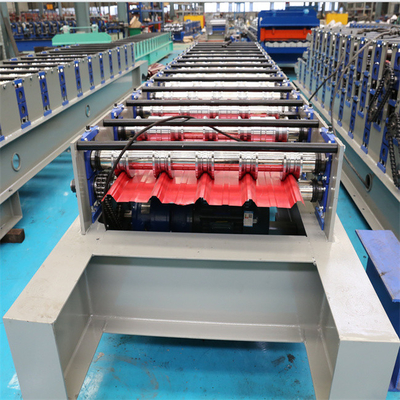

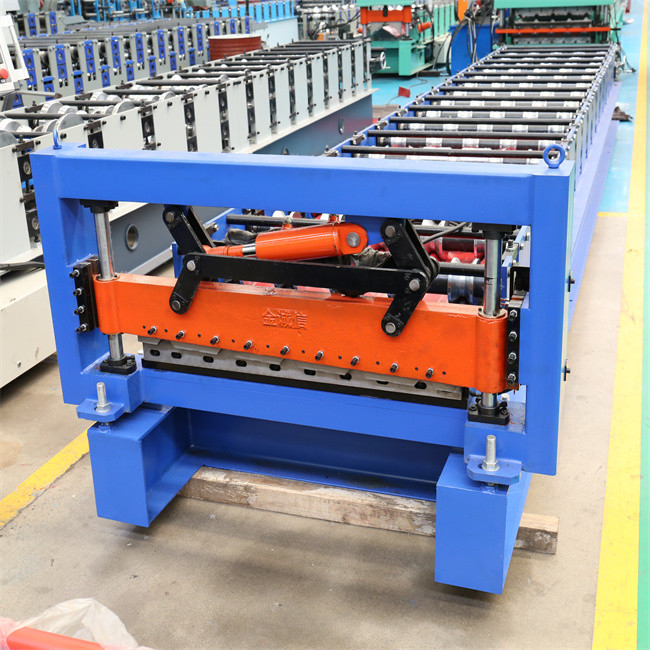

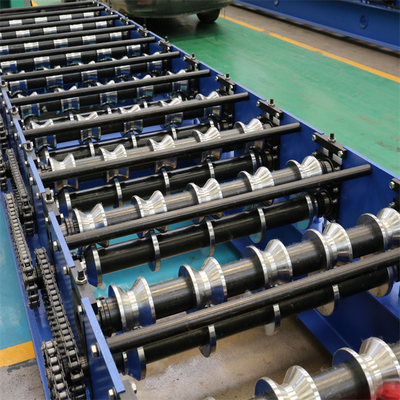

7. Product photo
8. FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
