| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE |
| Model Number: | Shutter door machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 SETS PER MONTH |
| Product: | Trapezoidal Sheet Forming Machine | Machine Type: | Tile Forming |
|---|---|---|---|
| Dimension(l*w*h): | 1500mm*1500mm*1300mm | Control System: | PLC Control |
| Color: | Blue | Weight: | 3.5 Tons |
| Cutting Blade Material: | Cr12 With Quenched Treatment | Machine Capacity: | 10-15m/min |

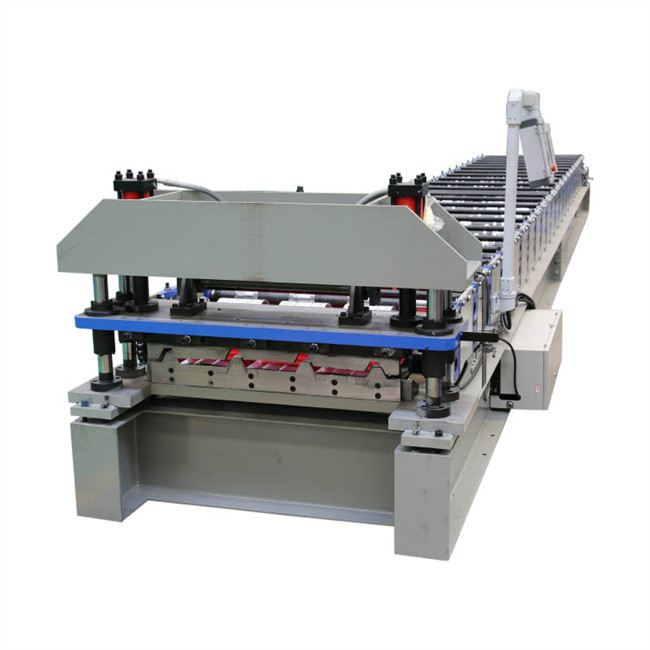

Hydraulic cutting PLC control roof panel roll forming machine 15-20m/min for roof wall
1. Description of roof panel roll forming machine:
Roof panel forming Machine is a mahcine that continuous rolling and cold-forming for steel sheet. The machine operate very simple,you need set the PLC first,the length and how many pieces,then you only need put the raw material on feeding plateform ,and the raw material will roll forming ,and then cutting Fully automatic,and then received the finished sheet..
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of roof panel roll forming machine:
| Machine Specifications | |
| Weight | About 3.5tons |
| Size | About 5.6mx1.2mx1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 13 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of roof panel roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
1. We will test the product overlap when the machine produced the sheet. We can test whether the produced products are standard and whether they can achieve the installation effect expected by customers.
2. we can guarantee the machine for one year
3. we have 24 hours technican support by video call or other method.
4. If you have any proble about the machine ,we will repair it for free in one yaer.
5.We according to your needs customized the most suitable plan.
6. Application
This machine is widely used in the production of the roof wall steel construction and so on.

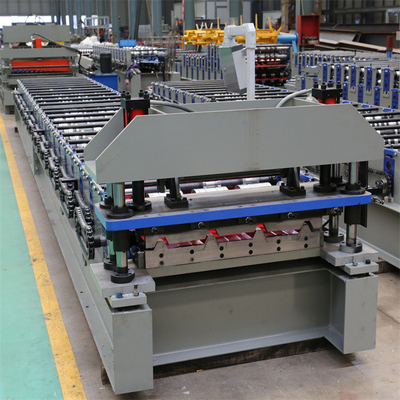

7. Product photo
8. FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 18 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
Contact Person: Eileen Sun
Tel: +86 17331704660
