| Place of Origin: | China |
| Brand Name: | JCX |
| Model Number: | 21*41 and 41*41 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | according to customer profile drawing, we offer the best price for you |
| Packaging Details: | the main machine and PLC and pump are covered with plastic films,the spare parts in carton. |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS roll forming machine |
| Certification: | CE/ISO | After-sales Service Provided: | 24 Hours Online Video Guiding |
|---|---|---|---|
| Type: | Photovoltaic Bracket Roll Forming Machine | Tile Type: | Solar Panel Support Roll Forming Machine |
| Warranty: | 15 Months Guarantee After The Buyer Receive The Machine | Raw Material: | Zinc Magnesium Aluminum, Galvanized Sheet ,black Belt |
| Voltage: | 380V/50HZ 3Phase(or As Customer's Request) | Weight: | 12 Tons |
| Dimension(l*w*h): | 19 M*1.7m*1.5m | ||
| High Light: | 41x41x2mm Roll Forming Machine For Solar Structure,Roll Forming Machine For Solar Structure Photovoltaic |
||
Hydraulic Cutting Photovoltaic bracket Roll Forming Machine Custom Color 41x41x2mm
1. Our Company Introduction
Our machine can produce the Photovoltaic bracket ,roof panel, wall panel ,sandwich panel , floor deck panel, decoration buckles, light-gauge steel joists, shelf columns, door frame parts and other profiled accessories. It has the advantages such as high production efficiency, stable product sizes, less investments, etc.
Company according to the different industry use produce the different profiled accessory roll forming machines. It is widely used in the areas such as construction decorations, doors manufacturing, shelf fabrication, logistics, etc.
our factory is manufacturing high quality storage rack roll forming machines, and exported to the foreign countries such as Lebanon, Iran, Jordan, France, United Kingdom,Australia, Malaysia, Indonesia, Vietnam, Thailand, Russia, Saudi Arabia, Singapore, etc.

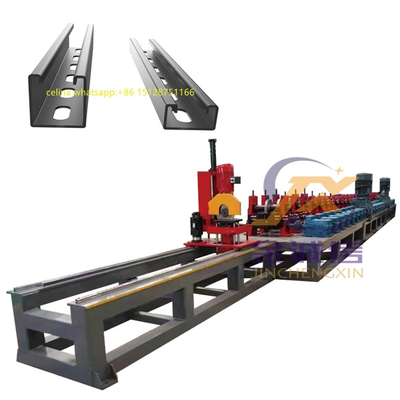

2. Machine picture of solar panel support roll forming machine

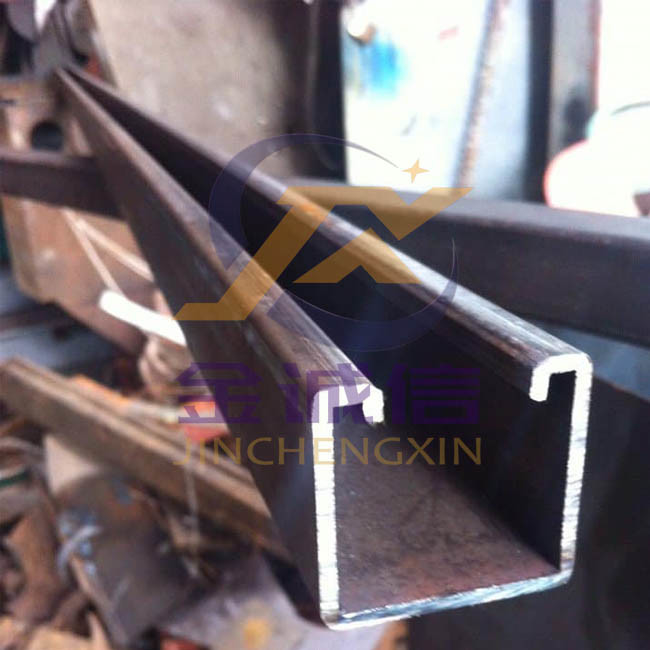

3. Profile drawing of solar panel support roll forming machine
4. Supplying components of complete machine
| NO. | Description | Quantity (set) | Remark |
| 1 | Manual Decoiler 3 Ton | 1 | |
| 2 | Guiding device | 1 | One complete unit as main machine |
| 3 | Forming system | 1 | |
| 4 | Transmission system | 1 | |
| 5 | Flying Saw Cut | 1 | |
| 6 | Support table | 2 | |
| 7 | Hydraulic station | 1 | |
| 8 | Control box | 1 | |
| 9 | Spare parts and tools | 1 | As attaching list |
| 10 | Servo motor punching machine | 1 |
5. Detailed Images of solar panel support roll forming machine
|
Weight |
About 12 tons |
|
Size |
About 15*1.2*1.2m(length x width x height) |
|
Color |
Main color: blue or as your requirement |
|
Warning color: yellow |
|
|
Material |
zinc magnesium aluminum, galvanized sheet ,black belt |
|
Thickness |
2.0 mm |
|
Yield Strength |
235Mpa |
|
Quantity of forming rollers stations |
18 |
|
Diameter of forming rollers shafts |
80mm |
|
Roll Forming Speed |
15-23m/min |
|
Forming rollers material |
No.45 steel, coated with chromed treatment |
|
Cutter material |
Cr12MoV steel, with quenched treatment |
|
Controlling system |
PLC and Converter |
|
Electric Power requirement |
Main motor power: double 15kw hydraulic motor |
|
Electric voltage |
According to customer’s requirement |
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
Contact Person: Celina Li
Tel: +8615128751166
