Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE |
Model Number: | 41*41 21*41 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 45,999-58,999 USD/SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 60 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 SETS PER MONTH |
Thickness: | 1.0mm~2.5mm | Roller Material: | GCr15 Steel, Special Treatment |
---|---|---|---|
Product Name: | PLC Control Automatic Solar Strut Roll Forming Machine | Profile: | 41*41 |
Diameter Of Shaft: | 80 | Main Power: | 30kw |
Name: | Solor Strut Channel Roll Forming Machine C Channel Forming Machine | Cutting: | Hydraulic Cutting,non-stop |
Function: | Multifunctional | ||
High Light: | 41*41 Strut Channel Roll Forming Machine,Strut Channel Roll Forming Machine 30kw,30kw C Channel Roll Forming Machine |

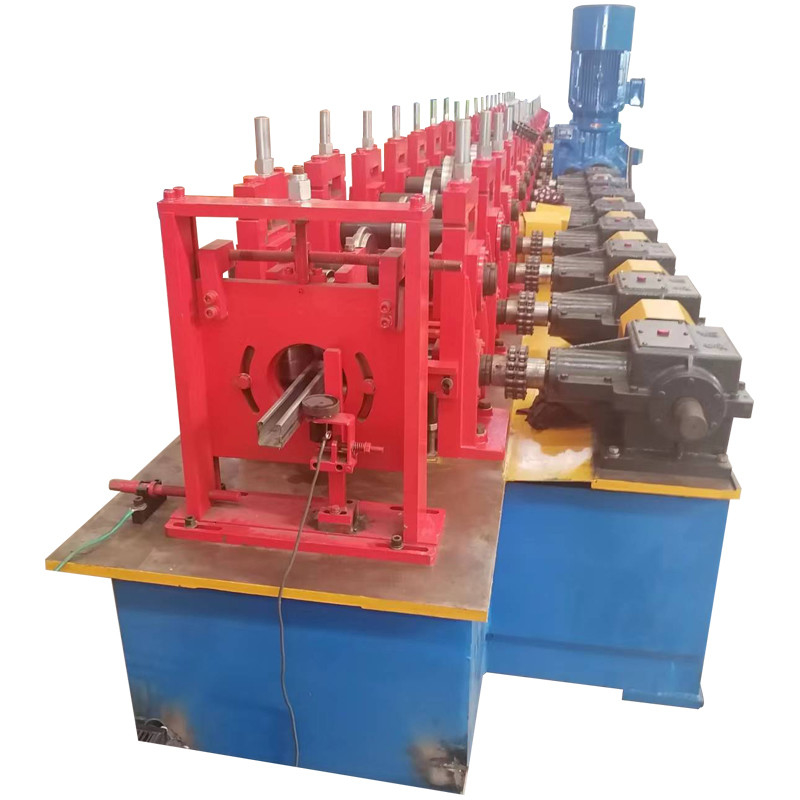

1.Machine photo of Solor Strut Channel Roll Forming Machine C Channel Roll Forming Machine
Photovoltaic mounts are also called solar photovoltaic mounts.
1. Solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in the solar photovoltaic power generation system. The general materials are aluminum alloy, carbon steel and stainless steel.
2. Technical details of solar panel support uni strut C channel roll forming machine:

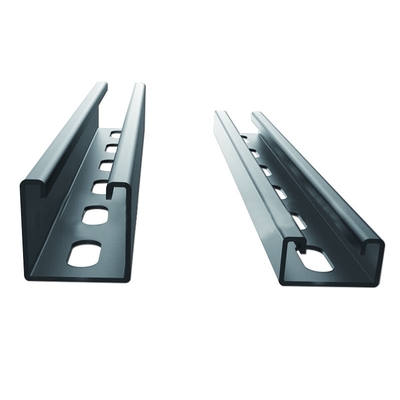

Profiles | 21mm*21mm & 41mm*41mm |
Raw Material | Cold Rolled Steel Coils or Galvanized Steel Coils |
Material Thickness | 1.5mm-2.5mm |
Material Widths | 100mm-180mm |
Leveler | 7 Rollers (3 rollers top & 4 rollers bottom) |
Feeder | Auto Servo Feeder |
Pressing Machine | High-speed pressing machine |
Main Power | 30 KW |
Motors | Siemens motor |
Transmission of gearboxes | 1”double-roller chains |
Cooling/Lubricant system | will be used to keep the rollers in better running condition |
Protective Cover | Safety Covers will be used for both roll formers |
Cutting unit | Hydraulic tracking cutter |
Materials of Cutting Die | Cr12MoVsteel |
orming Stands Structure | Individual forming stands |
Rolling Stations | 18 stations |
Forming Speed | Appr.18m/min. Max. |
Diameter of Shaft | Dia 80mm |
Material of Shaft | 45# steel with tempering treatment |
The material of Roller | Gcr15 Bearing Steel with heating treatment after CNC processing |
Transmission of Machine | Gear-boxes and Unive |
3. Production Flows of solar panel support uni strut C channel roll forming machine
Uncoiling the sheet--Guiding device --Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
4. Main components of solar panel support uni strut C channel roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit- | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
6. After Sale FAQ:
1). Q: How to acquire for service support?
A: JCX-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including before-sale technical counseling, field installation, operate technical training, application solution training, and troubleshooting support, etc.
2). Q: After purchase JCX-Machinery’s machine, what kind of training could JCX-Machinery provide?
A: JCX-Machinery will provide 7 days’ free field training. The training place can be in JCX-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.
3). Q: What kind of warranty do JCX-Machinery’s Roll forming machine provide?
A: Except for the consumables, the whole machine has a one-year limited warranty.
Contact Person: Audrey Xing
Tel: +86 15530763231
