| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | CZ80-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD31000-32500 PER SET |
| Packaging Details: | the main machine and PLC and pump are covered with plastic films,the spare parts in carton. |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS roll forming machine |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Type: | C Plus Z Design Cz Purlin Roll Form Machine | Work Pressure: | 350MPA |
| Use: | C&Z | Tile Type: | Roll Forming Machine |
| Name: | Fast Changed Size CZ Section Purlin Cold | Warranty: | 12 Months |
| Control System: | HMI & PLC Control Panel | Certification: | CE/ISO |
| Raw Material: | PPGI PPGL GI GL | Voltage: | 380V/50HZ 3Phase(as Customer's Request) |
| Weight: | 6.5T |

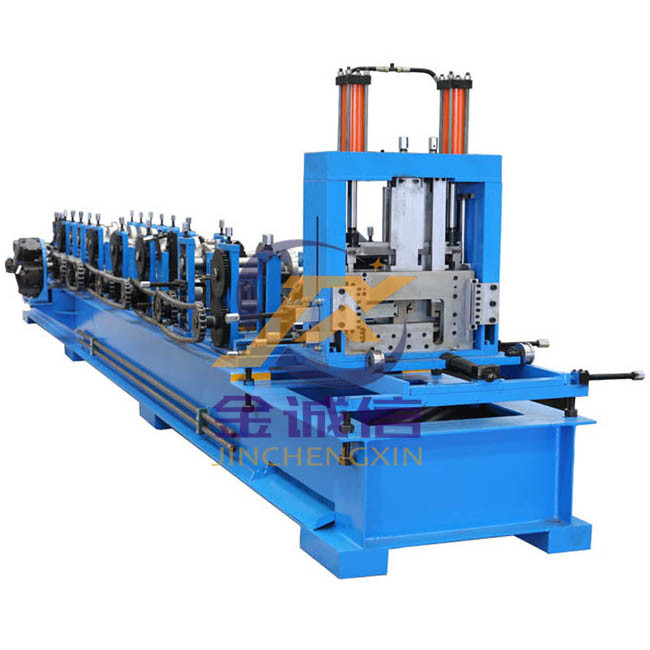

Main Power 22KW C Z Purlin Roll Forming Machine Fast Change High Durability
1. Description of CZ Purlin Roll Forming Machine
Buy two roll forming machines (C Purlin Roll Forming Machine & Z Purlin Roll Forming Machine) is not the ideal solution to contractors or distributiors. As a result, our genius roll forming engineers have pictured out a new type roll forming machine image in their mind.
Finally, our CZ purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.
The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine

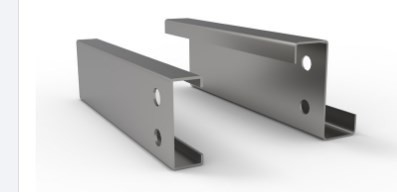

2. Profile drawing of CZ Purlin Roll Forming Machine
3. Workflow of CZ purlin roll forming machine
4.Machine specification of CZ purlin roll forming machine
| Machine Specifications | |
| Weight | About 9.5tons |
| Size | About 10.1*1.2*1.2m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5-3.0 mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-25m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | Cr12MoV steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 22kw hydraulic motor |
| Electric voltage | According to customer’s requirement |
7. Application
The CZ purlin which was produced by CZ purlin roll forming machine can be used for the major stress structure of the large and middle-sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
Contact Person: Celina Li
Tel: +8615128751166
