| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | standing seam roll forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | according to your profile drawing we will offer you the best price |
| Packaging Details: | this machine will be shipped by LCL shipping, the main machine and PLC and pump are covered with plastic films,the spare parts in carton. |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS roll forming machine |
| Type: | Roof Panel Roll Forming Machine | Weight: | 1.22T |
|---|---|---|---|
| Dimension(l*w*h): | 2200*1150*1350mm | Production Capacity: | 10-20 M/min |
| Voltage: | 380V Or 415V Or 440V ,can Be Customized | Control System: | Full Automatic PLC Control |
| Raw Material: | PPGI,GI | Usage: | Civilian House Roof Constructions |
| Warranty: | 15 Months Guarantee For Our Valued Customer | Decoiler: | Manual Decoiler Or Electric Decoiler Can Be Option |
1.Description of Standing Seam Roll Forming Machine:
1" 1 3/4" Standing Seam Metal Snap Lock Roofing Panel Making Roll Forming Machine is used to make unexposed screw roof sheet.
Firstly, the standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then folding or interlocking them. In this way, the seaming or fixing parts are invisible, and therefore sometimes we called the panels concealed fixing panels!
The material thickness varies from 0.4-0.9mm,in some places such as USA,they use copper as raw material. But some other concealed fix standing seam roofing, likebemo roof sheet are thicker from 0.8-1.2mm.
2.Main componets of Standing Seam Roll Forming Machine:
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Main Machine for roll forming | set | 1 |
| 3 | Cutting System | set | 1 |
| 4 | Output Table | set | 1 |
| 5 | Control System(PLC) | set | 1 |
| 6 | hydraulic station | set | 1 |

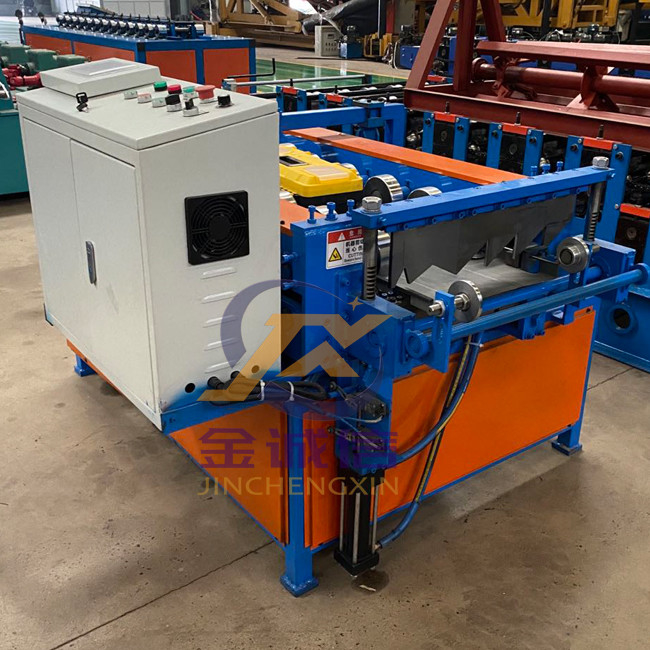

3.Machine picture of Standing Seam Roll Forming Machine:
4.Machine specification of Standing Seam Roll Forming Machine
| Machine Specifications | |
| Weight | About 1.22tons |
| Size | About 2.2*1.15*1.3m(length x width x height) |
| Color | Main color: most is blue, we can also customize the machine color according to your requirement |
| Material | Color Steel Panel |
| Thickness | 0.3-0.7 mm |
| Number of forming rollers stations | 8 |
| Diameter of Shafts | 70mm |
| Machine Production Speed | 10-15m/min |
| Rollers material | high quality #45 steel, coated with chromed treatment |
| Cutter material | Cr12 steel, with quenched treatment |
| Controlling system | PLC control |
| Electric Power requirement | Main motor power: 2.2kw |
5.Our service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
6.Packing and delivery
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(.) Certificate.
Q5. How about the after-sale service?
A5: We provide 15 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
When you arrive our station, we will arrange to pick up you there!
