| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | CZ80-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | according to customer profile drawing, we offer the best price for you |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Key Point: | Interchangeable CZ Purlin Roll Forming Machine, | Produce Name: | CZ Purlin Roll Forming Machine, 25m/Min C Channel Roll Forming Machine |
|---|---|---|---|

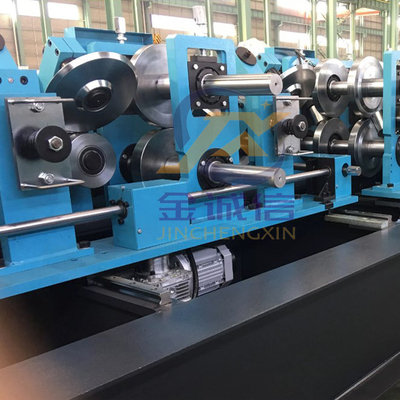

| Machine Speed:: | 8~25m/min (including The Punching And Cutting) | Material Of Shaft: | Cr40 Steel, Tempering And Quenching |
| Type: | Purlin Roll Forming Machine | Roller Material:: | GCr15 Bearing Steel |
| Machine Color: | Blue | Control Box Language: | Chinese And English |

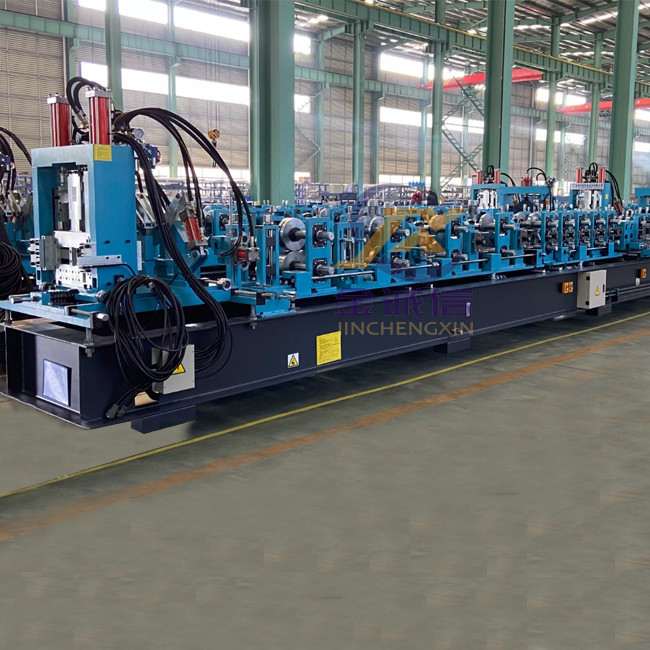

Our c/z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.
The Interchangeable C/Z Purlin Roll Forming Machine can produce C shape and Z shape channels, whose shape and size can be quickly changed by press button.
For steel construction projects, people always use C and Z steel purlins (different web sizes and different flange sizes).
First of all, the traditional c/z Purlin Roll Forming Machine can produce many different sizes of cross-section channels (standard: 6 different sizes, from 80-300mm web size, 50-100mm flange size, 15-20mm The size of the support foot changes), but it needs to be manually changed, and it takes at least 2 hours to change the size each time. Therefore, the traditional c/z steel purlin roll forming machine does not work efficiently.
Due to the appearance of the semi-automatic c/z Purlin Roll Forming Machine, the replacement time is greatly shortened.
Using frequency conversion speed regulation, good production stability. Save time, effort, and effort!

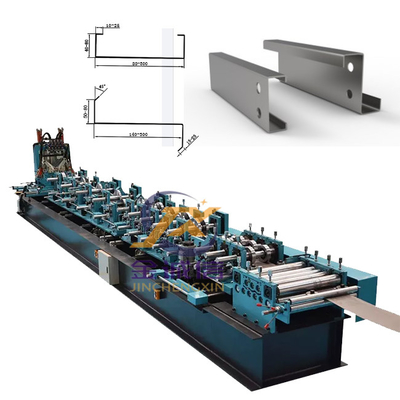

2. Profile drawing of CZ Puriln roll forming machine:
3. Technical details of CZ Purlin roll forming machine:
4. Workflow:
De-coiler→Guide→Pre-Cutting→Roll Forming→Punching hole→Cutting→Receiving
5.Main components of CZ purlin roll forming machine
5.1 3tons Manual Uncoiler: 1 Set
5.2: Main of roll forming machine: 1 Set
5.3: Hydraulic motor station: 1 Set
5.4: Hydraulic Cutting device: 1 Set
5.5: Support table: 1 Set
5.6: PLC control cabinet: 1 Set
6.Main features of interchange cz cold rolled purlins machine
CZ shape purlin is made by using the steel strip as the raw material, after Leveling, Rolling, Punching, Cutting, etc. become the final product.
It can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions.
The roof load bearing and wall panel supporting of the plants,warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
7. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
8. FAQ
1. Does one machine can only produce one style panel profile?
Not exactly.For some making machine. It can produce more kinds of panels by change their rollers.
