| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | roof ridge cover cap roll forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Roof Ridge Cap Roll Forming Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
| Warranty: | 12 Months,and Life Long Tracking Service | Control System: | PLC Control System(brand As Requirement) |
| Weight: | 3.6T | Length And Piece Measure: | Omron Encoder |
| Need Container: | 1*20 Feet | Export Port: | Tianjin Port |
Good Quality Metal Roof Ridge Capping Roll Forming Machine Roof Ridge Cover Tile Making Machine
1. Description of roof ridge cover cap roll forming machine:
Metal Roof Ridge Capping Roll Forming Machine Roof Ridge Cover Tile Making Machine with Good Price is one most popular type of roll forming machines. It makes different shape of color steel ridge cap sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 400mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.
2. Technical details of door shutter roll forming machine:
| 1.Processing material | aluzinc/galvanized steel/colored steel coil |
| 2.Material thickness | 0.25-0.8mm |
| 3.Feeding width: | 370mm |
| 4.Effective width | 288mm |
| 5.Main motor power | 4kw |
| 6.Pump station power | 4kw |
| 7. Shaft diameter | 65mm |
| 8.Forming steps | 15 steps |
| 9.Main frame | 300H Steel frame |
| 10. Side plate thickness | 16mm |
| 11.Roller material | 45# forged steel, with hard chrome plating |
| 12.Control systerm | (Taiwan brand)Delta PLC control system with touch screen |
| 13.Cutting blade material | Cr12 |
| 14.Working speed | About 10-12m/min |
| 15. Transmission way | 1 inch chain drive |
| 16. Machine size (mm) | About 7200*800*1400mm |
| 17. Machine weight | About 2 ton |
| 18.Power supply | 380v,3phase,50hz or accodring to customer request |
3. Main components of door shutter roll forming machine
| No. | Each Part Of The Line | Quantity | Function And Usage |
| 1. | 3 Ton Uncoiler / Decoiler | 1 set | Hold the steel coils and unwind the coils |
| 2. | Ridge Cap Cold Roll Former | 1 set | Roll form the material into required profile |
| 3. | Punching and Cutting Device | 1 set | Punch ribs on formed ridge cap and cut to desired length |
| 4. | Run Out Table | 2 sets | Support ridge cap when it exits the machine |
| 5. | Electric Control Cabinet | 1 set | Highly automatic with PLC control system |
| 6. | Hydraulic Station | 1 set | Hydraulically powered for punching and cutting |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the ridge caps

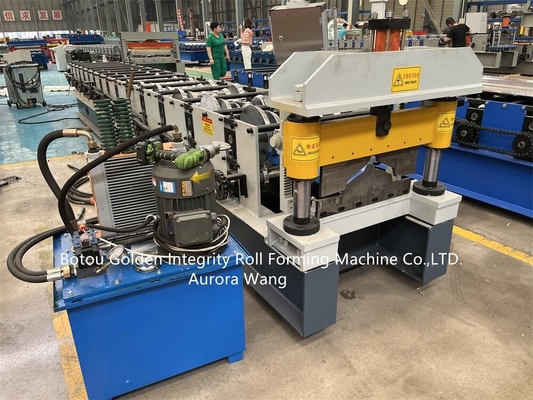

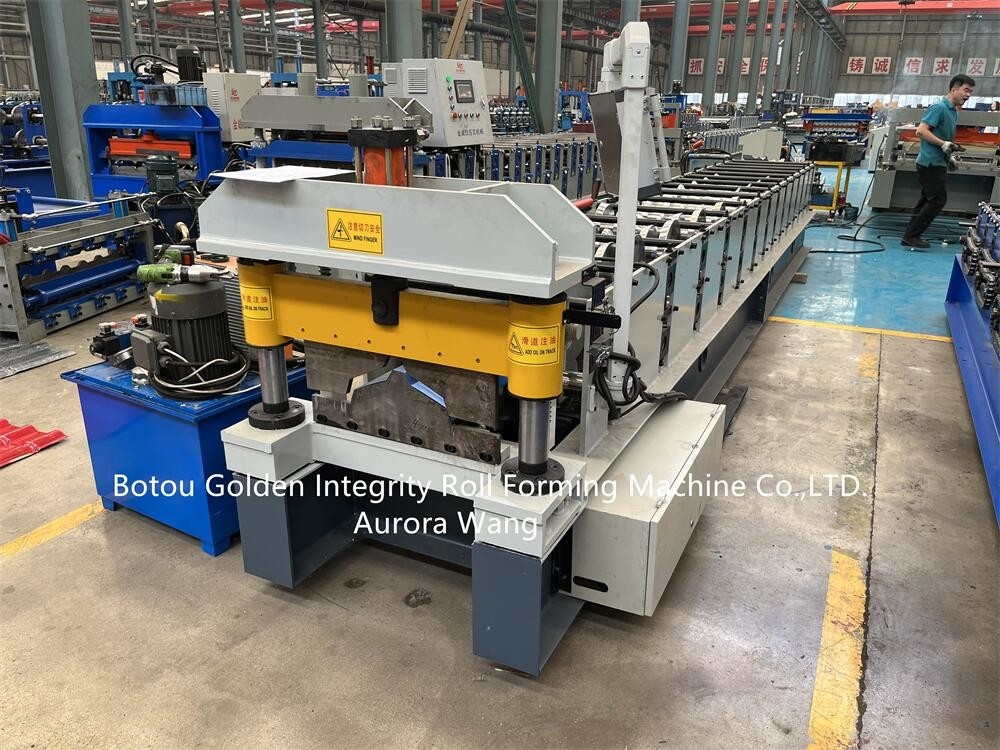

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Harry Yang
Tel: 0086 15128741111
